INDEX
1. BURNER DESCRIPTION . . . . . . . . . . . . . 1
1.1 Burner equipment . . . . . . . . . . . . . . . . . . 1
2. TECHNICAL DATA . . . . . . . . . . . . . . . . . 2
2.1 Technical data . . . . . . . . . . . . . . . . . . . . . 2
2.2 Overall dimensions. . . . . . . . . . . . . . . . . . 2
2.3 Firing rates . . . . . . . . . . . . . . . . . . . . . . . . 2
3. INSTALLATION . . . . . . . . . . . . . . . . . . . . 3
3.1 Boiler fixing . . . . . . . . . . . . . . . . . . . . . . . 3
3.2 Hydraulic systems . . . . . . . . . . . . . . . . . . 4
3.3 Electrical wiring . . . . . . . . . . . . . . . . . . . . 5
4. WORKING . . . . . . . . . . . . . . . . . . . . . . . . 6
4.1 Combustion adjustment . . . . . . . . . . . . . . 6
1.

BURNER DESCRIPTION

One stage light oil burner with low pollutant emissions (Nitric Oxide NOx, Carbon monoxide CO and un-
burnt Hydrocarbons).
The burner meets protection level of IP X0D (IP 40), EN 60529.
Burner with CE marking in conformity with EEC directives: EMC 89/336/EEC, Low Voltage 73/23/EEC,
Machines 98/37/EEC and Efficiency 92/42/EEC.
CE Certification No. : 0036 0245/99 (417T) - 0036 0246/99 (418T), as 92/42/EEC.

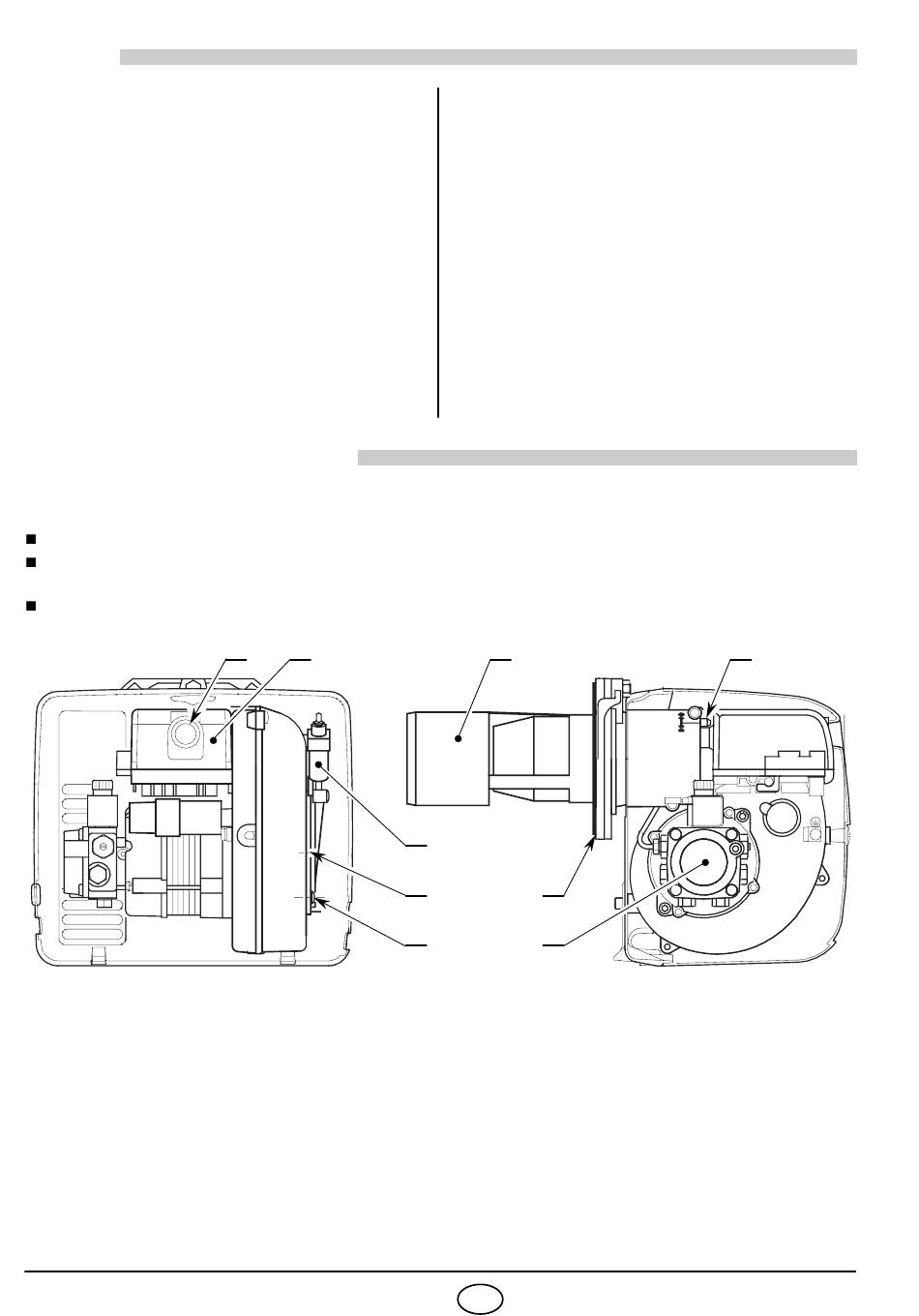

1 - Reset button with lock-out lamp
2 - Control-box
3 - Hydraulic jack with air-damper
4 - Screws fixing air-damper
1.1 BURNER EQUIPMENT
Flange with insulating gasket . . . . .No. 1
Screw and nuts for flange . . . . . . . .No. 1
Cable gland . . . . . . . . . . . . . . . . . . .No. 1
7 pin plug . . . . . . . . . . . . . . . . . . . . .No. 1
2899
1 2 Fig. 1
4.2 Nozzles recomended. . . . . . . . . . . . . . . .
4.3 Maintenance position . . . . . . . . . . . . . . .
4.4 Electrode adjustment . . . . . . . . . . . . . . .
4.5 Combustion head setting. . . . . . . . . . . . .
4.6 Recirculating pipe adjustment . . . . . . . . .
4.7 Pump pressure . . . . . . . . . . . . . . . . . . . .
4.8 Air damper adjustment . . . . . . . . . . . . . .
4.9 Fuel heating . . . . . . . . . . . . . . . . . . . . . .
4.10 Burner start-up cycle. . . . . . . . . . . . . . . .
5. MAINTENANCE . . . . . . . . . . . . . . . . . . .
6. FAULTS / SOLUTIONS . . . . . . . . . . . . . . 10
7
3
4 6
4 5
5 - Oil pump
6 - Flange with insulating gasket

7 - Recirculating pipe

8 - Combustion head adjustment screw
Screw and nuts for flange to be fixed to boiler . . . . No. 4
Flexible oil pipes with nipples . . . . . . . . . . . . . . . . No. 2
Recirculating pipe . . . . . . . . . . . . . . . . . . . . . . . . . No. 1
1 GB
4
8
D6050
6
7
7
7
8
8
8
9
9
9
