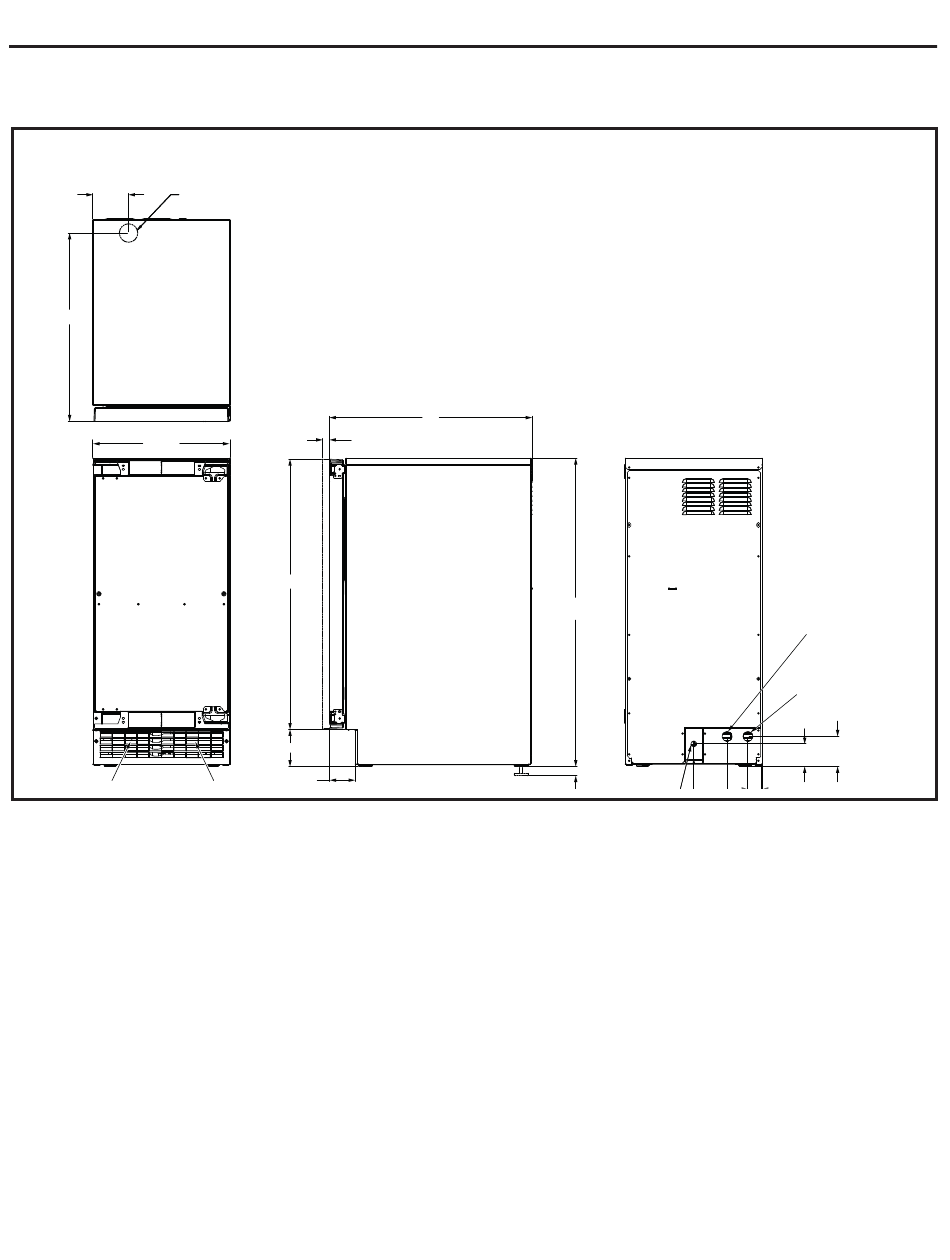

DIMENSIONS

FLOOR DRAIN
3 7/8"
ACCESS HOLE
20 3/8"
14 7/8"
AIR OUT
AIR IN
Installation Instructions
22"
.75 SHEET METAL DOOR FRONT
.63 MIN. CABINET DOOR
29-7/8"
4-3/8"
2 3/4"
33-7/8 "
DRAIN
FLEXIBLE TUBING
5/8" I.D. x 7/8" I.D.
POTABLE WATER INLET
1/4" COMPRESSION FITTING
3 1/4"
2 1/2"
1 1/2"
