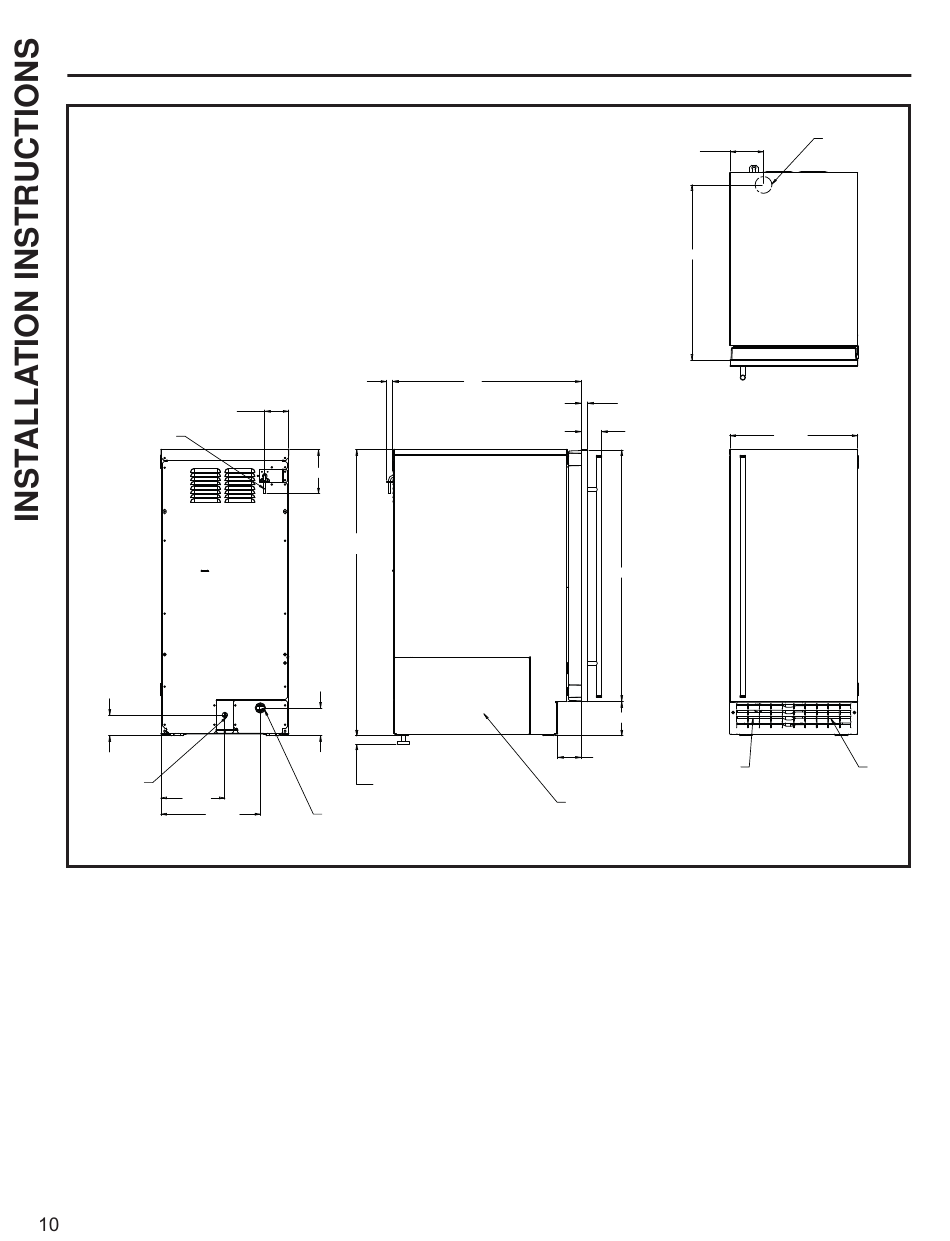

DIMENSIONS

1/4" O.D. COPPER 2 3/4"
WATER INLET
COMPRESSION
FITTING PROVIDED
2 1/2"
115V
POWER CORD
7 1/2"
11 5/8"
Installation Instructions
3/4" 22"
5 1/8"
33 7/8 "
3 1/4"
1" LEG ADJUSTMENT
(4) PLACES
DRAIN ACCESS - FLEXIBLE TUBING
5/8" I.D. x 7/8" O.D.
3 7/8"
20 3/8"
SHEET METAL DOOR FRONT - IF DOOR KIT INSTALLED
3/4"
.63 MIN. CABINET DOOR
DOOR KIT
2 3/8"
AND HANDLE
29-1/8"
4-1/4"
2-3/4"
AIR OUT
LEFT SIDE SVC.
ACCESS PANEL
FLOOR DRAIN
ACCESS HOLE
14-7/8"
AIR IN
