10. USING THE POWER ANALYZER AS A
VOLTMETER
In this measuring method, either the total voltage of a multi-cell battery pack or the
voltages of each individual cell within a 6-cell battery pack can be measured and
displayed. The battery is connected to the balancer connection of the Power Analyzer.
If the total voltage of the battery is above 7.2 V, it will be sufficient to only connect
the battery's balancer connection to the Power Analyzer. If the voltage of the battery
to be measured is below 7.2 V, additional operating voltage of 7.2 – 60 V must be
supplied via the "POWER SOURCE" connection (see figure 6, item 5).

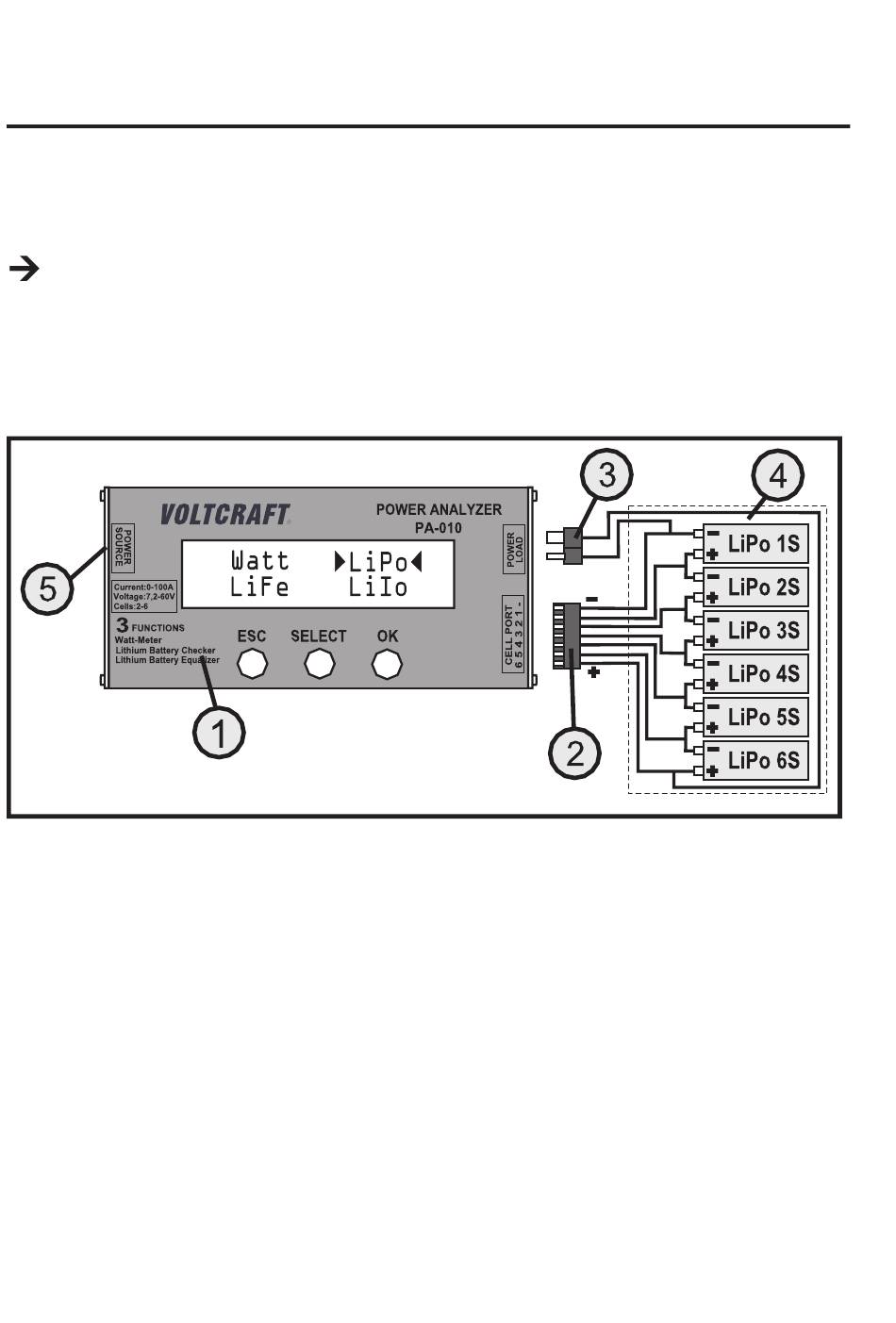

Connection patterns for voltage measurement:
1. Power Analyzer
2. Balancer plug
3. High-current plug
4. Drive battery (6S1P)
5. T-connection socket ("POWER SOURCE")
Figure 6
