2. Connect to earth system:
Using Lead-out Cable G6270 remove 5cm (2") of plastic coating from one end
of the cable and attach to the green terminal on the energizer. Attach the cable
to the earth system by removing 10cm (4") of insulation from the cable at each
Earth Stake, then clamp the exposed wire to each stake using an Earth Clamp
G8760. Tighten the clamp.
For maximum performance from your energizer, the earth (ground) system must
be correctly installed. Use 3 galvanised earth pegs (G619). Earth pegs, at least 2
metres (6½ft) long, should be spaced 3 metres (10ft) apart.
3. Connect the fence
Connect energizer's red terminal to the fence using Lead-out Cable G6270:
remove 5cm (2") of plastic coating from one end of the cable and attach to the
red terminal on the energizer. Attach the other end of
the cable to the fence using a Joint Clamp G6030.

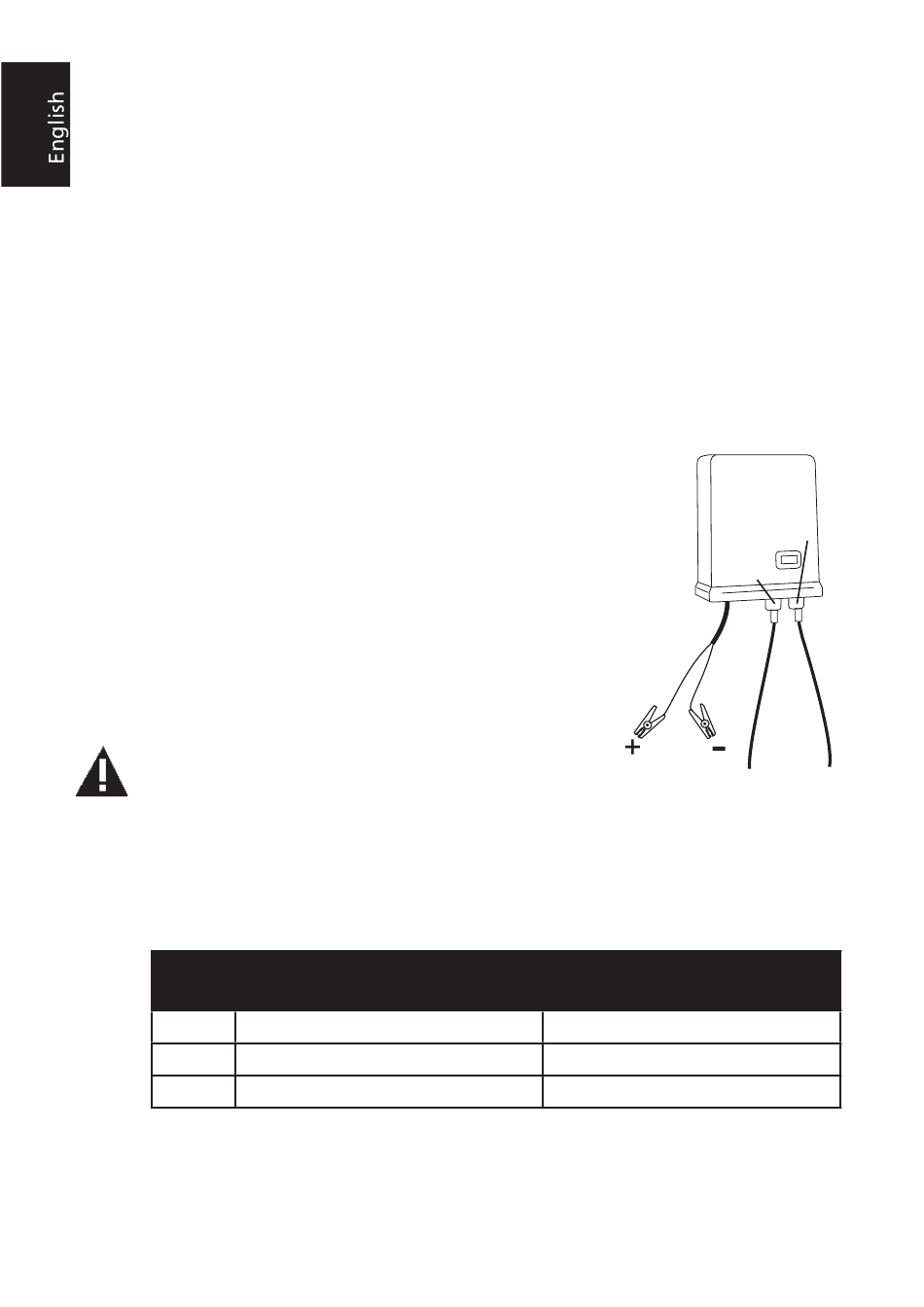

4. Connect the battery
Connect the battery leads from the energizer to the
battery: red lead to the (+) terminal of battery, black
lead to the (-) terminal of battery. Use external 12V
deep cycle lead acid rechargeable battery. Do not use
non-rechargeable batteries.
During charging, place lead acid batteries in a well-
ventilated area.
WARNING:
When battery is flat (voltage drops to approx. 11.5V), the energizer slows to half
speed to conserve power.
Use external 12V deep cycle rechargeable battery (marine type).
Battery life (using one fully charged 12v 60 ampere hour battery)
B75
B160
B260
For Solar Systems test the battery every 12 months because rechargeable batteries
can lose storage capacity over time.
10
For B75, this turns the energizer on.
High Power/Standard Pulse
(Days)
34
15
10
Green
To battery
To earth
Low Power/Maximum
Save mode (Days)
-
50
30
Red
To fence
