3-10 USING THE POWER FEEDER
UNIT ON A JOINTER PLANER
EN

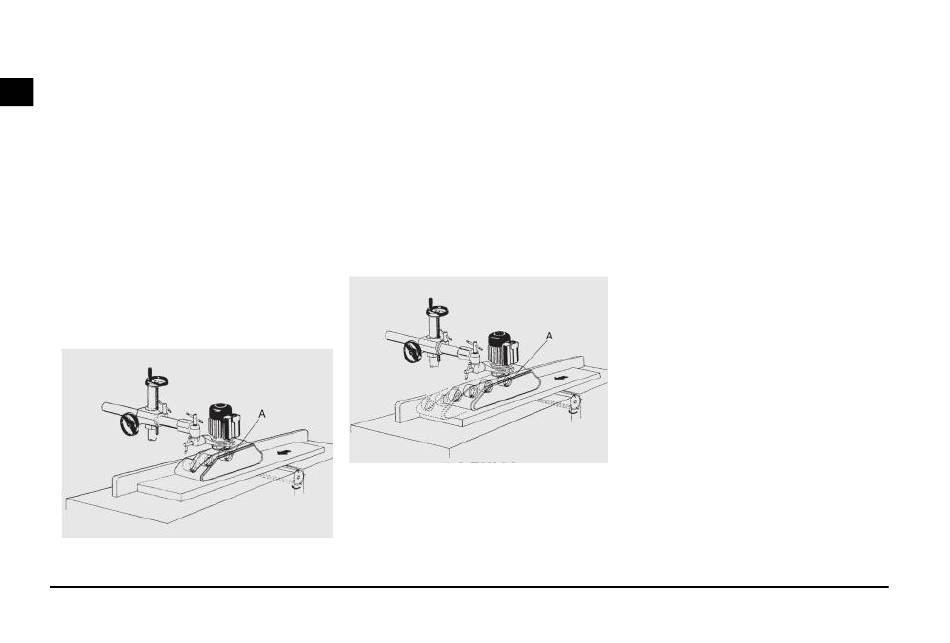

3-rollers power feeder unit
(STEFF 2034 - 2038 - 2038CI)
all the rollers must act on the outgoing
side of the planer. The entry roller (A)
must be approximately 5-6 cm from
the workstand opening.
The pressure of the rollers on the
piece to be machined must be as light
as possible.
STEFF 2034 - 2038 - 2038CI
48
4/6-rollers power feeder unit
(STEFF 2044 - 2048 - 2068)
all the rollers must act on the outgoing
side of the planer. The entry roller (A)
must be approximately 5-6 cm from
the workstand opening.
The pressure of the rollers on the
piece to be machined must be as light
as possible.
STEFF 2044 - 2048 - 2068
Fig.21
Fig.22
