Installation

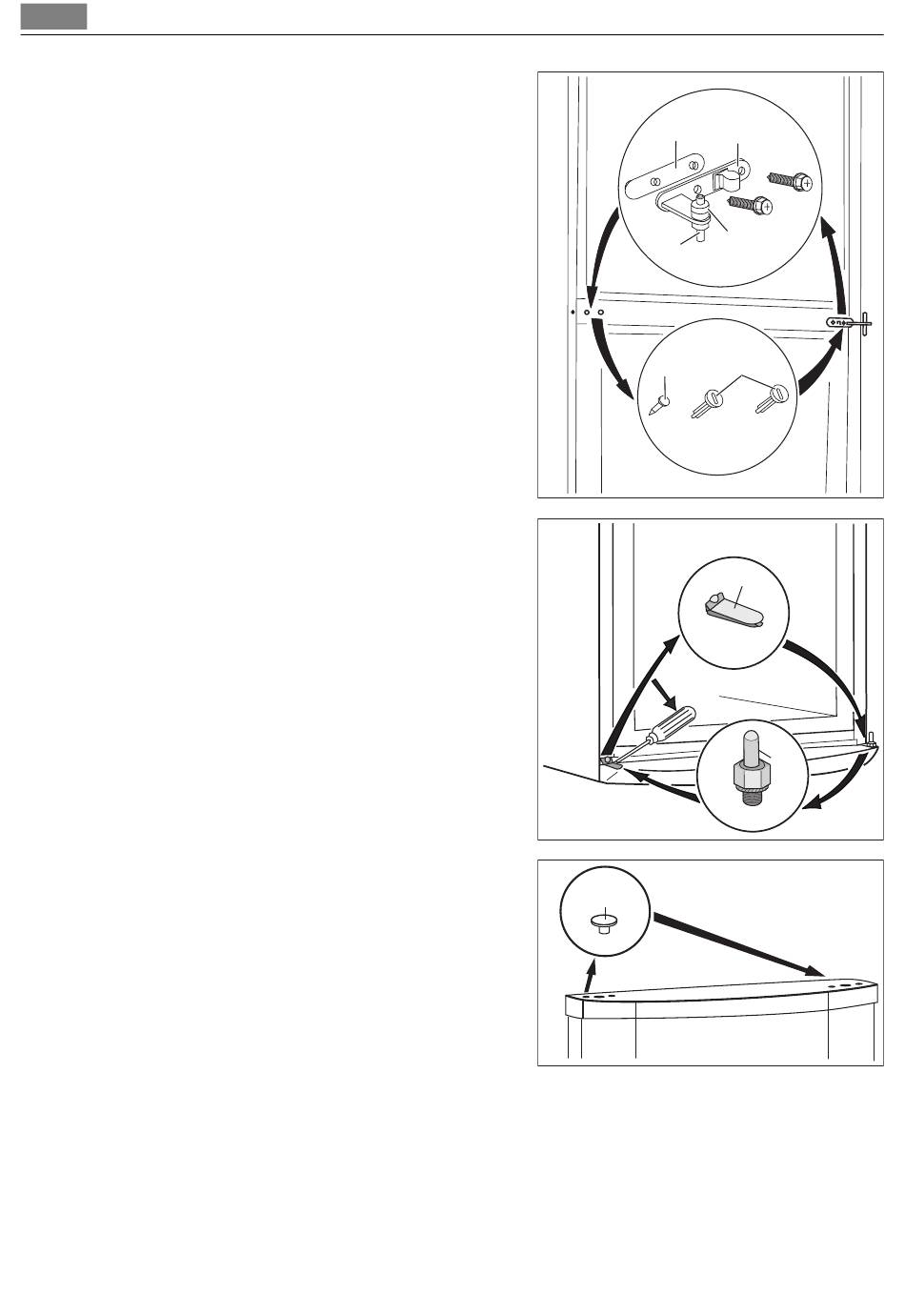

1. Open the doors. Unscrew the middle
hinge (m2). Remove the plastic spacer
(m1).
2. Remove the spacer (m6) and move to the
other side of the hinge pivot (m5).
3. Remove the doors.
4. Remove the left-hand cover pin of the
middle hinge (m3,m4) and move to the
other side.
5. Fit the pin of the middle hinge (m5) into
the left-hand hole of the lower door.
6. Remove using a tool the cover (b1). Un-
screw the lower hinge pivot (b2) and the
spacer (b3) and place them on the op-
posite side.
7. Re-insert the cover (b1) on the opposite
side.
8. Remove the plugs (t1) on the upper side
of both doors and move them to the
other side.
9. Re-insert the lower door on the lower
hinge pivot (b2).
10. Insert the middle hinge (m2) into the left
drill of the lower door.
m1
m2
m6
m5
m4
m3
b1
b3
1
b2
