I N S T A L L A T I O N I N S T R U C T I O N S
Instructions d´installation
Instrucciones de instalación
Istruzioni di installazione
Installatie-instructies
Installationsanleitung
Instruções de Instalação
SSBU
SSMU
Universal Interface Brackets
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
SSBU/SSMU
Publicité
Manuels Connexes pour CHIEF SSBU
Sommaire des Matières pour CHIEF SSBU

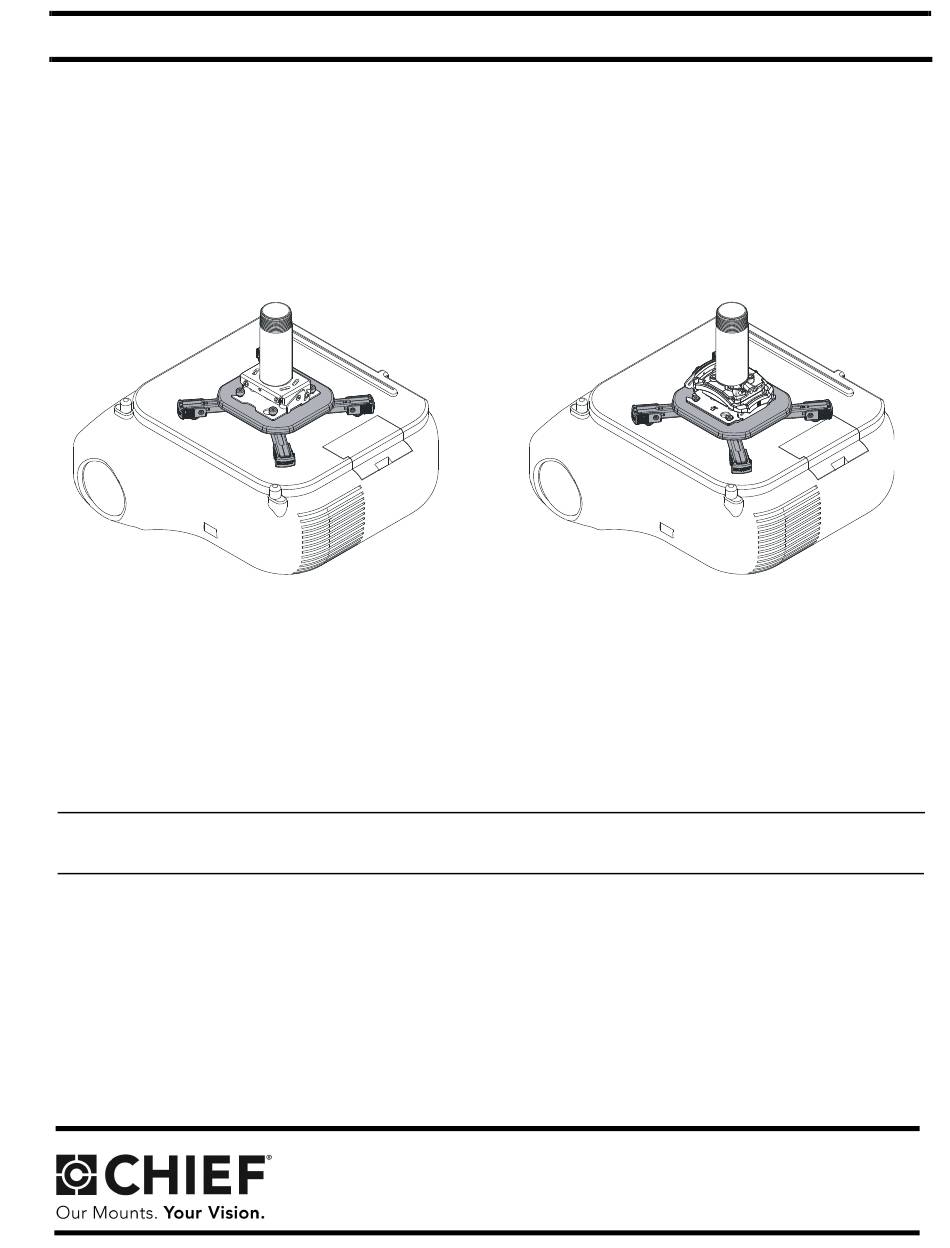

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instructions d´installation Instrucciones de instalación Istruzioni di installazione Installatie-instructies Installationsanleitung Instruções de Instalação SSBU SSMU Universal Interface Brackets Spanish Product Description German Product Description Portuguese Product Description Italian Product Description...
- Page 2 Chief® is a registered trademark of Milestone AV Technologies. All rights reserved. AVISO: Si no se proporciona la resistencia estructural adecuada para este componente, podrían provocarse graves daños personales o materiales.
- Page 3 È responsabilità dell'installatore verificare che il peso totale di tutti i componenti montati sul SSBU/SSMU non superi 11.34 kg (25 lb). ADVERTÊNCIA: Se não ler, compreender completamente e seguir todas as instruções podem ocorrer graves lesões pessoais, danos no equipamento e a garantia de fábrica...
- Page 4 ADVERTISSEMENT: Dépasser la capacité pondérale peut correspondantes. entraîner des blessures corporelles graves ou endommager l'équipement. Il incombe à l'installateur de s'assurer que le poids combiné de tous les composants attachés à SSBU/ SSMU n'est pas supérieur à 11.34 kg (25 lb). DIMENSIONS 369.4 117.4...
- Page 5 Installation Instructions SSBU/SSMU LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación...
- Page 6 E (2) F (4) T (1) R (4) 10-24 x 1/4" 8-32 x 3/8" S (4) 1/4" [SSBU Only] [SSBU Only] 1/4-20 [Universal Hardware Kit - Long Screws] H (1) G (4) 5/16-18 x 1/2" 10-24 x 3/8" [SSBU Only]...
- Page 7 Remove Screw Adapters from SSBU/SSMU Legs NOTE: Only use washers (R) if using L or M screws to attach Press locking buttons on SSBU/SSMU leg (C) firmly and simultaneously push clip cover toward enclosed sliding stud screw adapters to projector.
- Page 8 Make sure arm latch clips are in the unlocked position. Position sliding stud mount brackets and screws so that SSBU or SSMU main plate (A) can be evenly mounted to legs. (See Figure 6) and (See Figure 7) Secure SSBU/SSMU main plate to SSBU/SSMU legs by (C) x 3 or 4 installing 1/4-20"...
- Page 9 Cable ties (not included) may be used instead of the security screws. Thread cable tie through both holes on On SSBU, partially install four thumb nuts (D) to SSBU main leg and secure cable tie. plate screws. (See Figure 8)
- Page 10 SSBU/SSMU Installation Instructions...
- Page 11 Installation Instructions SSBU/SSMU...
