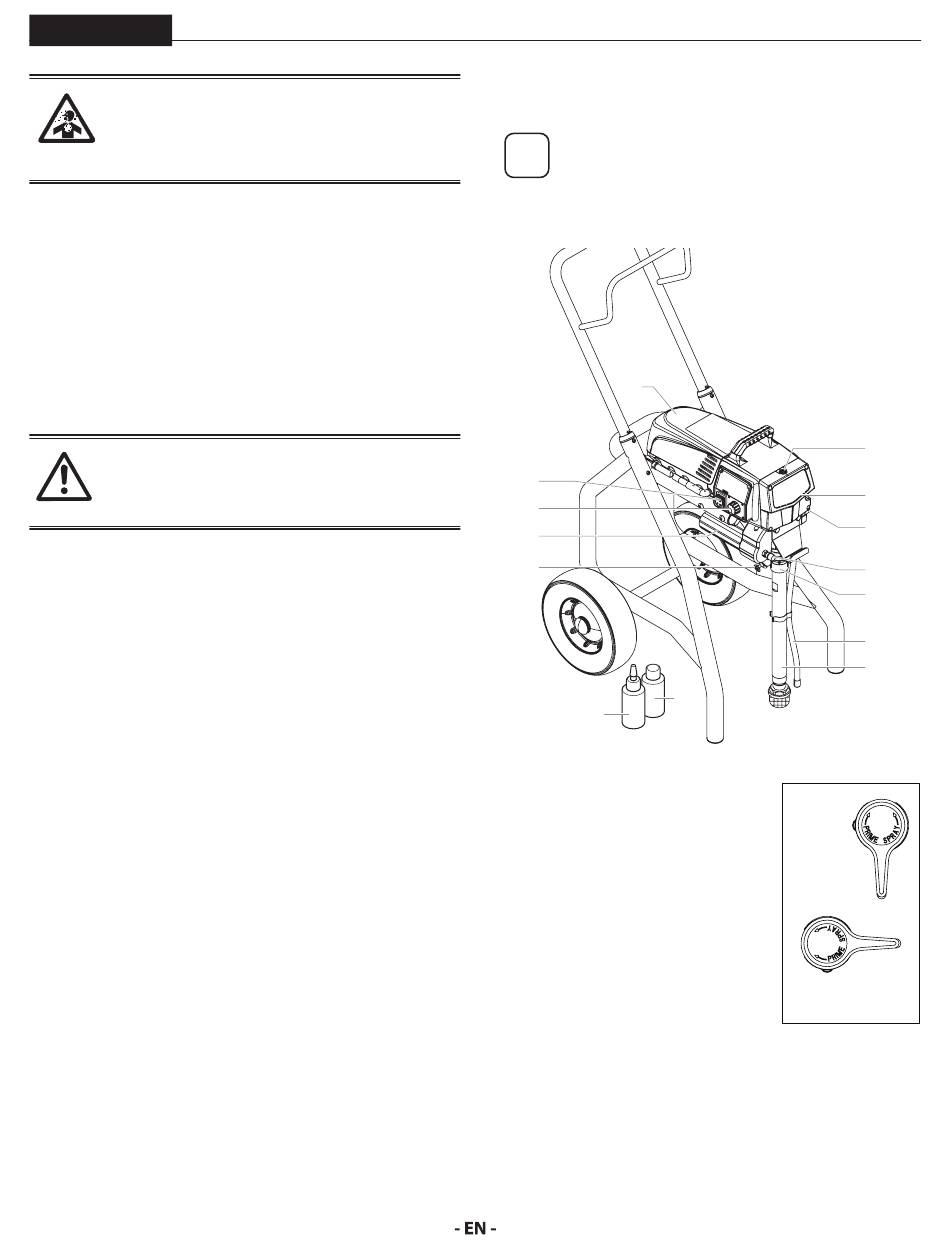

IMPACT 540
WARNING: HAZARDOUS VAPORS
Paints, solvents, and other materials can be harmful
if inhaled or come in contact with body. Vapors can
cause severe nausea, fainting, or poisoning.
PREVENTION:
•
Wear respiratory protection when spraying. Read all instructions
supplied with the mask to be sure it will provide the necessary
protection.
•
All local regulations regarding protection against hazardous vapors
must be observed.
•
Wear protective eyewear.
•
Protective clothing, gloves and possibly skin protection cream are
necessary for the protection of the skin. Observe the regulations
of the manufacturer concerning coating materials, solvents and
cleaning agents in preparation, processing and cleaning units.
WARNING: GENERAL
This product can cause severe injury or property
damage.
PREVENTION:
•
Always wear appropriate gloves, eye protection, clothing and a
respirator or mask when painting.
•
Do not operate or spray near children. Keep children away from
equipment at all times.
•
Do not overreach or stand on an unstable support. Keep effective
footing and balance at all times.
•
Stay alert and watch what you are doing.
•
Do not operate the unit when fatigued or under the influence of
drugs or alcohol.
•
Do not kink or over-bend the hose. Airless hose can develop leaks
from wear, kinking and abuse. A leak can inject material into the
skin.
•
Do not expose the hose to temperatures or pressures in excess of
those specified by manufacturer.
•
Do not use the hose as a strength member to pull or lift the
equipment.
•
Use lowest possible pressure to flush equipment.
•
Follow all appropriate local, state and national codes governing
ventilation, fire prevention and operation.
•
The United States Government Safety Standards have been
adopted under the Occupational Safety and Health Act (OSHA).
These standards, particularly part 1910 of the General Standards
and part 1926 of the Construction Standards should be consulted.
•
Before each use, check all hoses for cuts, leaks, abrasion or
bulging of cover. Check for damage or movement of couplings.
Immediately replace hose if any of those conditions exist. Never
repair a paint hose. Replace with a conductive high-pressure hose.
•
Do not spray outdoors on windy days.
•
Always unplug cord from outlet before working on equipment
(electric models only).
2
i
9
10
11
12
1
1.
Motor
2.
Oiler cap
3.
Oiler button
9
4.
PRIME/SPRAY valve
10
5.
Outlet fitting
11
6.
Fluid section
7.
12
Siphon tube
8.
Return hose
9.
ON/OFF switch
10.
Pressure control knob
11.
Pusher stem
12.
Filter assembly
13
14
13.
Liquid Shield™ (4 oz.)
14.
Piston Lube™ (4 oz.)

GENERAL DESCRIPTION

This airless sprayer is a precision power tool used
for spraying many types of materials. Read and
follow this instruction manual carefully for proper
operating instructions, maintenance, and safety
information.
1
13
14
2
3
4
5
6
7
8
GENERAL DESCRIPTION
4*
2
k
PRIM
3
4
5
6
SPR
7
8
4*
k
PRIME
p
SPRAY
5
