RUGGEDCOM RS900F
Guide d'installation
Ports de communication
Le RUGGEDCOM RS900F peut être équipé de différents types d'interfaces de communication pour améliorer ses
capacités et ses performances.

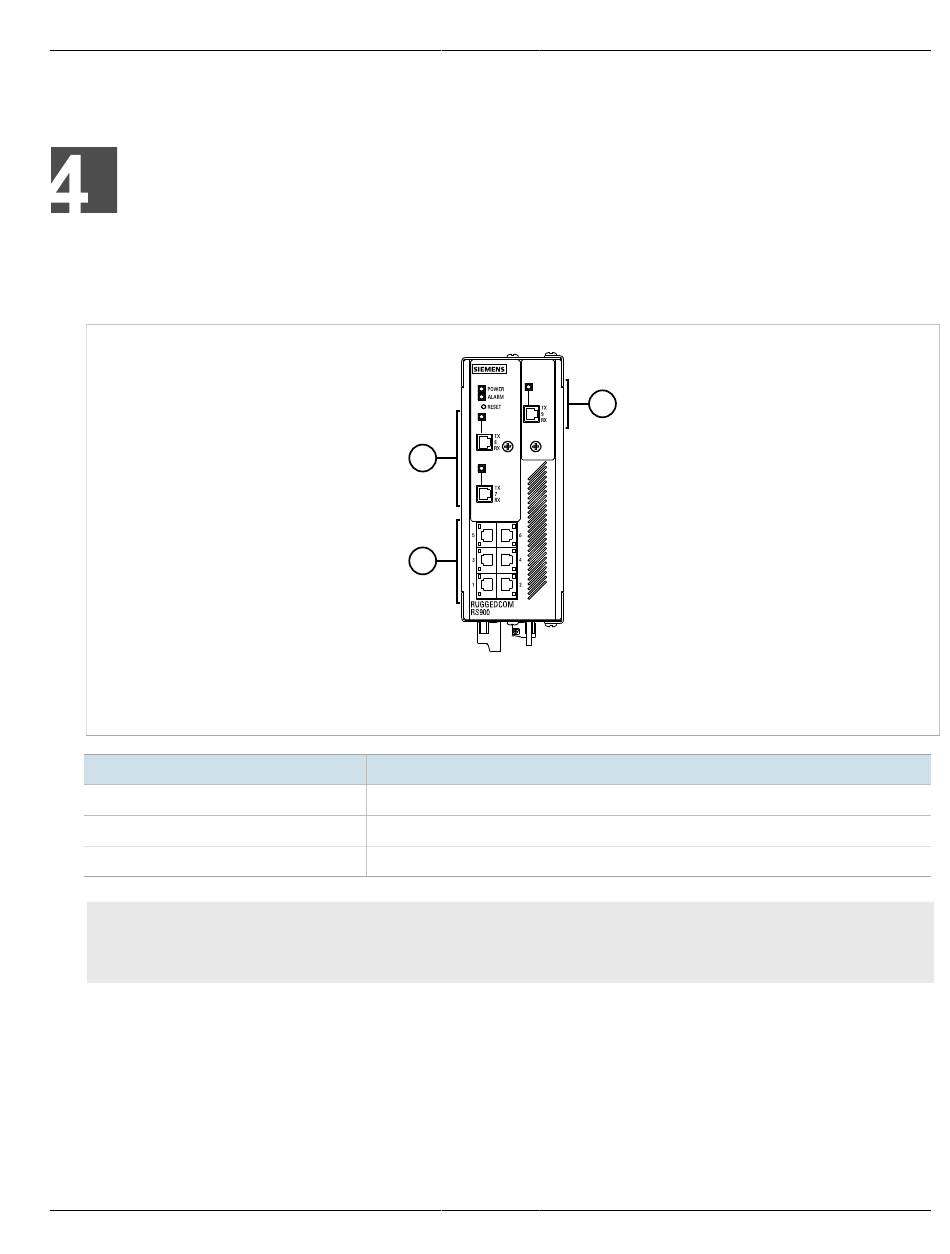

Figure 11 : Affectation de port
1. Ports 1 à 6 2. Ports 7 et 8 3. Port 9
Port
1 à 6
7 et 8
9
SOMMAIRE
•
Section 4.1, « Ports Ethernet cuivre »
•
Section 4.2, « Ports Ethernet à fibre optique »
Section 4.1
Ports Ethernet cuivre
Le RUGGEDCOM RS900F prend en charge plusieurs ports Ethernet 10/100Base-TX qui permettent la connexion à
des câbles standard à paire torsadée blindés ou non blindés de catégorie 5 (CAT 5) avec des connecteurs mâles
RJ45.
Ports Ethernet cuivre
2
1
Ports Ethernet cuivre (10/100Base-TX)
Ports Ethernet cuivre (10/100Base-TX) ou fibre optique (100Base-FX)
Port Fast Ethernet (10/100Base-TX ou 100Base-FX)
Ports de communication
3
Type
Chapitre 4
21
