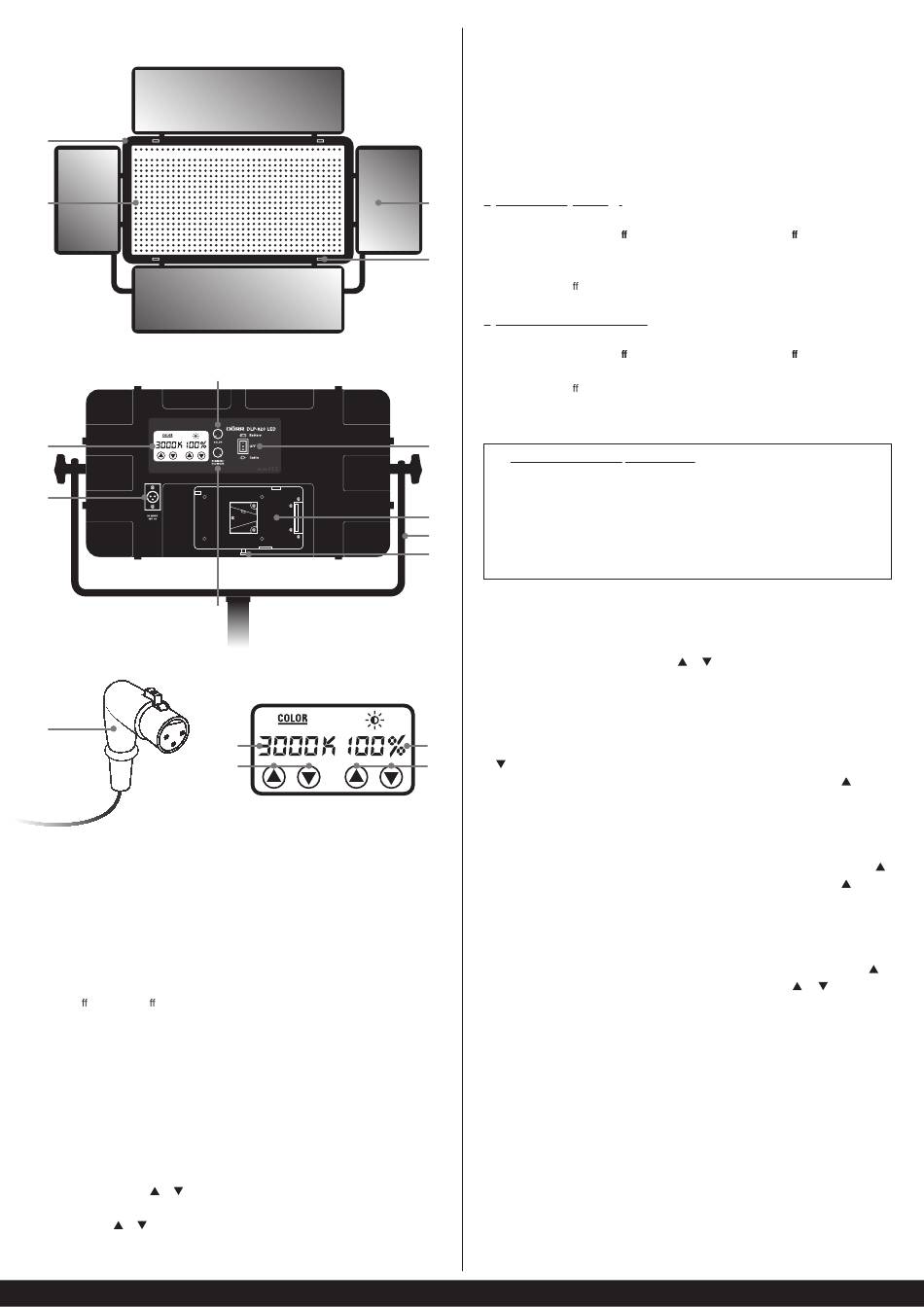

NOMENCLATURE
1
2
5
6
13
1. Light panel
2. LED bulbs
3. Barndoors with 4 detachable, silver refl ectors mats (with Velcro)
4. Attachment clips for fi lter plate
5. Touch display
6. DC power jack
7. On/O switch (0 = O / I = battery operation / II = operation with AC power supply)
8. Dial for colour temperature
9. Dial for illuminance (dimmer)
10. Battery mount for V-Mount Li-Ion battery
11. Swivel mount
12. Battery lock
13. Power plug with locking pin
Touch Display
A. Shows the adjusted colour temperature
B. Colour temperature or
C. Shows the adjusted illuminance
D. Illuminance or
8
9
A
B
ASSEMBLY
1. Fix the 4 refl ector mats on the barndoors using the Velcro straps.
2. Mount the continuous light to a light stand
OPERATION
Operation with AC power supply
3
1. Make sure that the On/O switch (7) is at the position "0" (=O ).
Connect the supplied AC power supply with the DC power jack (6).
4
Note: to release the AC power supply press the locking pin at the power plug (13).
2. Turn the On/O switch (7) to the position II (= operation with AC power supply).
Operation with V-Mount Li-Ion Battery
1. Make sure that the On/O switch (7) is at the position "0" (=O ).
Slide the battery into the v-shaped battery mount (10) until it clicks into place.
2. Turn the On/O switch (7) to the position I (=battery operation).
3. To remove the battery, press the battery lock (12).
7
V-Mount Li-Ion batteries optionally available from DÖRR:
DÖRR Compact V-Mount Li-Ion Battery CVL-65 14.8V, 65Wh
Item No. 980715
10
11
DÖRR Compact V-Mount Li-Ion Battery CVL-98 14.8V, 98Wh
12
Item No. 980716
SETTINGS
Adjust the requested colour temperature and illuminance by turning the dial controls 8
and 9 or by pressing the buttons B and D (
will be shown in the display (5).
(a) To create warmest light
C
Turn the colour temperature dial (8) counter clockwise to its left or press the touch button
B ( ).
D
Turn the illuminance dial (9) clockwise to its right or press the touch button D ( ).
3.000K 100%
Display shows:
(b) To create coolest light
Turn the colour temperature dial (8) clockwise to its right or press the touch button B ( ).
Turn the illuminance dial (9) clockwise to its right or press the touch button D ( ).
8.000K 100%
Display shows:
(c) To create daylight temperature
Turn the illuminance dial (9) counter clockwise to 100% or press the touch button D ( ).
Turn the colour temperature dial (8) or press the touch button B (
shows 5.000 K (daylight temperature).
7
.
(optionally available from DÖRR)
(optional)
or ) at the touch display (5). Current value
or ) until display
