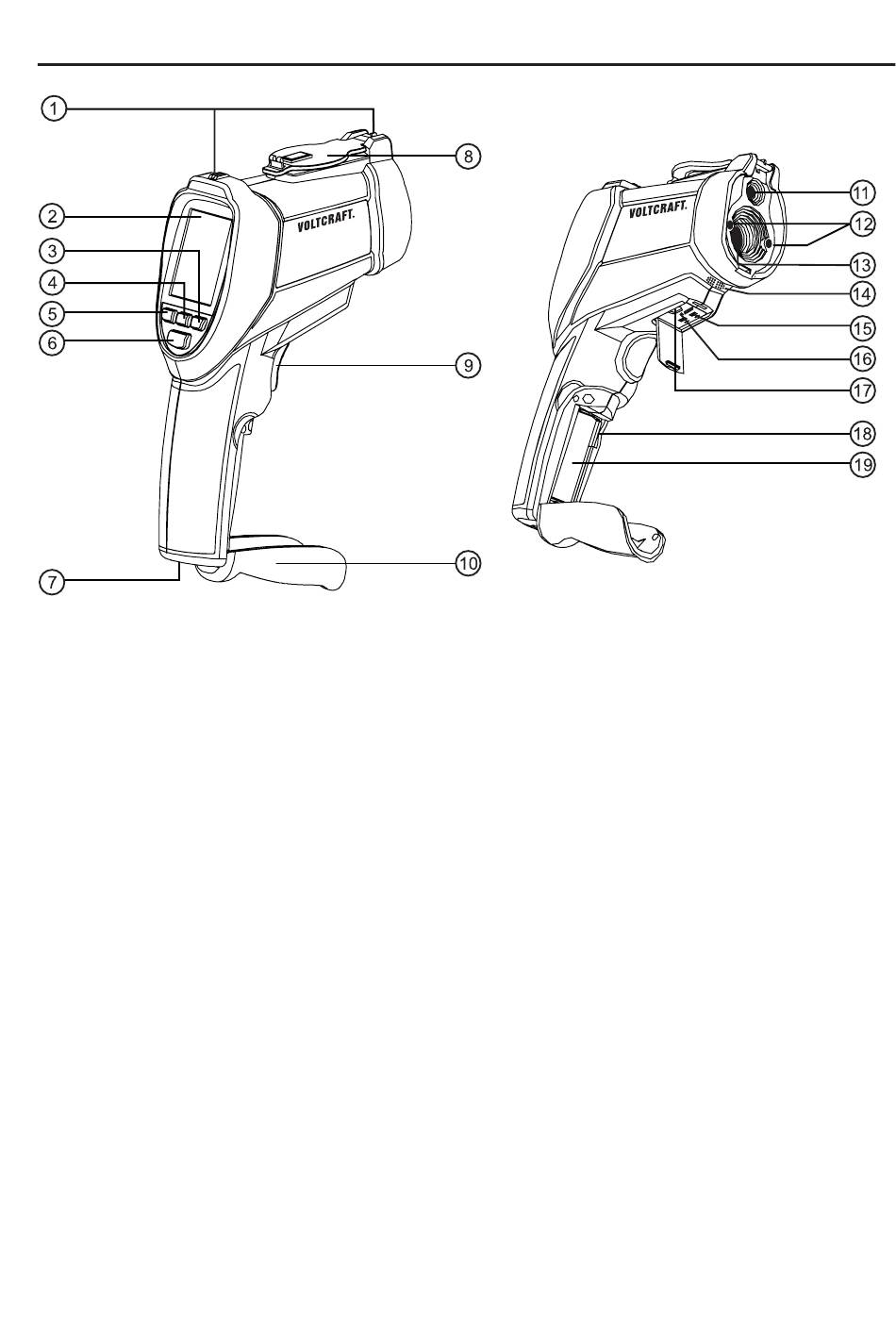

6. Operating elements

1 Visual targeting device (rear/fore sight)
2 Colour display
3 Button "Down" and "Video recording"
4 Button "On/off" and "ESC" (Cancel/Exit)
5 Button "Up" and "Image recording"
6 Button "Enter" for input confirmation
7 Stand connection socket
8 Lens protective cover
9 Measuring button
10 Folding lid for battery compartment and microSD
chute
34
11 Camera lens
12 Exit openings for double target laser
13 IR measuring lens
14 Integrated sensors for ambient temperature and rel.
humidity
15 Connection socket for type K thermocouple sensor
16 RESET button for system reset
17 Mini USB charging socket
18 Chute for microSD memory card
