LOWR

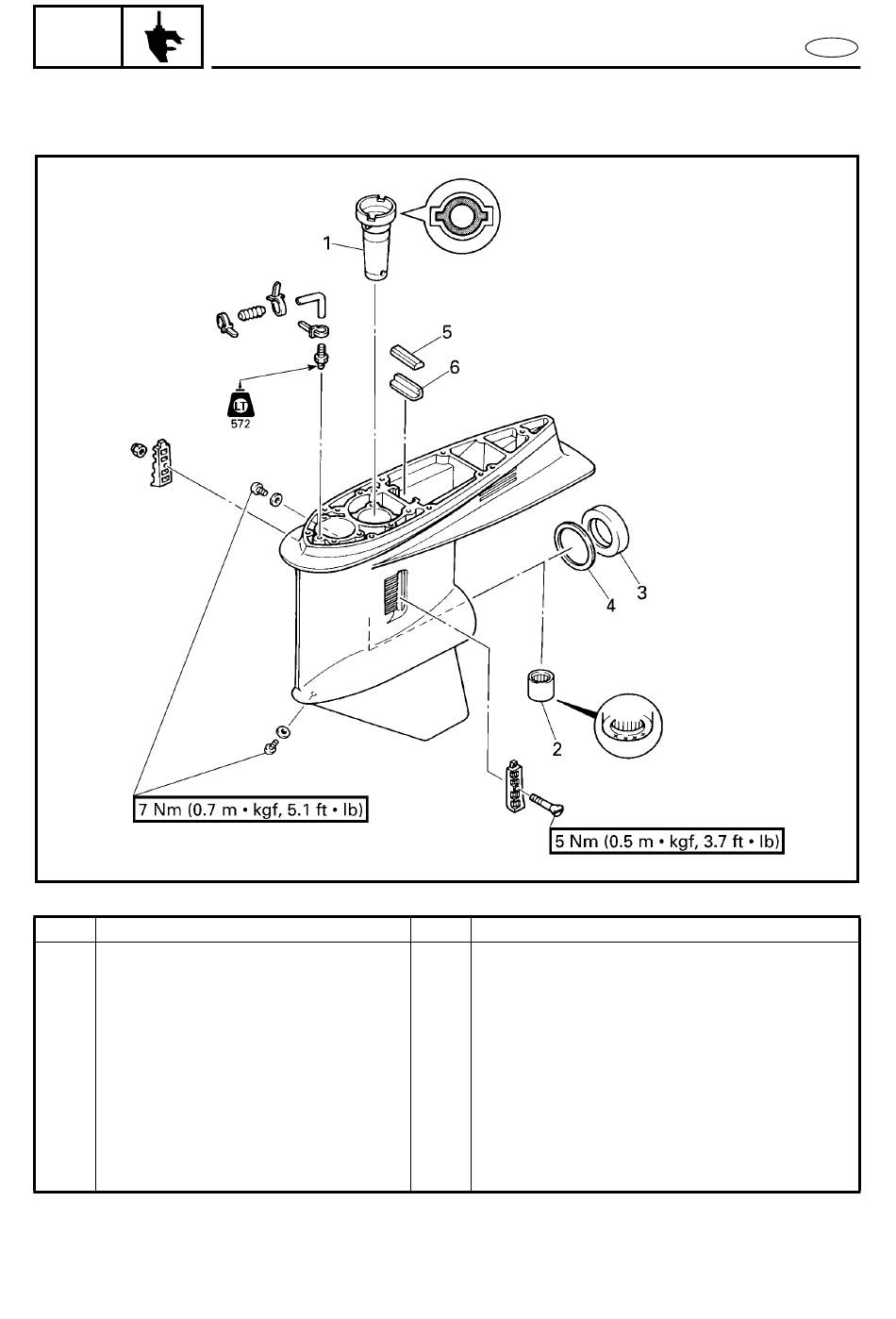

LOWER CASE ASSEMBLY (REGULAR ROTATION MODELS)

DISASSEMBLING/ASSEMBLING THE LOWER CASE ASSEMBLY

Order
Forward gear
1 Drive shaft sleeve
2 Needle bearing
3 Tapered roller bearing outer race
4 Forward gear shim
5 Water seal
6 Plate
*: As required
LOWER CASE ASSEMBLY
(REGULAR ROTATION MODELS)
Job/Part Q'ty
Refer to "DRIVE SHAFT (REGULAR
ROTATION MODELS)" on page 6-17.
1
1
1
*
1
1
For assembly, reverse the disassembly
procedure.
6-23
Remarks
E
6
6
6350
