ASSEMBLY

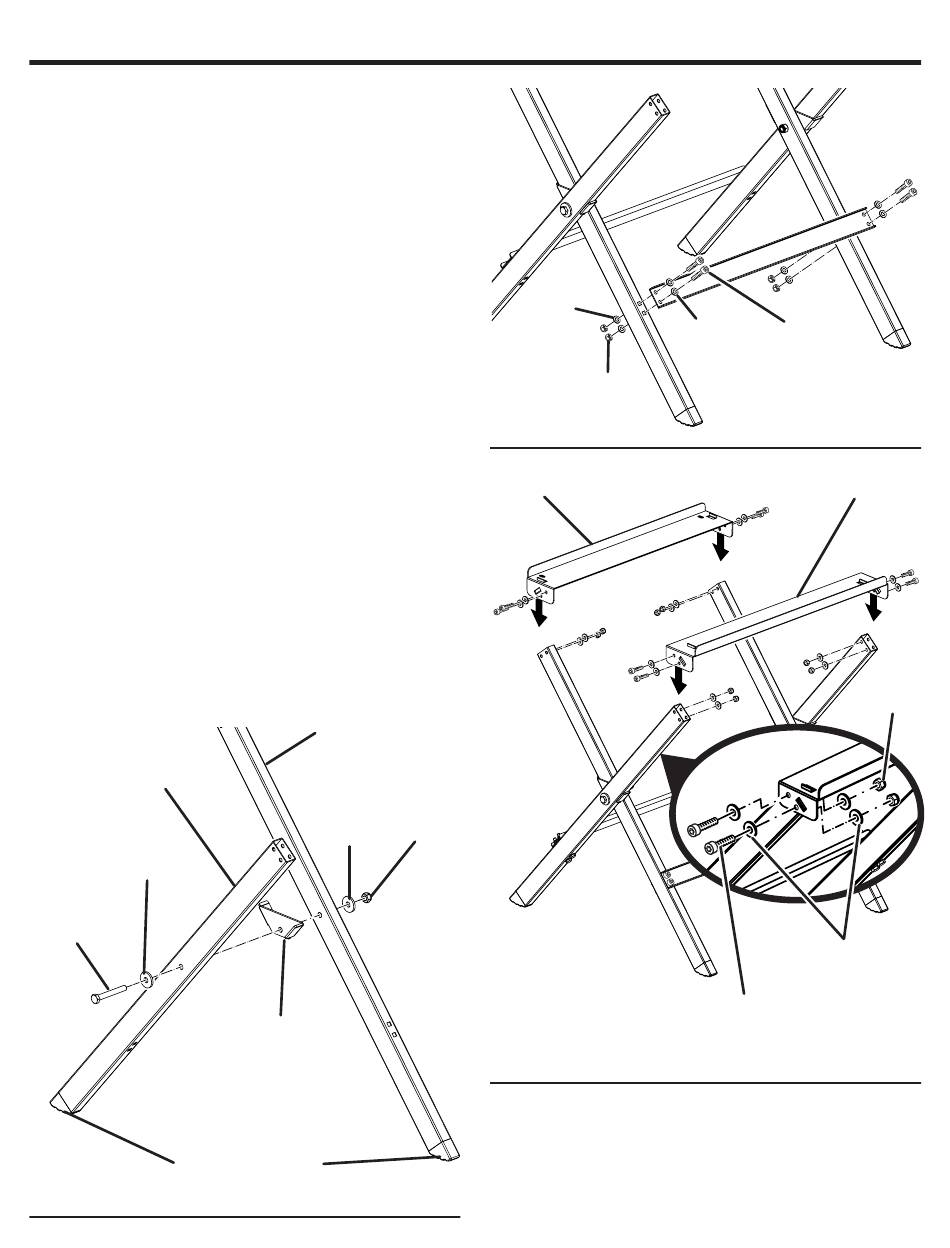

ASSEMBLING THE LEG STAND

See Figures 7 - 9.
 Position two legs as shown below so they resemble an
"X". Align the holes for hardware.
NOTE: The angled ends of the leg assemblies should
form the base of the "X", with the wider side facing out.
 Insert an M8 x 60 mm hex head screw through a washer
(D8.5 x D25 x 3T), then through the outer leg, the left
mounting bracket, the inner leg, and the second washer
(D8.5 x D25 x 3T). Install an M8 nut and tighten securely,
but do not overtighten. Repeat the process with the
other two legs and the right mounting bracket.
 Using the M6 x 55 mm socket head hex screws, washers
(D6.5 x D13 x 1T) and (D6.5 x D16 x 1.5T), and M6 lock
nuts, secure both support braces to the legs as shown.
Tighten securely.
NOTE: Once the support braces are installed, try to fold
the leg stand. If the stand will not fold, adjust the tightness
of the nuts securing the leg assemblies to the mounting
brackets as needed just until the stand can fold without
binding.
 Position the short table so that it spans the two inside legs
of the leg assemblies. Secure using M6 x 35 mm socket
head hex screws, washers (D6.5 x D16 x 1.5T), and M6
nuts as shown, making sure all hardware is tightened
securely.
 Position the long table so that it spans the two outside
legs of the leg assemblies. Secure using M6 x 35 mm
socket head hex screws, washers (D6.5 x D16 x 1.5T), and
M6 nuts as shown, making sure all hardware is tightened
securely.
OUTER
LEG
WASHER
(D8.5 X D25
X 3T)
HEX HEAD
SCREW
(M8 X 60 mm)
ANGLED ENDS WITH
WIDER SIDE FACING OUT
INNER
LEG
WASHER
NUT
(D8.5 X D25
(M8)
X 3T)
LEFT
MOUNTING
BRACKET
Fig. 7
WASHER
(D6.5 X D16
X 1.5T)
NUT
(M6)
SHORT
TABLE
16 − English
WASHER
SOCKET HEAD
(D6.5 X D13
HEX SCREW
X 1T)
(M6 X 55 mm)
LONG
TABLE
WASHER
(D6.5 X D16
X 1.5T)
SOCKET HEAD
HEX SCREW
(M6 X 35 mm)
Fig. 8
NUT
(M6)
Fig. 9
