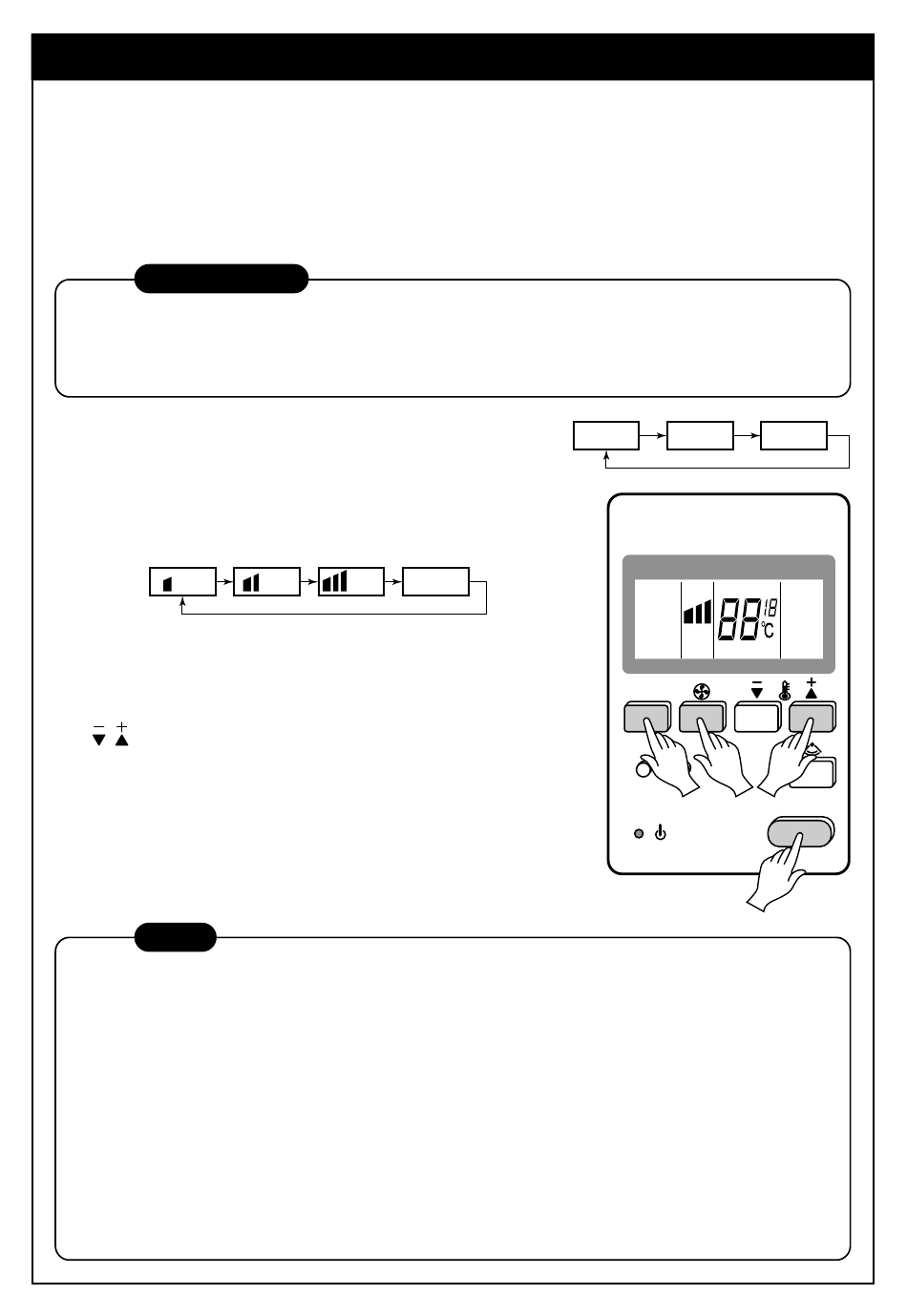

CORRECT USAGE

When you use the air conditioner at the first time or when you change the setup value, follow the procedure
below. From the next time, the operation displayed on the remote controller will start only by pushing ON /
OFF button.
Preparation
Turn on the power switch.
• The operation lamp (Red) flashes.
REQUIREMENT
• While using the air conditioner, operate it only with ON/OFF button without turning off the power switch.
• When starting the operation after stop for a long time, turn on the power switch for 12 hours or more
before start. (This is required because it is necessary to turn on the compressor case heater for heating
in order to prevent overload on the compressor when activating the outdoor unit.)
1
Select an operation mode with "MODE" button.
For every push of the button, the display changes as
right figure :
2
Select air volume with the "FAN" button.
The display changes as follows :
LOW
• When air volume is "AUTO", air volume changes according to
the room temperature.
3
Determine the set up temperature by pushing the "TEMP."
button.
4
Push "ON/OFF" button.
The operation lamp goes on, and the operation starts .
STOP
Push "ON/OFF" button.
The operation lamp goes off, and the operation stops.
NOTE
In cooling
• When the operation button is pushed, the operation starts approx. 1minute after.
In heating
• When pushing "ON/OFF" button, the indoor fan starts pre-heating operation for 3 to 5 minutes before it
starts blowing out hot air.
• When the room temperature reaches the set up temperature and the outdoor unit stops, the mode
becomes LOW and air volume decreases accordingly. During defrost operation, the fan stops so that
cool air is not out, and "PREHEAT" and "DEFROST" are displayed.
When restarting the operation after stop
• In heating operation, the fan operation may continue for approx. 30 second.
• When restarting the operation immediately after stop, the air conditioner does not operate for approx. 3
minutes to protect the machine.
MED. HIGH AUTO
FAN
6
COOL HEAT
MODE FA N MODE T E M P T E M P.
F A N A N
CHECK ADDRESS CHECK
UNIT UNIT ST STANDBY ANDBY
1 2 1 2
C O O L C O O L FILTER FIL
PREHEAT PREHEA
DEFR DEFROST
H E AT AU TO
LOUVER LOUVER
F I X
CENTRAL
MANUAL AL MANU
MODE MODE
FILTER TER CHECK CHECK
1 2 3
ON/OFF ON/OFF
4
TER
OST
