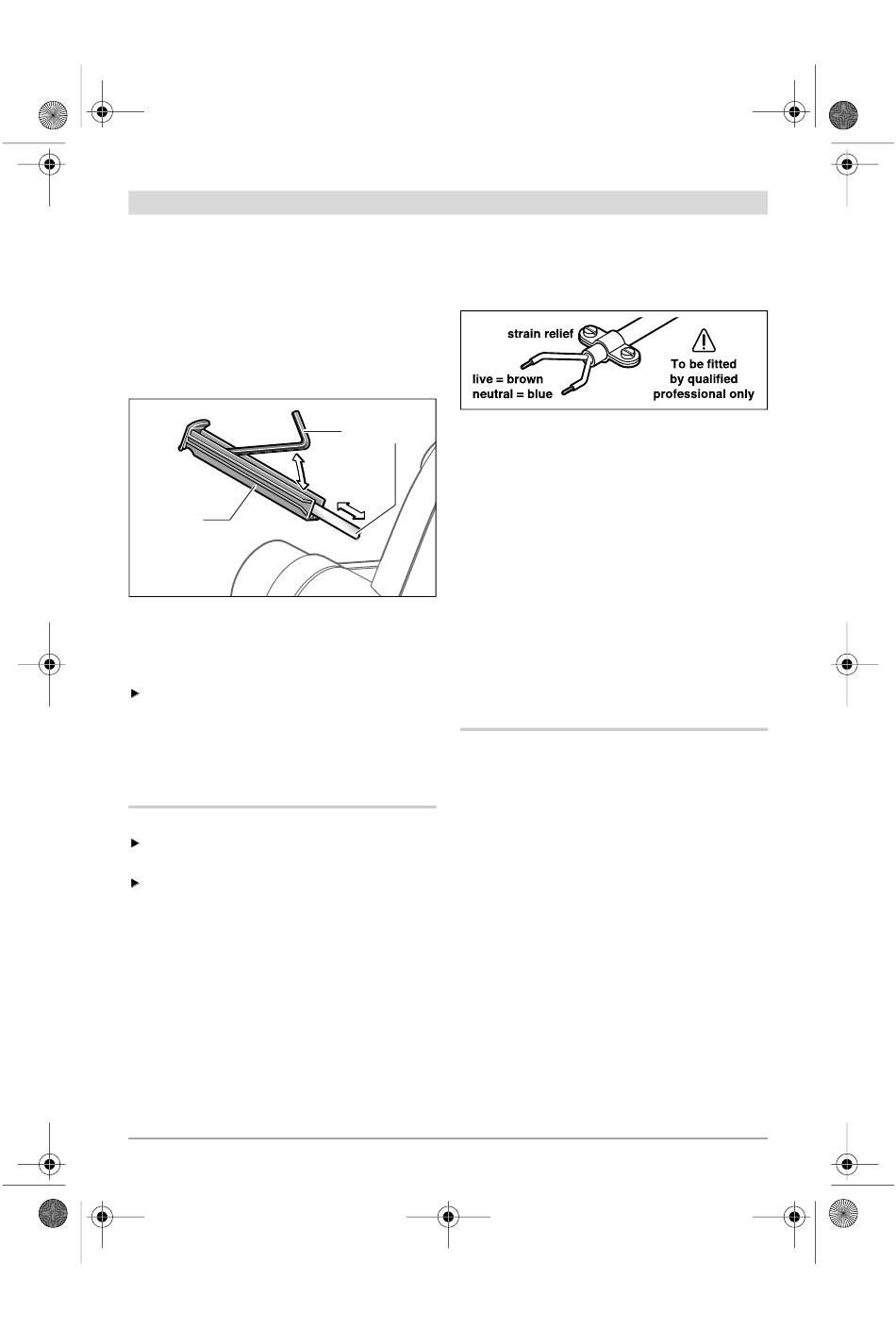

Storage Compartment for Planer Blade/Allen
Key
A planer blade 15 and an Allen key 17 can be
housed in the storage compartment 3 as shown
in the figure. To remove the contents in the com-
partment, completely pull the storage compart-
ment for the planer blade/Allen key 3 out of the
planer.
3
Service Station (see figure I)
The service station 29 in the carrying case can
be used for holding the planer, e. g. for changing
the blade.
Do not use the service station for stationary
operation of the planer.

Maintenance and Service

Maintenance and Cleaning

Before any work on the machine itself, pull
the mains plug.
For safe and proper working, always keep
the machine and ventilation slots clean.
Ensure easy operation of the park rest 28 and
clean it regularly.
If the machine should fail despite the care taken
in manufacturing and testing procedures, repair
should be carried out by an after-sales service
centre for Bosch power tools.
In all correspondence and spare parts order,
please always include the 10-digit article
number given on the type plate of the machine.
Bosch Power Tools
WARNING! Important instructions for con-
necting a new 3-pin plug to the 2-wire cable.
The wires in the cable are coloured according to
the following code:
Do not connect the blue or brown wire to the
17 15
earth terminal of the plug.
Important: If for any reason the moulded plug is
removed from the cable of this power tool, it
must be disposed of safely.
Replacing the Drive Belt (see figures K – L)
Unscrew screw 8 and take off the belt cover 7.
Remove the worn drive belt 30.
Before assembling a new drive belt 30, clean
both pulleys 31 and 32.
Place the new drive belt 30 on the small pulley
32 first and then work the drive belt 30 onto the
large pulley 31 by hand while rotating it.
Reattach the belt cover 7 and tighten with the
screw 8.
After-sales Service and Customer
Assistance
Our after-sales service responds to your ques-
tions concerning maintenance and repair of your
product as well as spare parts. Exploded views
and information on spare parts can also be
found under:
www.bosch-pt.com
Our customer consultants answer your ques-
tions concerning best buy, application and ad-
justment of products and accessories.
