02 | PRODUCT DESCRIPTION

The powerful flashes of the DÖRR DFX series – designed for optimal illumination
of all possible photo scenes in photo studios. Exchangeable light formers make it
easy to cope with the different requirements during portrait sessions, beauty and
fashion shoots, product photography, etc.
Powerful – master all challenges of todays' photographic tasks
•
Bowens bayonet – the use of various light formers allows to create various light
•
scenes
Built-in umbrella holder – for use of reflector and diffuser umbrellas
•
Robust metal housing with guide handle – perfect for a busy studio schedule
•
Dimmable modelling light – see shadows before releasing
•
03 | NOMENCLATURE
1 Protective cover
2 Release knob for protective cover/light former
3 Housing
4 Guide handle
5 Locking screw umbrella holder
6 Tripod socket
7 Locking screw tripod socket
8 Modelling light
9 Flash tube
10 Bayonet
11 Umbrella holder
12 Locking lever
13 Release button tripod socket
14 Photo cell/slave cell
15 Power level indicator
16 On/Off button photo cell
16a) LED photo cell
17 On/Off button acoustic standby signal
17a) LED acoustic standby signal
18 Power adjustment button – flash and modelling light
18a) increase power
18b) decrease power
19 Flash test button
19a) LED standby signal
20 On/Off button modelling light
20a) LED modelling light
21 SYNC Socket
22 Power plug socket
23 Main switch (O= Off/I = On)
24 Fuse compartment

04 | BEFORE USE

04.1 REMOVE PROTECTIVE COVER
CAUTION
Make sure to remove the protective cover (1) before using the studio flash.
In order to remove the protective cover (1) slide the release knob (2) in arrow di-
rection and hold it down – at the same time turn the protective cover (1) counter
clockwise and remove it (1).
CAUTION
Let the flash cool down before assembling the protective cover back again.
In order to install the protective cover (1) after usage, place the 3 connecting pins
over the 3 bayonet fittings and turn the protective cover (1) clockwise until you hear
the connectors snap into place.
04.2 MOUNTING ONTO A LIGHT STAND
DÖRR DFX studio flashes fit every studio light stand. DÖRR offers a wide range
of light stands. Loosen the tripod socket locking screw (7) and place the studio
flash onto the tripod socket (6) while pressing the tripod socket release button (13).
When the flash is firmly secured on the light stand tighten the tripod socket locking
screw (7).
Loosen the locking lever (12) in order to adjust the flash tilt angle.
Use the guide handle (4) to adjust the flash angle when using large and heavy soft
boxes.
CAUTION
Never touch the housing while adjusting the flash angle – risk of burns. Always
use the guide handle (4).
In order to remove the flash from the light stand, unscrew the tripod socket locking
screw (7). Press the tripod socket release button (13) and remove the flash.
04.3 USE OF LIGHT FORMERS
(OPTIONAL ACCESSORIES)
Use light formers to create impressive light sceneries. Depending on the light for-
mer, picture results may vary. Use light formers to create hard or soft light. The
DÖRR DFX studio flash series offer a Bowens bayonet to attach light formers.
You may use all light formers with Bowens bayonet. Within our DÖRR accessories
assortment we carry a wide choice of DÖRR light formers as well as an optional
Bowens adapter (Item No. 372960).
Furthermore optionally available:

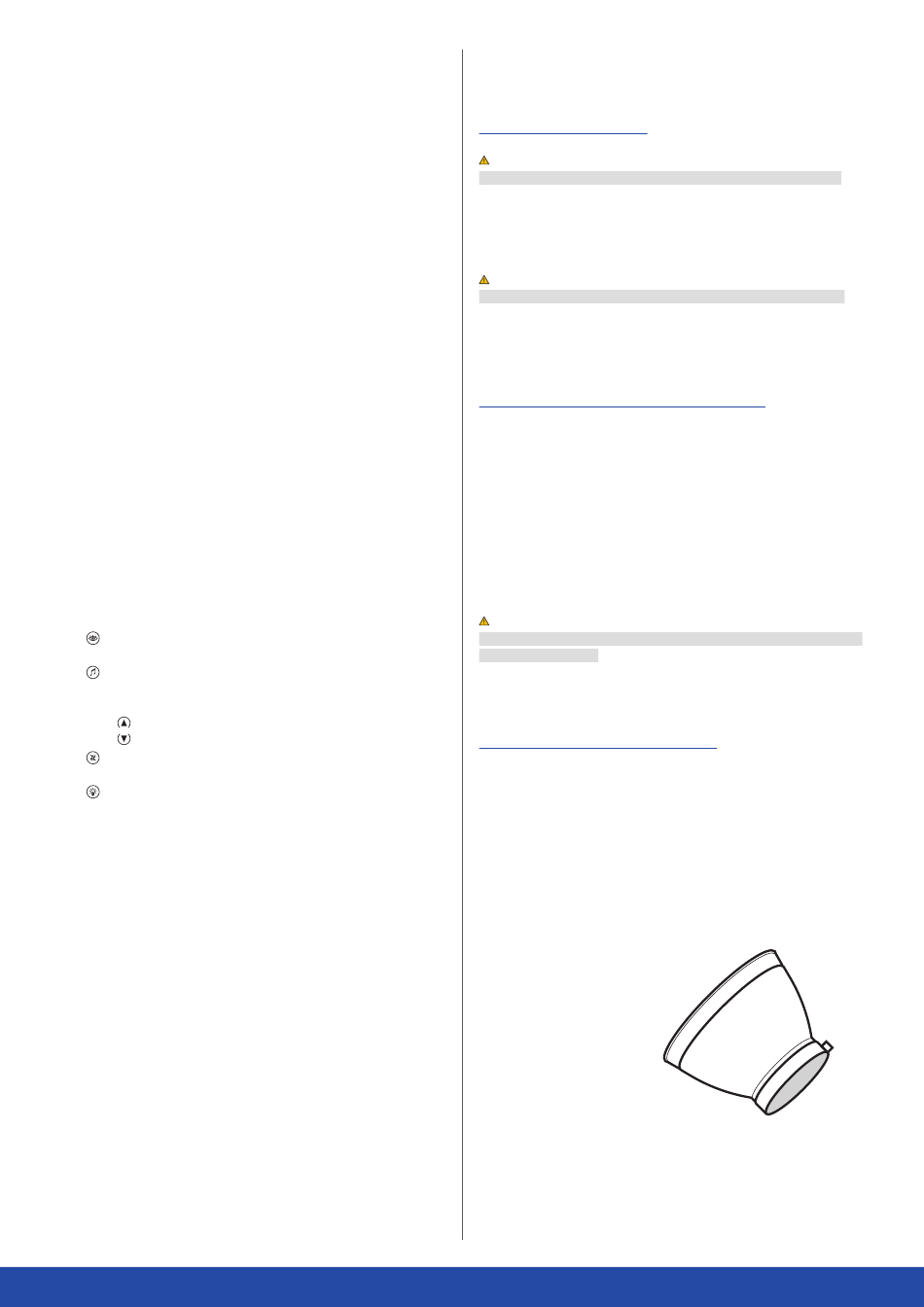

DÖRR standard reflector for DFX-300/600
Item No. 371350
