Should this occur:

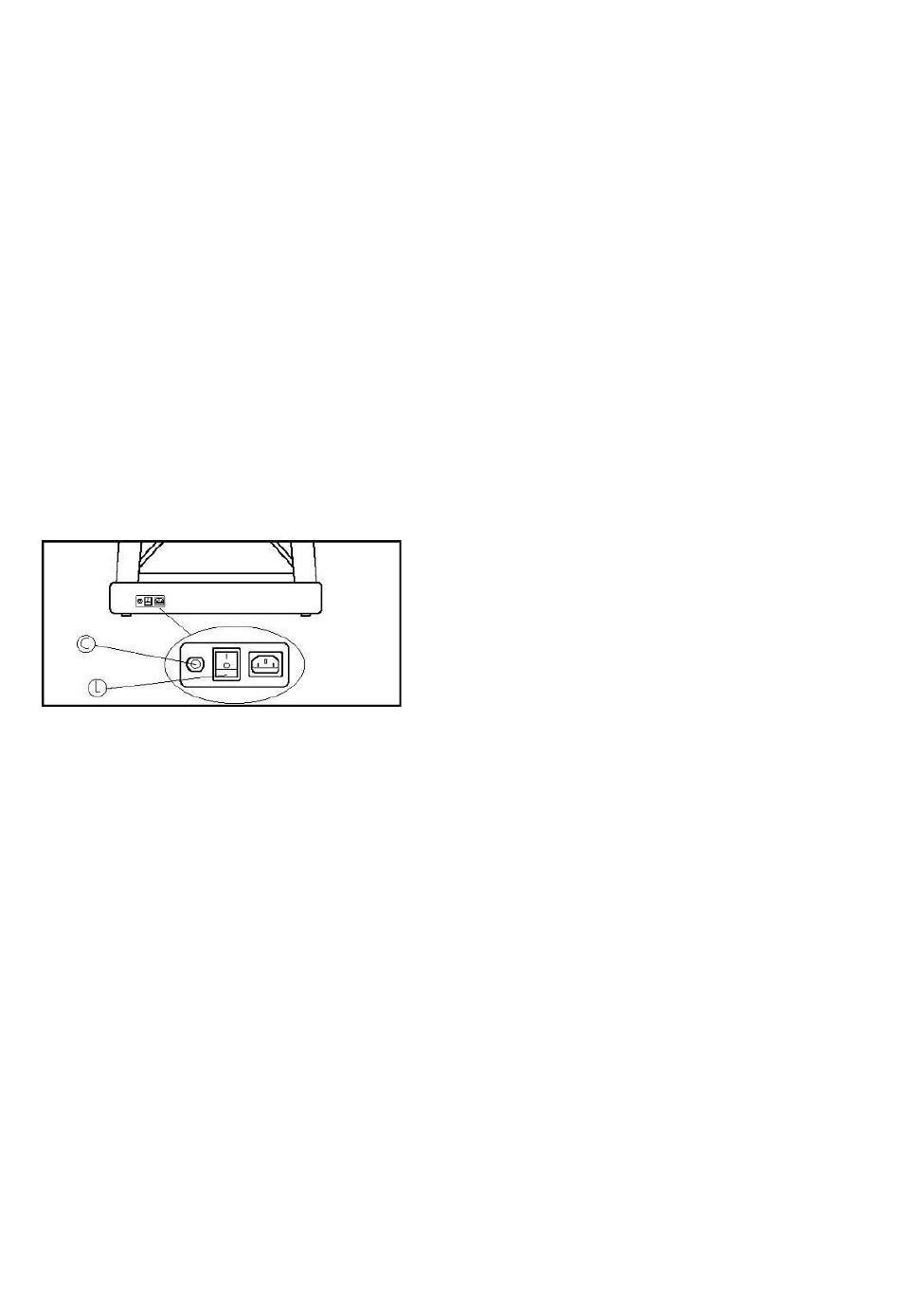

1.- Set switch (L), located on the
casing, to the "0" (OFF) position Fig.B.
2.- Press the circuit button (C) to reset
the unit.
3.- Next, set switch (L) to the "I" (ON)
position and the unit will be ready for
use again.
Should the
repeatedly then the most probable
causes are:
- Abnormal working conditions,
- Treadmill belt in need of lubricant,
- Solvent based lubricants used,
- Belt is too tight.
Plug the unit into a wall socket with an
EARTH terminal. Set switch (L) to
Position [1].
ASSEMBLY INSTRUCTIONS.-
The assistance of a second person
is advisable for the assembly work.
Take the unit out of the box and place
it on the floor as shown in Fig.0.
Make sure that all of the pieces are
there: (2) Main structure; (4) side bar
(left); (5) Side bar (right); (17) Allen
screw M8x25; (30) Self-tapping screw
5x8; (52) Monitor; (54) Side bar base
cover (Left); (65) Side bar base cover
(Right); (93) Safety key; Allen key
5mm; Allen key 6mm; (108) Bottle of
lubricant.
circuit breaker
Fig.B
Follow the instructions step by step to
assemble:
1 First of all take the right side bar (5)
connect terminals (77) (78) Fig.1, then
insert the side bar (5) into the bottom
right-hand support on the structure
and use screws (17).
2 Now take the left side bar (4) and
trip
insert it into the bottom left-hand
support on the structure and use
screws (17) to secure it.
3 At least two people are needed for this
step. When fitting the side bars, one
person should hold the side bar while
the other one fits the screws (17). This
will prevent any possible accidents.
4 Position the left and right base
covers (54) and (55) in the direction of
the arrow facing the corresponding
side bar, as shown in Fig.2.
FITTING THE MONITOR:
5 Connect the control cable terminal (B)
Fig.3, coming out of the monitor, to the
control cable (77), sticking up from the
right-hand side bar (5), and insert
screws (17), making sure not to pinch
the cables, and screw in until hand tight.
Note: Make sure that the cables do
not become caught up when the unit is
folded. Tighten the 4 screws (17) fully.
6 Position the left and right base covers
(54) and (55) in the direction of the
arrow facing the corresponding side bar,
as shown in Fig.4 and attach them by
using screws (30), as shown in Fig.4.
