Option 2 - False Front (cabinet face only)
Standard Installation-Wood Panel
Requirements
IMPORTANT:
A Standard installation can be achieved with either a 24"
(60.9 cm) or 25" (63.5 cm) deep opening.
A standard grille is used to achieve a Standard installation.
Use the standard grille bracket (provided with refrigerator) to
attach the standard grille.
The grille panel height, shown in the Standard Installation
Flush Grille graphic, allows for an air gap critical to refrigerator
performance.
Standard Grille Bracket
12
6" (15.24 cm)
min.
84"
(213.4 cm)

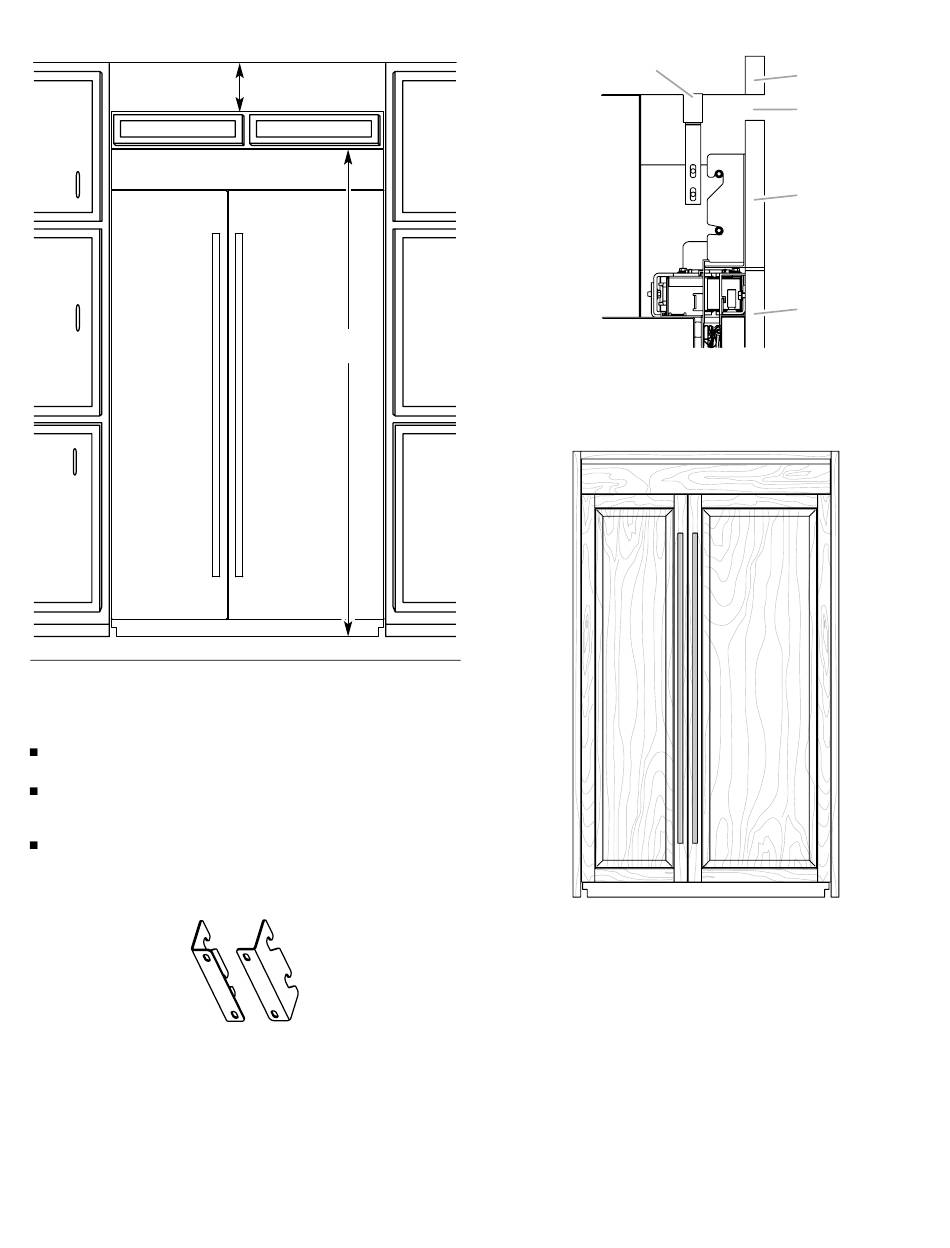

Standard Installation - Side View
A
A. Top grille filler
B. Soffit
C. Airflow
Standard Installation - Full Product View
B
C
D
E
D. Grille panel
E. Door panel
