Construction; Component Identification; Function - Blatchford Multiflex Ankle Instructions D'utilisation

3 Construction

Principal Parts
• Ankle Housing
• Ankle Ball
• Collet
• Internal Circlip
• M6 Lock Washer
• M6x20 Socket Cap Screw

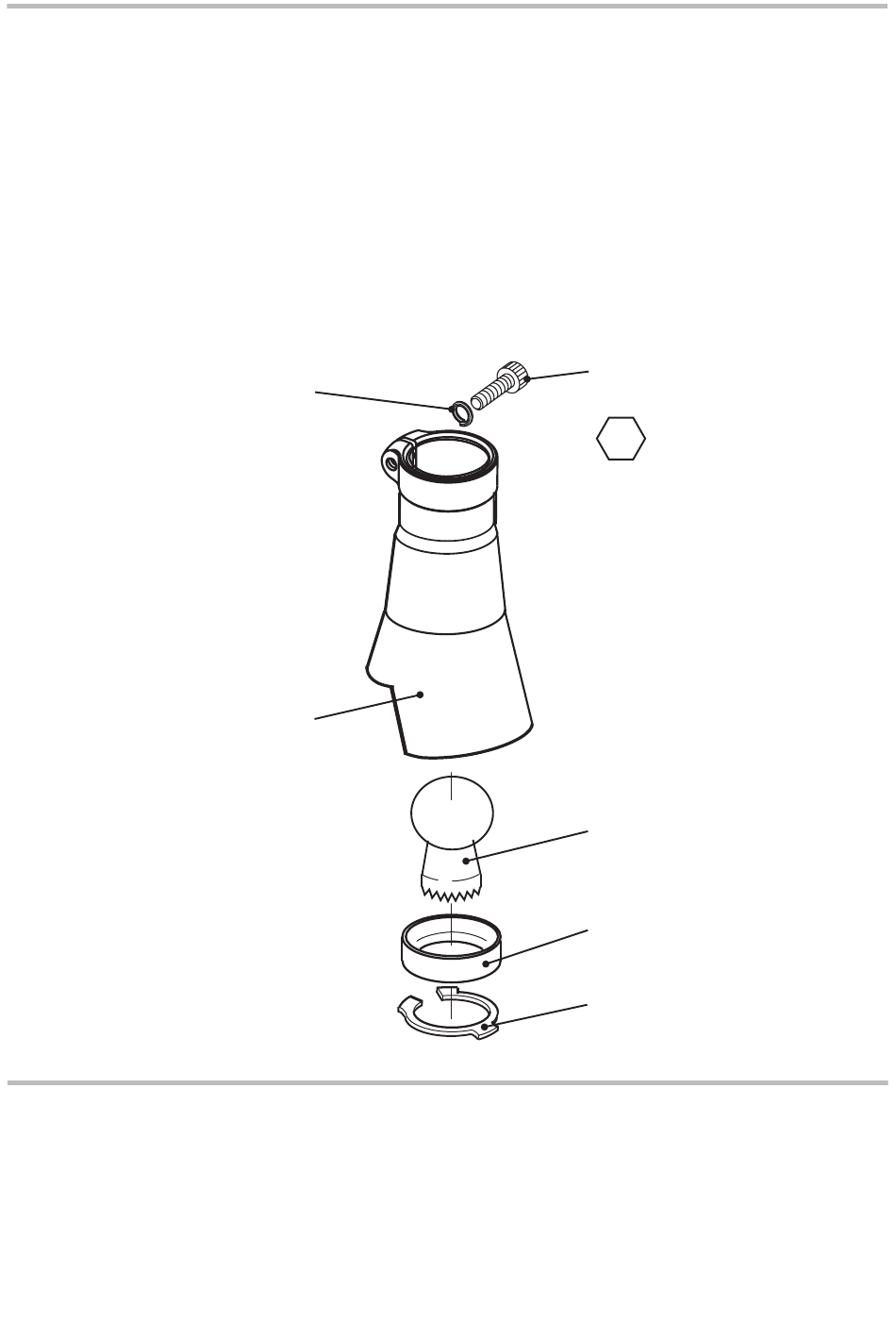

Component Identification

4 Function

The device comprises an ankle housing with a rubber ball joint. When used with an appropriate
snubber kit, these components provide the user with a resilient multi-axial ankle motion for
secure foot placement at heel strike and a smooth progression through the gait cycle. The ball
joint primarily controls plantarflexion and the snubber controls dorsiflexion support.
M6 Lock Washer
Ankle Housing
Aluminum
Aluminum Natural Rubber
Aluminum
Plated Carbon Steel
Plated Carbon Steel
Plated Carbon Steel
5
M6x20 Socket
Cap Screw
5
10 Nm
Ankle Ball
Collet
Internal Circlip
938224PK1/1-0521
