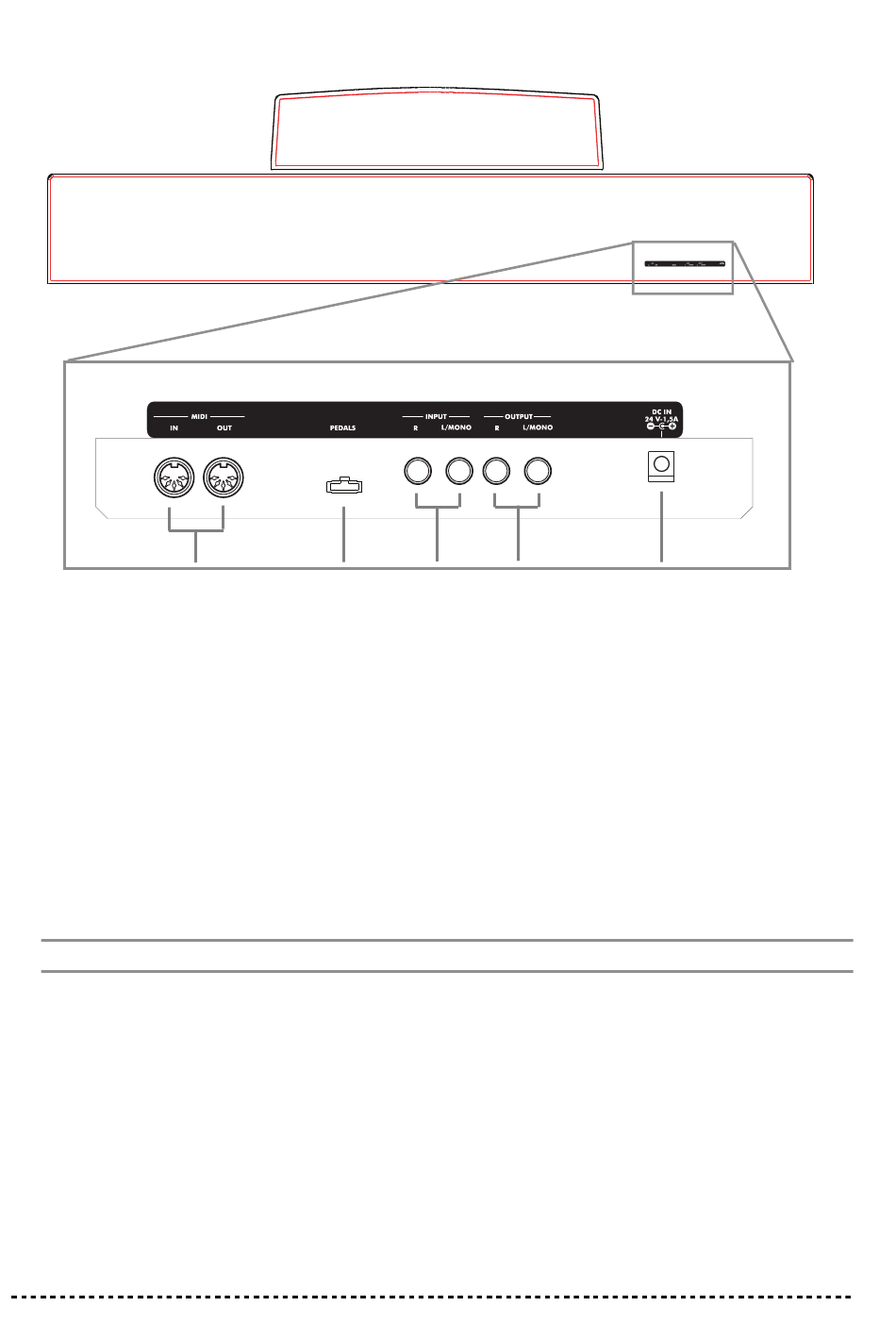

Rear panel

1 MIDI (IN, OUT) connectors: Connectors that are used to connect other MIDI
devices (sequencer, keyboards, etc.). OUT: Data output (to be connected to the
MIDI IN connector of another MIDI device). IN: Data input (to be connected to the
MIDI OUT connector of another MIDI device). See page 29.
2 PEDALS connector: Connect the supplied pedal group to this connector. See
page 19.
3 INPUT (R, L/MONO) connectors: Audio inputs. Connect to these connectors an
external audio source, such as a CD/tape player, a mixer, or another keyboard. See
page 27.
Warning: Avoid connecting the output of a power amplifier to these inputs!
4 OUTPUT (R, L/MONO) connectors: Audio outputs. Connect these connectors to
an external amplifying system. (With a hi-fi system use the AUX or TAPE connec-
tors, not the PHONO connector). To amplify the EC150 in mono, connect the single
L/MONO connector. Use the MASTER VOLUME slider to set the output volume.
See page 27.
5 DC IN connector: Connect the supplied AC/DC adapter to this connector.
12
1 2 3 4 5
Chapter 1
