Specifications; General Description - WAGNER LineCoat 820 Manuel D'utilisateur

Specifications

Specifications Common to All Sprayers
Maximum pressure ....................... 23 MPa (3300 PSI)
Halogenated solvent compatible .. Yes
Inlet paint filter .............................. 10 mesh "rock catcher"
Outlet paint filter ........................... 50 mesh, 18 in.2
Pump inlet..................................... 3/4" NPT(F)
Pump outlet .................................. 1/2" NPT(F) to paint filter
Paint filter hose connections......... 1/4" NPS(M)
Line width range ........................... 5–60 cm (2"–24")
Dimensions ................................... 150 cm L (59") x
Fluid section wetted parts:
Electroless nickel plated ductile iron, electroless nickel plated
carbon steel, stainless steel, tungsten carbide, Teflon, thiokol
impregnated leather, ultra high molecular weight polyethylene.
LineCoat 820
Liters per minute (LPM) ................ 4.9 (1.3 GPM)
Maximum tip sizes ........................ 1 gun = .036" (.91 mm)
Power ........................................... Honda 4.0 HP, 4-stroke, single
Fuel capacity ................................ 0.66 US gallons (2.49 liters),
Weight .......................................... 107 kg (235 lbs.)
Maximum spraying speed
(feet/minute, 4" line width) ............ 520 lineal feet (158 m)
Maximum spraying speed
(miles/hour, 4" line width) ............. 6 mph (9.7 kph)
LineCoat 840
Liters per minute (LPM) ................ 6.4 (1.7 GPM)
Maximum tip sizes ........................ 1 gun = .041" (1.0 mm)
Power ........................................... Honda 5.5 HP, 4-stroke, single
Fuel capacity ................................ 0.97 US gallons (3.67 liters),
Weight .......................................... 111 kg (235 lbs.)
Maximum spraying speed
(feet/minute, 4" line width) ............ 585 lineal feet (178 m)
Maximum spraying speed
(miles/hour, 4" line width) ............. 7 mph (11.3 kph)
GB
R
3/8" NPT(F) (plugged)
69 cm W (27") x
102 cm H (40")
2 guns = .026" (.66 mm)
cylinder, overhead valve
engine w/oil alert
approx. 3 hours run time
2 guns = .031" (0.79 mm)
cylinder, overhead valve
engine w/oil alert
approx. 3.5 hours run time
LineCoat 860
Liters per minute (LPM) ................ 7.6 (2.0 GPM)
Maximum tip sizes ........................ 1 gun = .046" (1.2 mm)
Power ........................................... Honda 5.5 HP, 4-stroke, single
Fuel capacity ................................ 0.97 US gallons (3.67 liters),
Weight .......................................... 116 kg (255 lbs.)
Maximum spraying speed
(feet/minute, 4" line width) ............ 685 lineal feet (209 m)
Maximum spraying speed
(miles/hour, 4" line width) ............. 8 mph (12.9 kph)

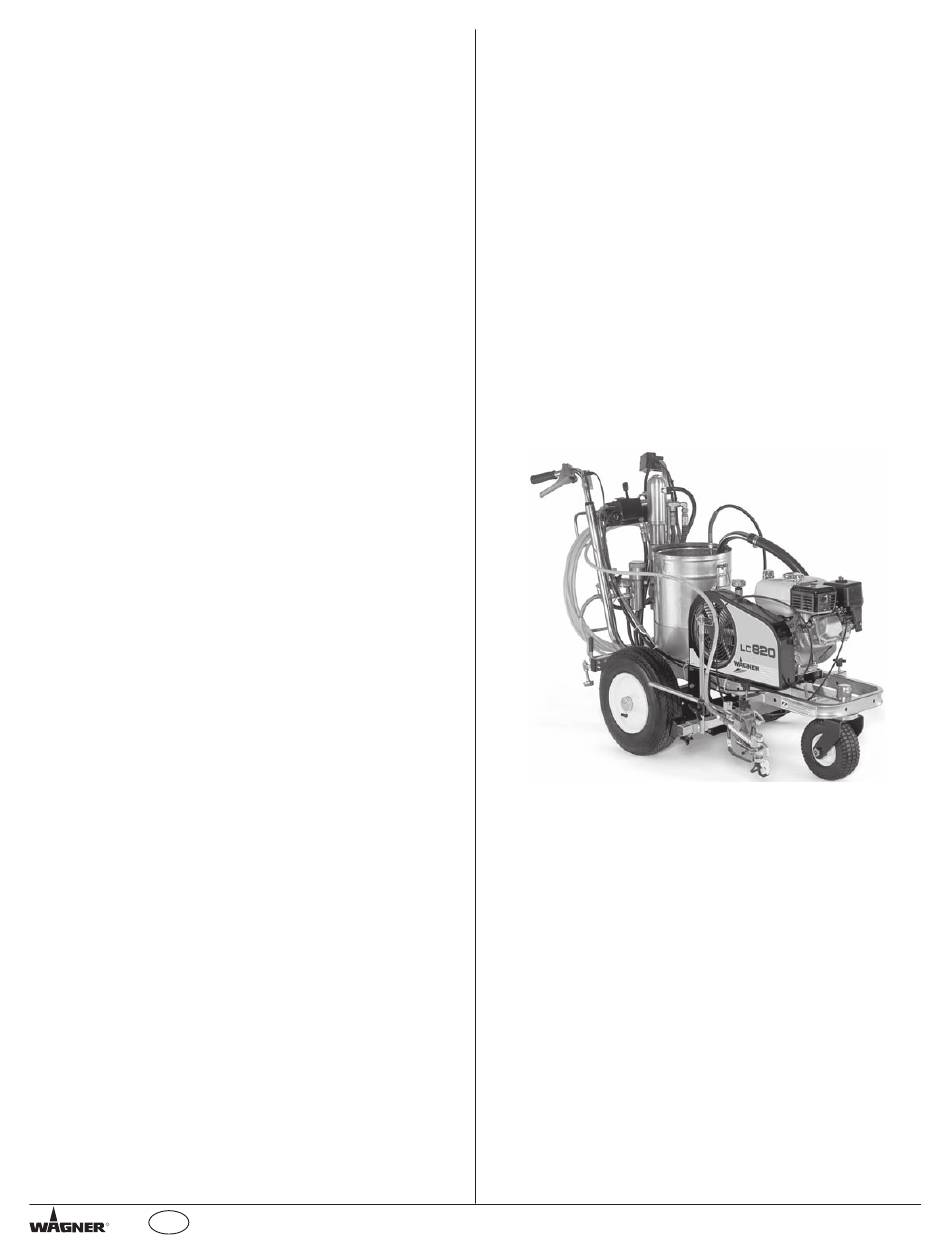

General Description

The line stripers described in this manual include the LineCoat
820, LineCoat 840, and LineCoat 860. These airless sprayers
are precision power tools used for spraying many types of
materials. Read and follow this Owner's Manual carefully
for proper operating instructions, maintenance, and safety
information.
4
2 guns = .033" (0.84 mm)
cylinder, overhead valve
engine w/oil alert
approx. 3.5 hours run time
