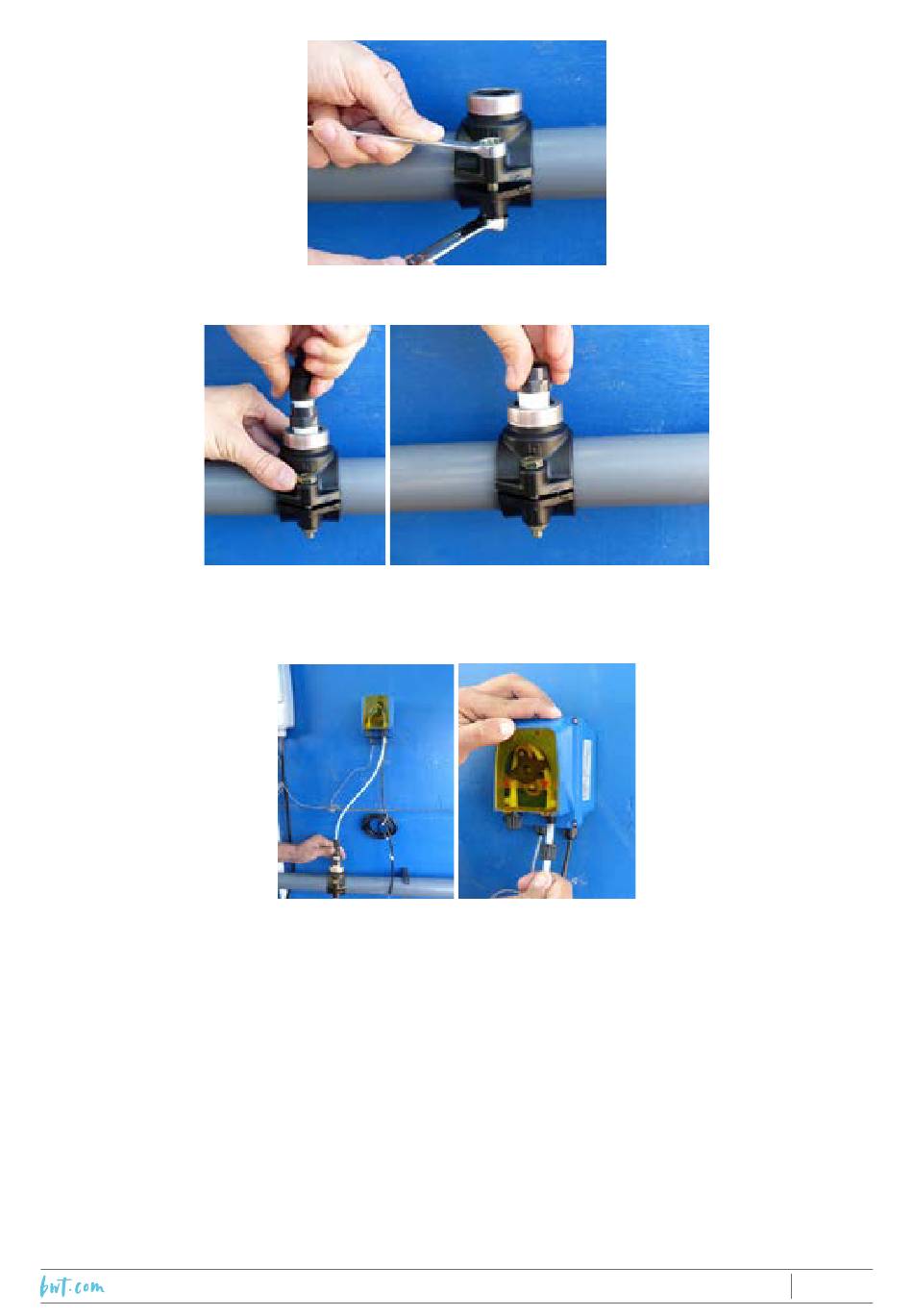

• Wrap the threads of the saddle clamp adapter (½ to ⅜) with Teflon tape and insert it into the saddle clamp.
Wrap the check valve threading with Teflon tape andinsert it into the adapter.
• Cut the tube supplied to the required length - this will become the injection tube. Attach one end to the outlet
of the acid pump (right side) and the other end to the check valve.
• Note the arrows visable on the transparent cover of the acid pump, these indicate the suction and injection
direction of the acid.
• Cut another piece of tube to the required length - this will become the suction tube. Attach one end to the
acid pump inlet (left side).
