TABLE OF CONTENTS
HEADING
•
Know your product
•
Description, specifications and instructions
•
General safety instructions
•
Additional safety rules for saws
•
Operating instructions
•
Maintenance
•
Guarantee

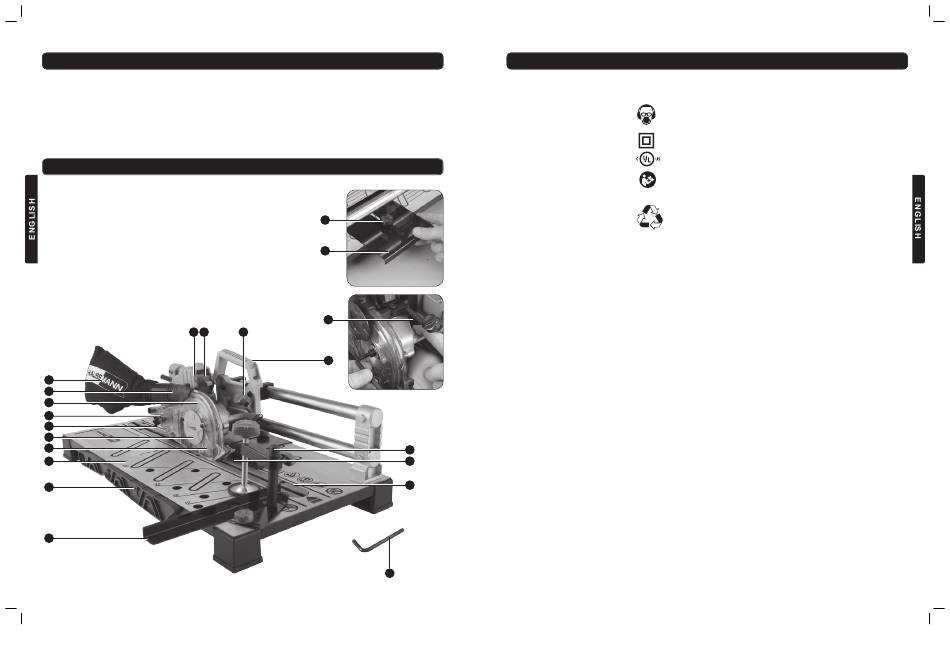

KNOW YOUR PRODUCT
1.
Table top
12. Slide lock knob
2.
Table insert
13. Mounted push stick
3.
ON/OFF switch with lock
14. Spindle lock
4.
Saw blade guard
15. Blade access cover
5.
Saw blade
16. Blade cut indicator
6.
Pull handle
17. Hex key
7.
Rip fence
18. Dust bag
19. Anti kickback device
8.
Rip fence lock
20. Anti kickback lock button
9.
Cross cut clamp
21. Thickness setting knob
10. Mitre gauge
11. Dust port
21
3
18
11
4
20
19
15
5
1
13
10
14
14
15
16
18
20
24
25
8
7
14
12
6
9
16
2
17
DESCRIPTION, SPECIFICATIONS AND INSTRUCTIONS
HEADING
DESCRIPTION OF SYMBOLS
The rating plate on your tool may show symbols. These represent important
information about the product or instructions on its use.
Wear hearing protection.
Wear eye protection.
Wear breathing protection.
Double insulated for additional protection.
Tool is listed by Underwriters Laboratories and listed to Canadian
Standards by Underwriters Laboratories
To reduce the risk of injury, user must read instruction manual.
ENVIRONMENTAL PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All
tools, hoses and packaging should be sorted, taken to the local recycling
centre and disposed of in an environmentally safe way.
SPECIFICATIONS
•
Voltage : 120V~ 60Hz
•
Power Input : 7 Amps
•
No Load Speed : 11,000 min
•
Blade : Ø 5" x 3/32" (Ø127 mm x 2.5 mm)
•
Bore : 11/16" (17 mm)
•
Blade Teeth : 14
•
Parallel rip cut : 0 – 4-13/16" (0 – 105 mm)
•
Max cross cut : 16-15/16" (430 mm)
•
Max depth of cut : 23/32" (18 mm)
•
Mitre cut : 0~10 micro, 15°, 20°,30°, 45°
•
Net Weight : 16.53 lbs (7.5 kg)
-1
15
