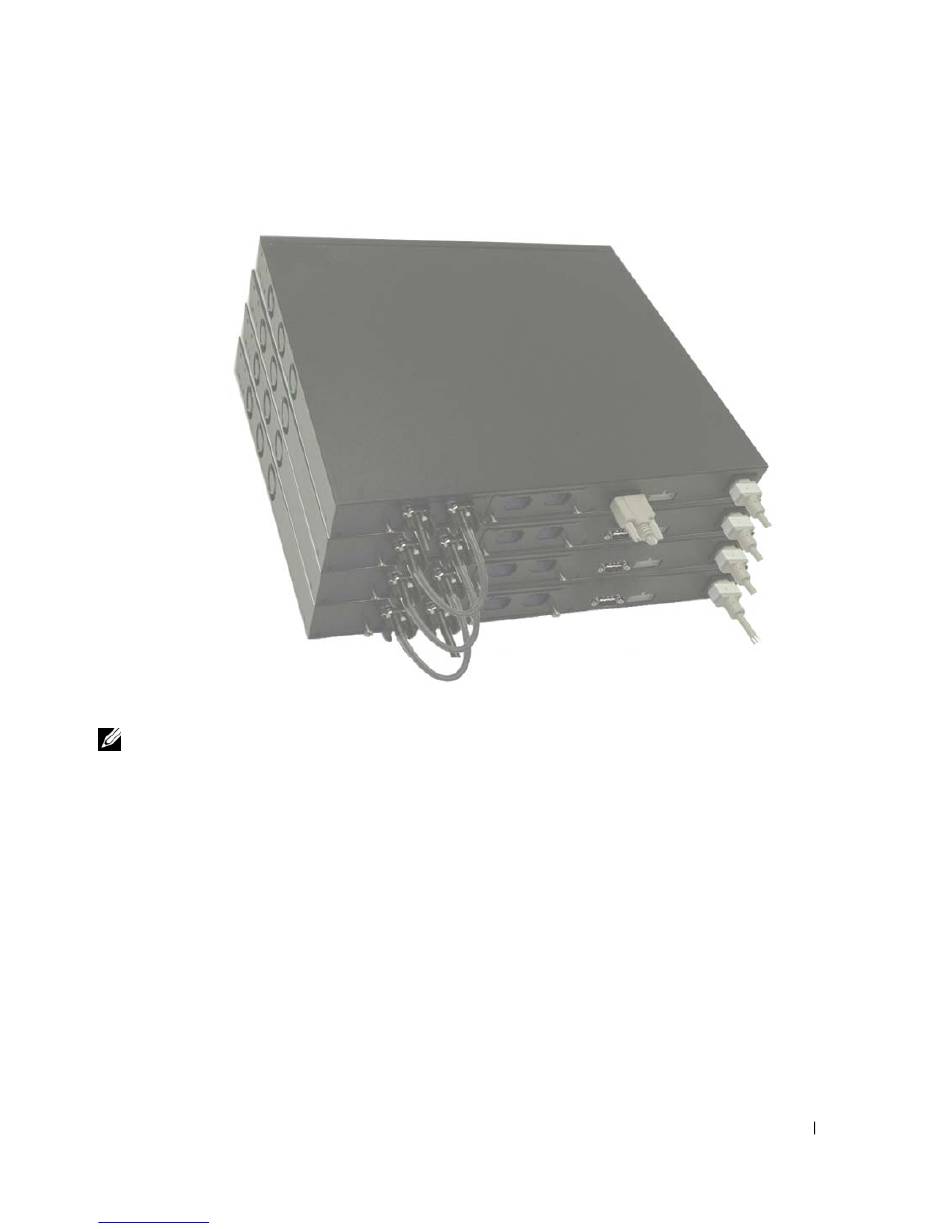

Figure 1-3. Connecting a Stack of Switches
NOTE:
Long cable not shown in Figure 1-3.
The resulting ring topology allows the entire stack to function as a single switch with resilient fail-over
capabilities.
9
Getting Started Guide
