Tools and Parts

Gather the required tools and parts before starting installation. The
parts supplied are in the washer drum.
Tools needed for connecting the water inlet hoses
■ Pliers (that open to 1 9 / " [39.5 mm])
16
■ Flashlight (optional)
Tools needed for connecting the drain hose
Locking pliers (that open to 1
■
Tools needed for installation
■ Open end wrenches 14 mm and 13 mm
■ Level
■ Wood block
■ Ruler or measuring tape

INSTALLATION REQUIREMENTS

/ " [39.5 mm])
9
16

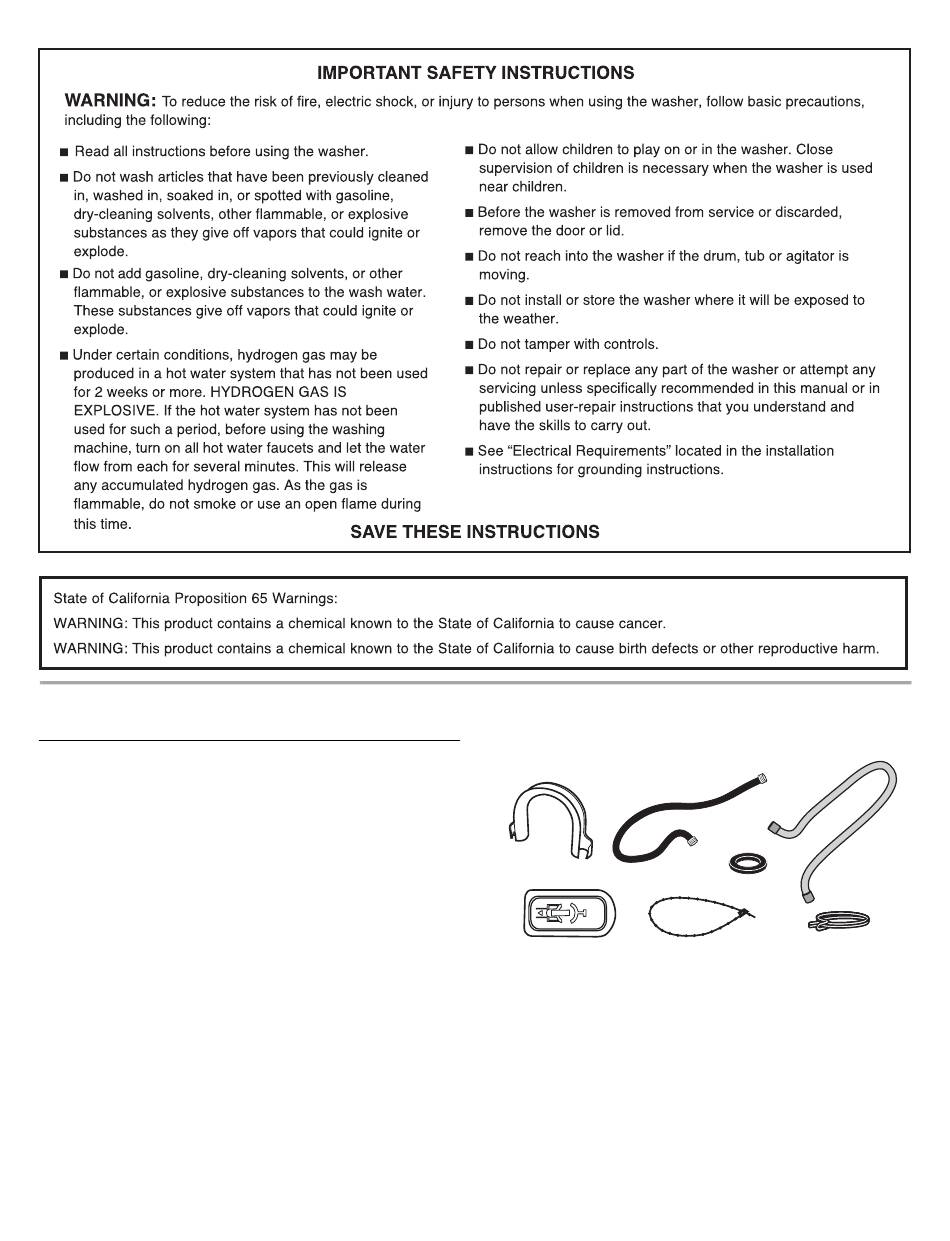

Parts supplied
A
D E
A. Drain hose form
B. Inlet hose (2)
C. Inlet hose washer (4)
D. Drain hose
B
C
F
G
E. Transport bolt hole plug (4)
F. Beaded strap
G. Hose clamp
3
