Slowdown ramp on EDGE input intervention
It determines how long the gear motor stops its movement following the stop caused by the intervention of the EDGE input.
PARAMETER
ebt
Reversal time on EDGE input intervention
Determines how long the gear motor performs the movement in the opposite direction following the stop caused by the intervention
of the EDGE input (only with IED = 1).
PARAMETER
ert
Auto-test function of the EDGE input
• Activation of the EDGE input auto-test function contributes to the achievement of safety standards
throughout the connected control line. Refer to the instruction manual of the connected device for the
degree of safety achieved.

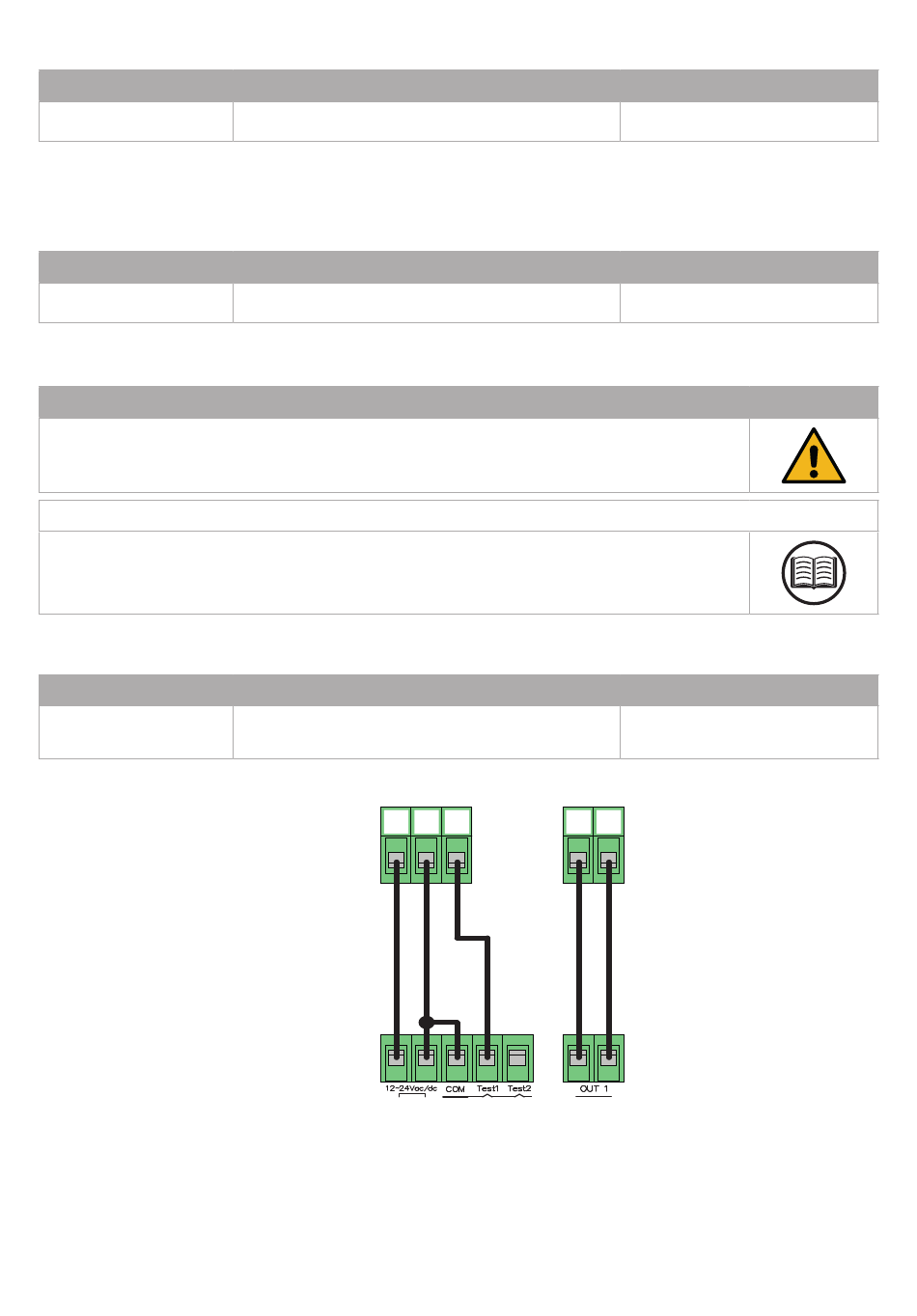

• To use this function correctly it is necessary to connect a device with electronic test circuit (e.g. R.CO.O).
Connect the device test contact to terminal 7 of the control unit, and enable the test with the low logic level
0Vdc.
By enabling this function, the control unit performs a functional test of the safety edge before each handling. The test, if enabled, is
not performed in case of fast reversals (for example, reversal caused by the intervention of a photocell).
PARAMETER
tEd
32 - English - Translated from the original language
VALUES
from 0 to 10 multiplied by 100 ms
VALUES
from 5 to 20 multiplied by 100 ms
WARNING
VALUES
OFF = disabled
ON = enabled
+24V
5
R.CO.O
NOTE
+24V
GND TEST EDGE
6 7 9
DEFAULT
10 = 1000 ms
DEFAULT
10 = 1000 ms
DEFAULT
OFF
10
