# TERMINAL
9 - 10

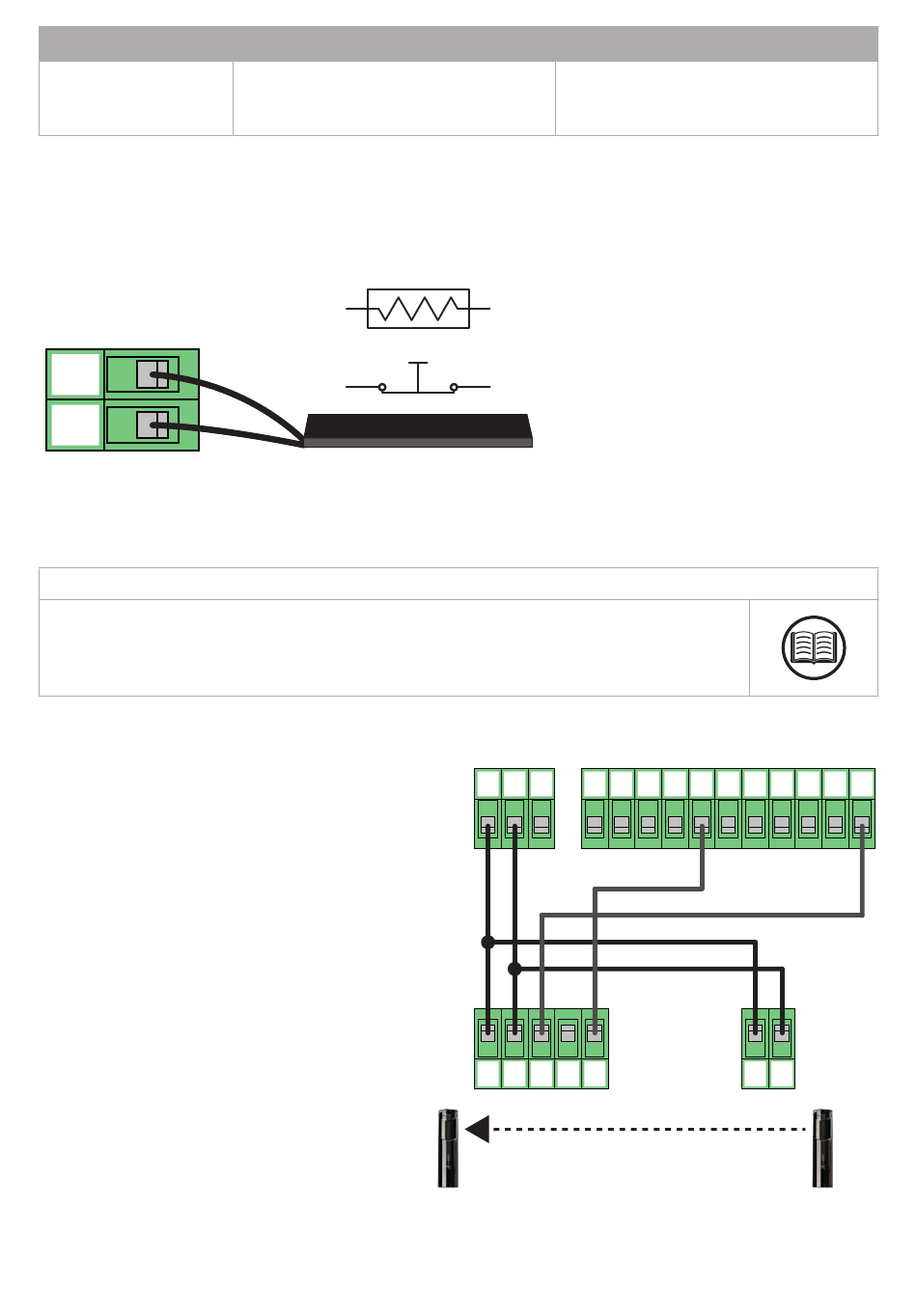

SAFETY EDGE input
During the closing movement, it stops the movement of the automation and performs a reversal until the gate reaches the OPEN
GATE position.
Refer to advanced parameters to configure the behavior of the sensitive edge input and the device type in use.
9
10
Once you have finished the connections, before starting the programming, check that all the red lights of
the safeties are on.
If this does not happen, verify that the un-connected inputs are disabled and that the connected devices are
properly powered and running.
Photocells Series FT / IRIS
Standard connections.
12 - English - Translated from the original language
FUNCTION
SAFETY EDGE
8K2
TYPE
MEC
Connect mechanical (NC) or resistive (8.2
Kohm) sensitive edges.
Signal LED Normally On.
NOTE
+24V
+24V GND TEST
5 6 7 8
RX
1 2 3 4 5
+ - COM NO NC
DESCRIPTION
PH1
9 10 11 12 13 14 15
1 2
+ -
6-1622521M - rev. 0 - 25/02/2025
COM
16 17 18
TX
