INSTALLATION CONTINUED
3. Mounting the Faucet
A. Apply 3-5 wraps of plumber's tape to faucet stem.

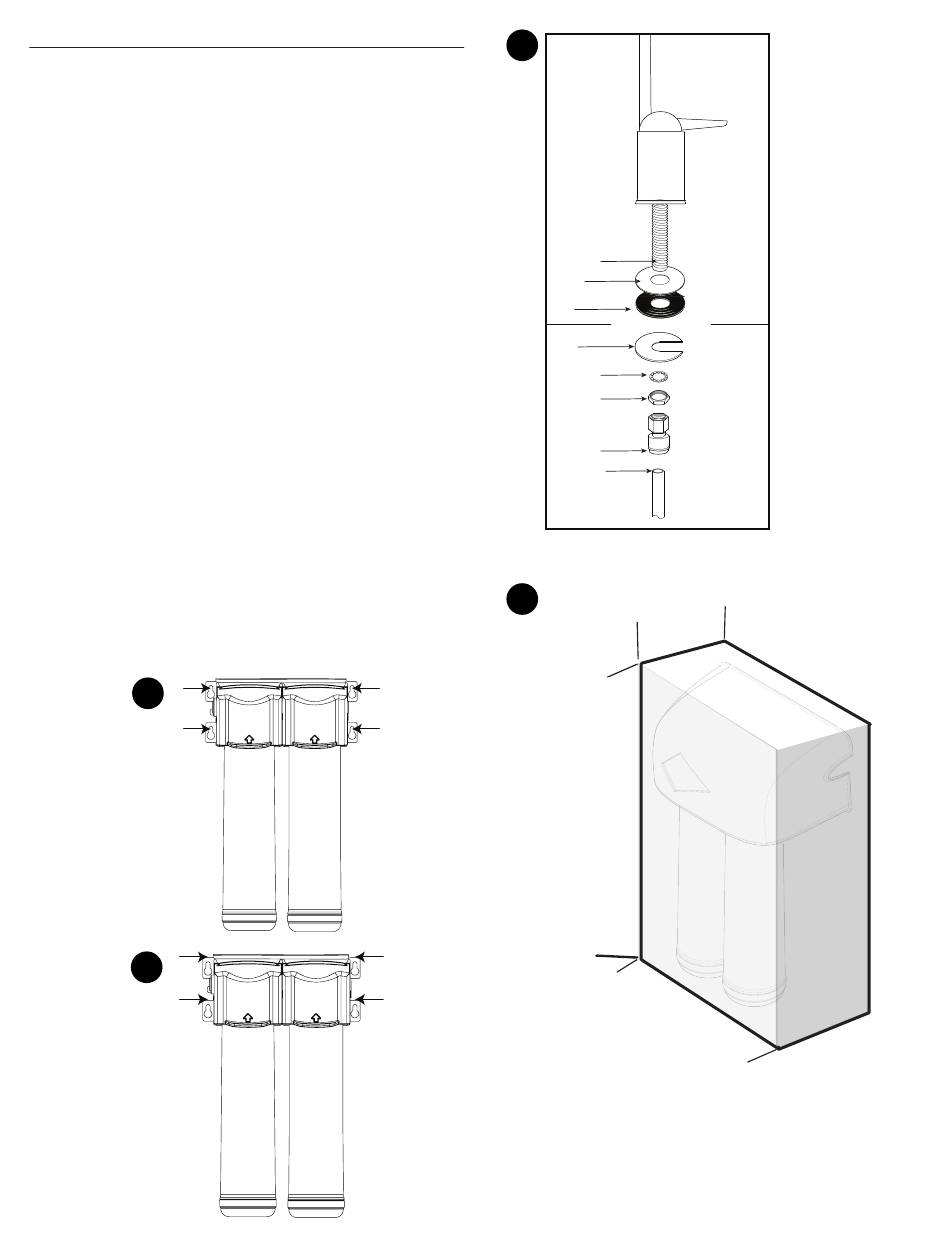

B. Assemble faucet as shown in Figure 3.
C. Screw quick connector onto threaded end of faucet stem.
D. Place a mark 5/8" from one end of the blue tubing. Wet the end
of the 3/8" tube and push into bottom of connector. The 5/8"
mark should be flush with the collar of the connector.
NOTE: To remove the tube, push on the fittings' collar and pull the
tube out.
E. Holding the faucet, feed the tubing through the hole in the sink.
Position the faucet handle at a desired location.
F. Center the faucet and slip slotted disc between the bottom of
the counter or sink and lock washer. Tighten the stem nut with a
wrench until it is tight.
G. Firmly insert spout into faucet base.
4. Mounting the System
A. Select a location under the sink, or other suitable area where the
system will be installed.
NOTE: The system carton can be used to determine the operational
footprint required for installation of the system and replacement
cartridges. (Figure 4a)
B. Mount the system vertically. Ensure mounting is level. Place
a pencil mark in the upper slots of the bracket mounting
holes. (Figure 4b). Alternate mounting option: If mounting the
system near the floor, place the pencil marks above each of the
mounting holes on the bracket to ensure enough space resides
below the cartridge and the floor for cartridge replacement
(Figure 4c). Use the 3/32" drill bit to create pilot holes for
mounting.
WARNING: The system should be mounted to a firm, solid surface
that is able to support the weight of the system.
4b
4c
3
4a
Filter
Filter
FRESHPOINT F2000-B2B Filtration System Installation and Operation Manual • 5
Faucet Stem
Chrome
Plate
Rubber
Washer
Counter Top
Slotted
Disk
Lock Washer
Stem Nut
Quick
Connector
3/8" Tubing
7" (178 mm)
Inlet
16.25" (413mm)
10.75" (273 mm)
Outlet
