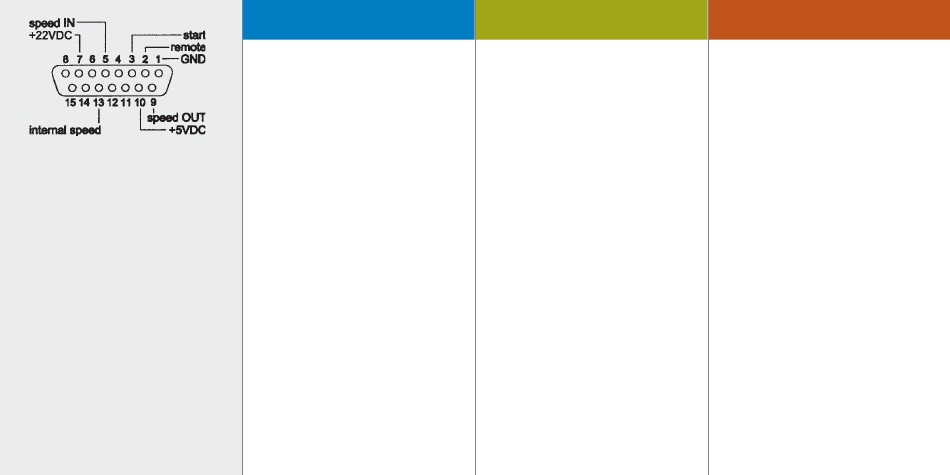

Digitale Eingänge (TTL-Pegel)
Digital inputs (TTL-level)
Entrées numériques (niveau TTL)
Pin 2,
remote
Pin 3,
start
Pin 13,
internal speed
Analog-Eingang
Analog input/ Entrée analogique
Pin 5, speed IN
0–5 V
/ 0–10 V
/0–20 mA / 4–20 mA
DC
DC
Analog-Ausgang
Analog output
Sortie analogique
Pin 9, speed OUT
0–10 kHz
REGLO-Z / -ZS ANALOG, 14-033, REV. C
Analogschnittstelle
Pin 7, +22V
DC
Es stehen ca. +22 V
zur Verfügung
DC
(max. Strom 0.2 A).
Pin 9, speed OUT
0–10 kHz Frequenz proportional zur
Drehzahl: 0–5000 min–1.
Pin 10, +5V
DC
Es stehen ca. +5 V
zur Verfügung.
DC
(max. Strom 0.1 A).
Pin 13, internal speed
Analogschnittstelle aktiviert (Pin 2 auf GND).
– Pin 13 offen: Die Drehzahl wird über Pin 5
(speed IN) vorgegeben.
– Pin 13 auf GND: Die Drehzahl kann
am Bedienungspanel der Pumpe
eingestellt werden.
Analog interface
Pin 7, +22V
DC
About +22 V
are available
DC
(max. current 0.2 A).
Pin 9, speed OUT
0–10 kHz Frequency proportional to the
rotation speed: 0–5000 rpm.
Pin 10, +5V
DC
About +5 V
are available.
DC
(max. current 0.1 A).
Pin 13, internal speed
Analog interface activated
(Pin 2 on GND).
– Pin 13 open: The rotation speed is adjusted
via Pin 5 (speed IN).
– Pin 13 on GND:The rotation speed can
be adjusted by the speed selector on the
control panel of the pump.
Interface analogique
Pin 7, +22V
CC
Environ +22 V
sont à disposition
CC
(courant maximal 0.2 A).
Pin 9, speed OUT
0–10 kHz Fréquence proportionelle au
nombre de tours: 0–5000 t/min.
Pin 10, +5V
CC
Environ +5 V
sont à disposition
CC
(courant maximal 0.1 A).
Pin 13, internal speed
Interface analogique activée
(Pin 2 sur GND).
– Pin 13 ouvert: La vitesse de rotation doit être
ajustée par le Pin 5 (speed IN).
– Pin 13 sur GND: La vitesse de rotation peut
être ajustée par le sélecteur de vitesse sur le
tableau de commande de la pompe.
