ORIENTATION & SERVICING PROCEDURE
PROCEDURE FOR 17" & 22" ROUND HOUSING

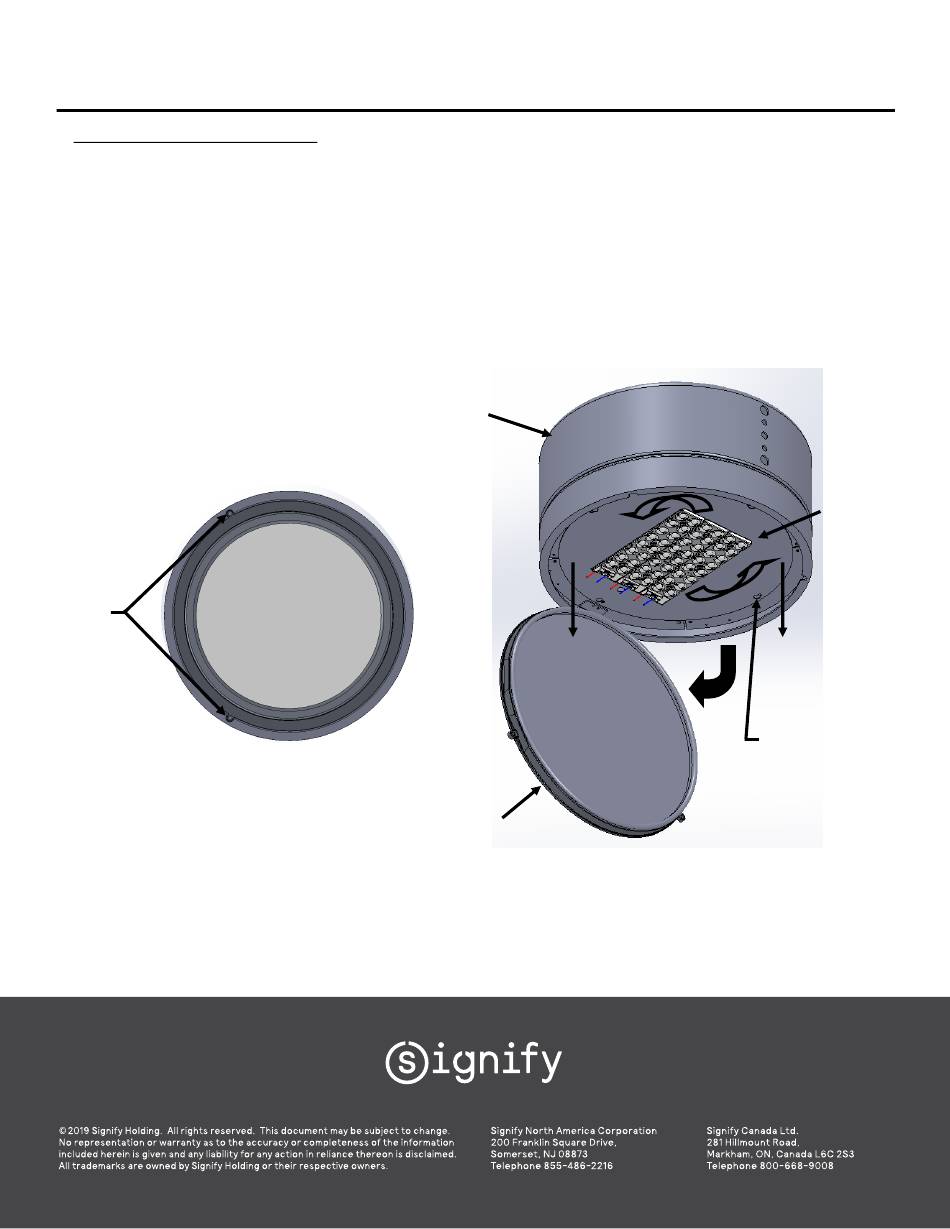

LENS DOOR: Open lens door by loosening 2 #8-32 screws (captive) and carefully allow door to swing down. Door is retained by hinge bracket and can
be removed if necessary. See Fig 10 & 11.
REFLECTOR: After opening lens door, the reflector may be removed if desired. LED and reflector assembly can be rotated in any direction based on the
lighting application. Ensure that reflector is orientated in the correct position for your application. See Fig. 8 for light direction example. Loosen 4 #8-32
screws and carefully rotate reflector assembly counter clockwise to disengage the keyhole slots. Allow reflector to drop down just enough to clear screw
heads and rotate assembly to the desired position. Make sure keyhole slots clear screws and push reflector up and rotate clockwise to engage slots.
Secure reflector by tightening the 4 reflector screws. Install lens door and secure with the 2 screws.
Door
Screws
(2)
2/20/2020
page 4
www.gardcolighting.com
CA,MA17/22
HOUSING
Fig. 10
LENS DOOR
ASSEMBLY
REFLECTOR
SCREWS (4)
Fig. 11
PN 442295163171 Rev B
REFLECTOR
ASSEMBLY
