ORIENTATION & SERVICING PROCEDURE
PROCEDURE FOR 14" SQUARE HOUSING

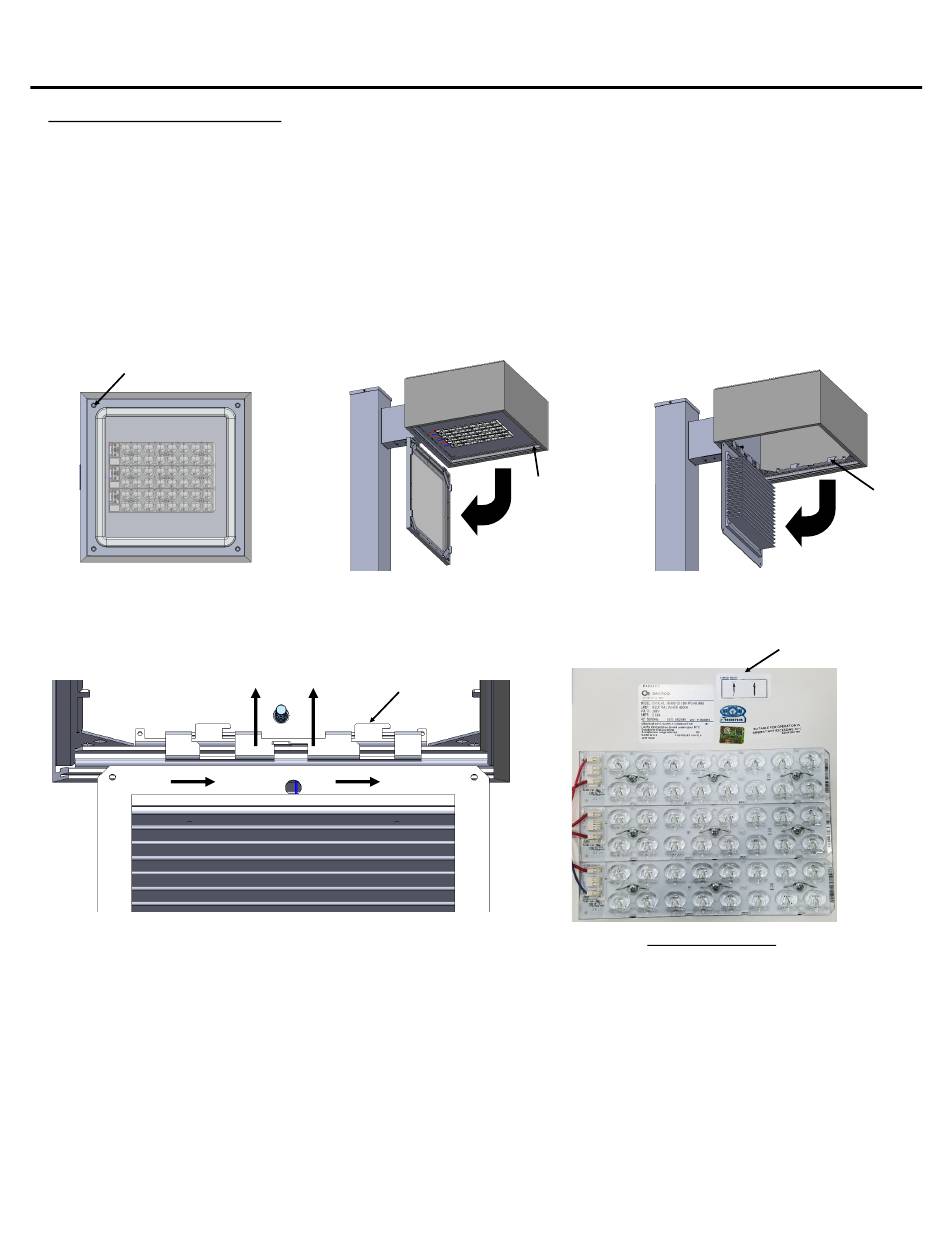

LENS DOOR: Open lens door by loosening 4 #8-32 screws (captive) and carefully allow door to swing down. Door is held by safety cables and can be
removed if necessary. See Fig 4 & 5.
REFLECTOR: After opening lens door, the reflector may be hinged down or removed if desired. LED and reflector assembly can be rotated in any direc-
tion based on the lighting application. Ensure that reflector hinges on the correct side for your application. See Fig. 8 below for light direction example.
Loosen 4 #8-32 screws (captive) and carefully allow reflector assembly to hinge down 90º (Fig. 6). The reflector can be removed by sliding assembly to
the right and lifting up while slightly angling (around 20º) to unlock tabs (Fig. 7). Hinge reflector assembly on correct tabs and follow directions in reverse
to complete installation.
Door Screws
Fig. 4
2/20/2020
page 2
www.gardcolighting.com
Fig. 5
Locking Tabs
2
1
Fig. 7
Reflector
Screws
Reflector Assembly
Fig. 8
Hinge Tabs
Fig. 6
Light direction
PN 442295163171 Rev B
