ORIENTATION & SERVICING PROCEDURE
PROCEDURE FOR 19" SQUARE HOUSING
General: Lens doors are equipped with spring loaded latch and hinge pins which engage slots located in the corners of the luminaire housing. Lenses may hinge
from any one of three sides of luminaire.
All reflectors are equipped with fixed hinge pins and spring loaded latches which engage reflector hinge brackets attached at each corner inside the housing. Reflec-
tors are designed to be installed in one of three possible positions as outlined in the attached "reflector orientation" sheet.
Lens Door: Opening of lens door is accomplished by sliding the two exposed latch tabs toward each other and hinging door downward. After lens door is open, it
may be removed by sliding the release latch tab located on the hinge side of door, toward center of door frame. This will free one hinge pin from luminaire housing
allowing door to be removed. When replacing lens, make sure it hinges on the opposite side than the reflector hinges.
Reflector: After opening or removing lens door, the reflector may be opened or removed if so desired. Remember all reflectors can hinge on the front side of the
luminaire housing or on either of the adjacent sides. Make sure reflector hinges on the correct side for your application as lighting performance is affected. Refer to
Fig. 8 for light direction example. Open reflector by sliding the two reflector latch tabs toward each other and hinging reflector downward. To remove reflector, grasp
reflector (in opened position) using both hands and gently lift upward and toward side of luminaire housing to which it is attached. This will free reflector from hinge
brackets, allowing it to be removed.
REFLECTOR
LATCH/HINGE
BRACKET (4)
HINGE SIDE
INNER
LATCH
TAB
LENS DOOR
ASSEMBLY
2/20/2020
page 3
www.gardcolighting.com
DOOR LATCH
TABS (2)

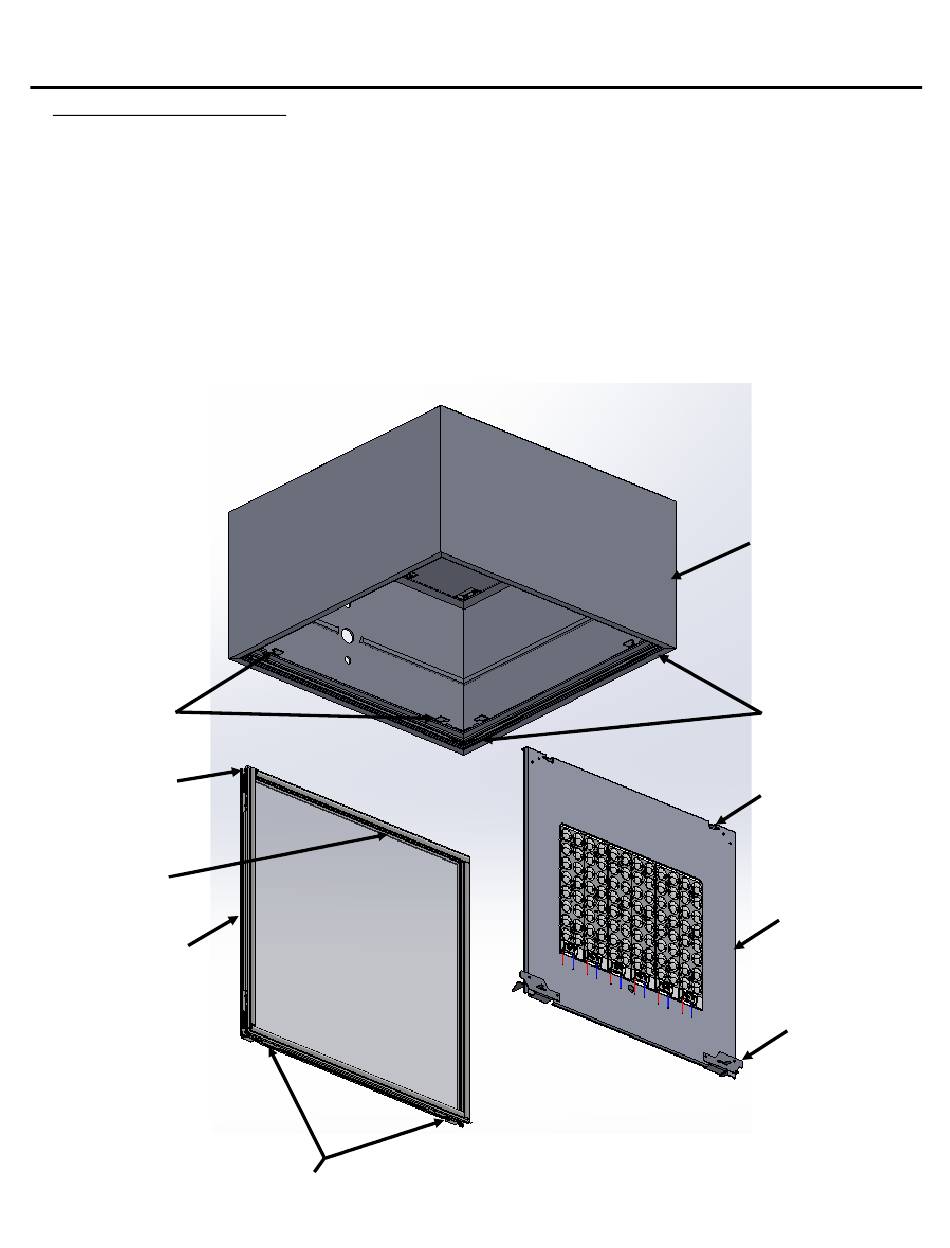

Fig. 9
LUMINAIRE
HOUSING
DOOR LATCH/
HINGE SLOT (4)
REFLECTOR
HINGE SLOT (2)
REFLECTOR
ASSEMBLY
REFLECTOR
LATCH (2)
PN 442295163171 Rev B
