SIGNIFY GARDCO EH14 Mode D'emploi

EH14,19 HOUSING
OR
CA/MA17,22 HOUSING
LONG TIE ROD
HEX NUTS
LOCK WASHERS
FLAT WASHERS
POLE BOLSTER PLATE
POLE CAP

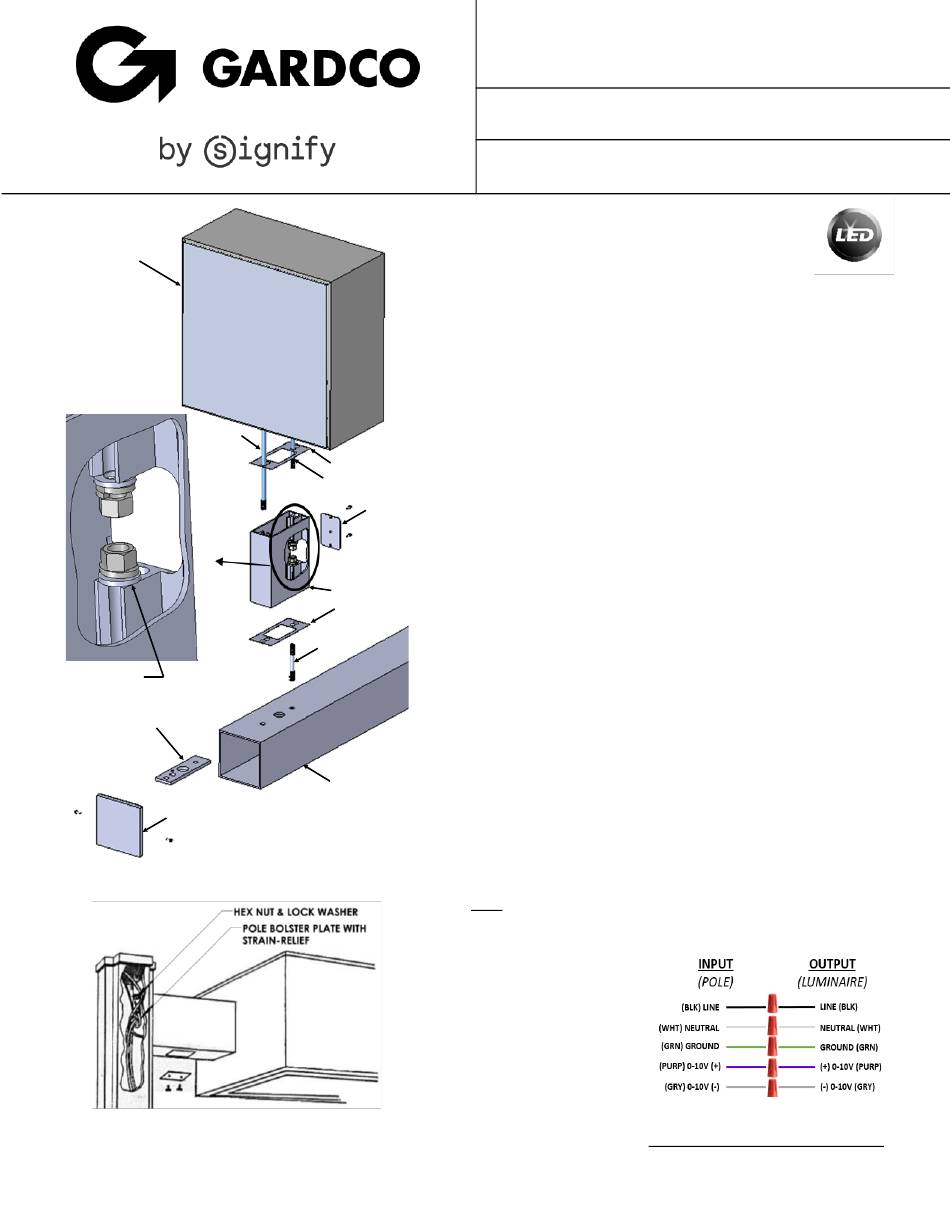

Fig. 1
Fig. 2
NOTE: A square pole is shown for illustration purposes. Installation procedures to
round poles are the same except the arm provided is radiused at the pole end.
2/20/2020 page 1 www.gardcolighting.com
INSTALLATION PROCEDURE
1. Place pole base edge on the concrete base close to the projecting anchor bolts so that
the pole can be raised into position with the luminaire properly oriented.
2. Place saw-horse or similar support under pole near the top end so that pole top is
sufficiently raised to allow for easy mounting of luminaire. NOTE: Poles are pre-drilled
with holes for arm mounting.
3. Remove pole cap.
4. Pull field wiring leads through pole leaving sufficient leads above the pole to make
connections in the pole.
GASKET
MEDIUM TIE ROD
5. Place pole bolster plate over three holes near inside top of pole with tapped hole at
bottom. (See Fig. 1.)
COVER PLATE
6. Thread short tie rod into lower tapped hole in pole bolster plate. (See Fig. 1.)
7. Slip gasket and supporting arm over the tie rod projecting from the pole and secure
with lockwasher and hex nut using an open end wrench through the hand hole in the
arm. (See Fig. 2.)
8. Thread the long and the medium tie rods into the luminaire end. (See Fig. 1.) Place
SUPPORT ARM
gasket over rods and luminaire leads. Guide rods through the appropriate tracks in the
GASKET
extruded aluminum arm and pull luminaire leads into the arm and through the center
hole of the pole. Slip long tie rod through clearance hole in the pole and bolster plate
and secure with hex nut and lockwasher. Secure the medium tie rod to the supporting
SHORT TIE ROD
arm with hex nut, flat washer, and lockwasher using an open end wrench through the
hand hole.
9. Level luminaire and torque nuts to 25ft. lbs.
10. Splice field wires to luminaire leads in pole (input and grounding) and tie with strain
relief on bolster plate. (See Fig. 3)
11. Replace cover plate.
12. Replace pole cap.
POLE
13. If product is using non-comfort pixilated light engines, make sure reflector is oriented
properly for your application. The page entitled "Servicing Procedures" explains how
to remove or re-orient reflector and lens.
14. Installing photocontrol (where applicable). Loosen two screws on top of photocontrol
receptacle and rotate receptacle until "North" arrow on receptacle points North. Make
sure receptacle is centered in its mounting hole, tighten screws, and install photocon-
trol.
NOTE: It is not necessary to open up the luminaire except for changing reflector
orientation. Instructions for future servicing are shown on opposite side of this sheet.
WIRE CONNECTIONS
Once luminaire is installed and hardware
is properly torqued, make supply wiring
connections according to the appropriate
wiring diagram.
Site & Area
Form 10 Square & Round
EH14,19; CA/MA17,22
(See Fig. 2.)
* 0-10V AND OVERRIDE WIRES OPTIONAL
Fig. 3
PN 442295163171 Rev B
