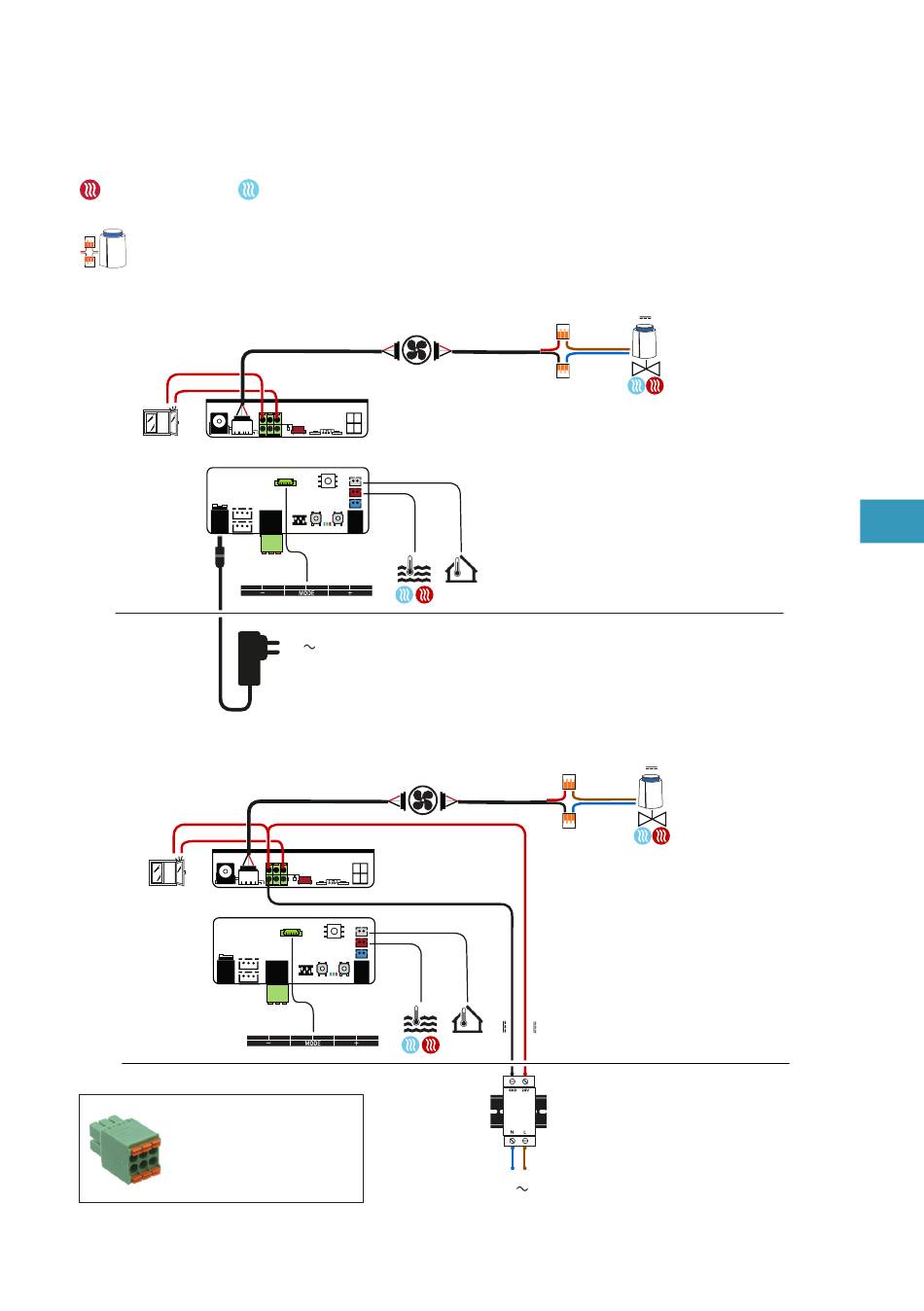

3.2. ELECTRICAL CONNECTION
Upon recognising the correct water temperature, the fan will modulate depending on the difference between the
measured room temperature and the desired room temperature.
tw > 28C
the user chooses the desired room temperature on the control panel in heating or cooling. the thermoelec-
tric valve will stay open until the room temperature is reached.
3.2.1. 230VAC
V o e d i n g : D I N - r a i l V o e d i n g
C o n t r o l l e r : T P T ( 2 P ) [ D P C . H C A 5 2 3 ]
3.2.2. DIN RAIL POWER SUPPLY
Stiff wire cross-section
0,2-1,5mm² (26-16 AWG)
Stripping length 10mm
