WALL REMOTE - WRCPF-KIT

Can be used for 120V or 240V installations
•
Battery or 24V powered
•
50' (15m) control range
•
• Built in Thermostat
Flame On/Off Control
•
Heat On/Off Control
•

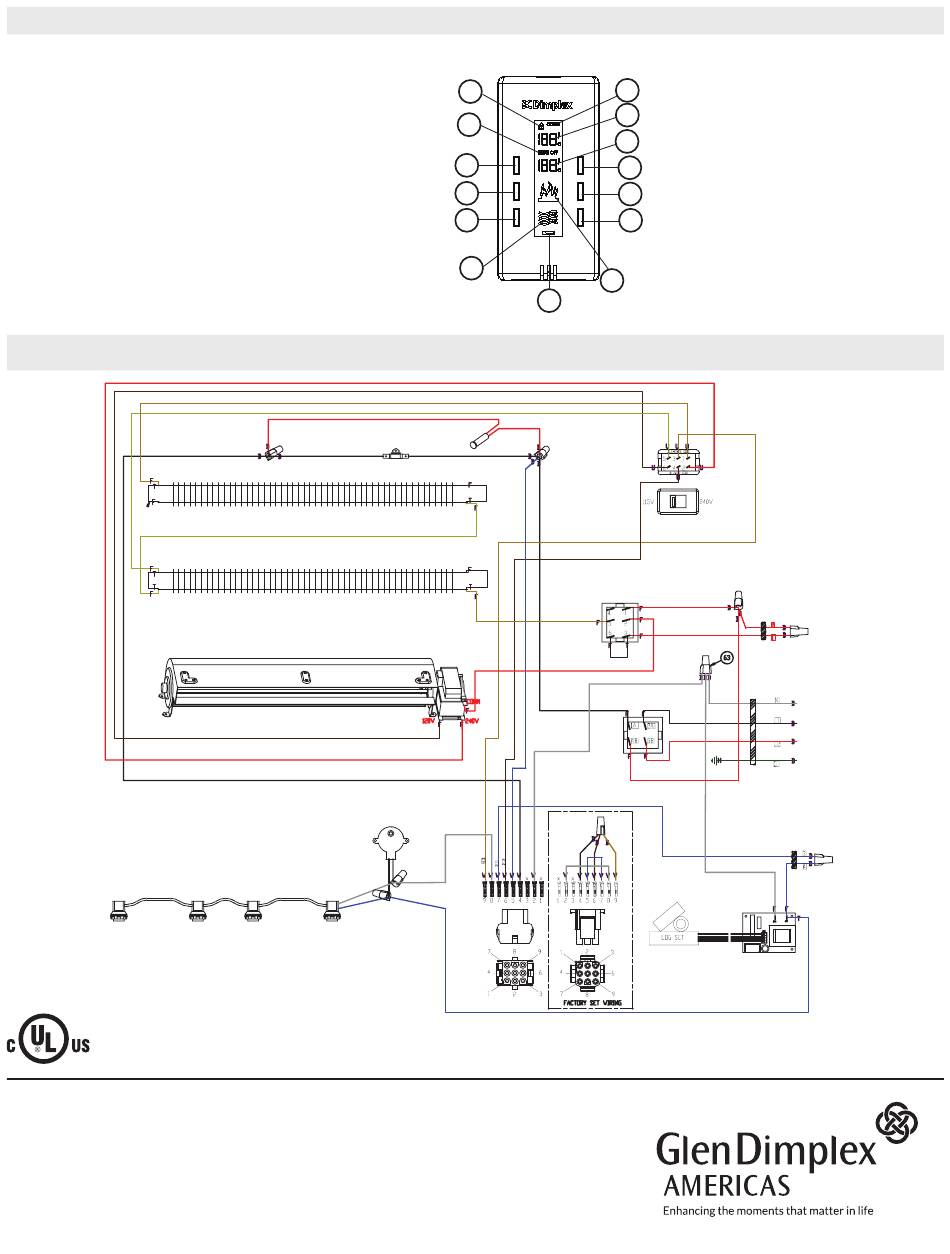

UNIT INTERNAL WIRING DIAGRAM

1-888-346-7539 | www.dimplex.com
In keeping with our policy of continuous product improvement,
we reserve the right to make changes without notice.
© 2018 Glen Dimplex Americas
7
6
1
5
2
8
9
10 11
12 13
4
3
14
!
1. Room Temperature
2. Set Temperature
3. Flame Effect
4. Fan
5. Heat Off Indicator
6. Function Lock Indicator
7. RF Code Function Indicator
8. Set Temperature Down
9. Set Temperature Up
10. Flame Off
11. Flame On
12. Fan Off
13. Fan On
14. Low Battery Indicator
NOTE: Standard models
do not have a log driver
