First Steps SET101
4
Connection and initial operation
All the LZV200 connections are designed as pluggable terminal
screws.

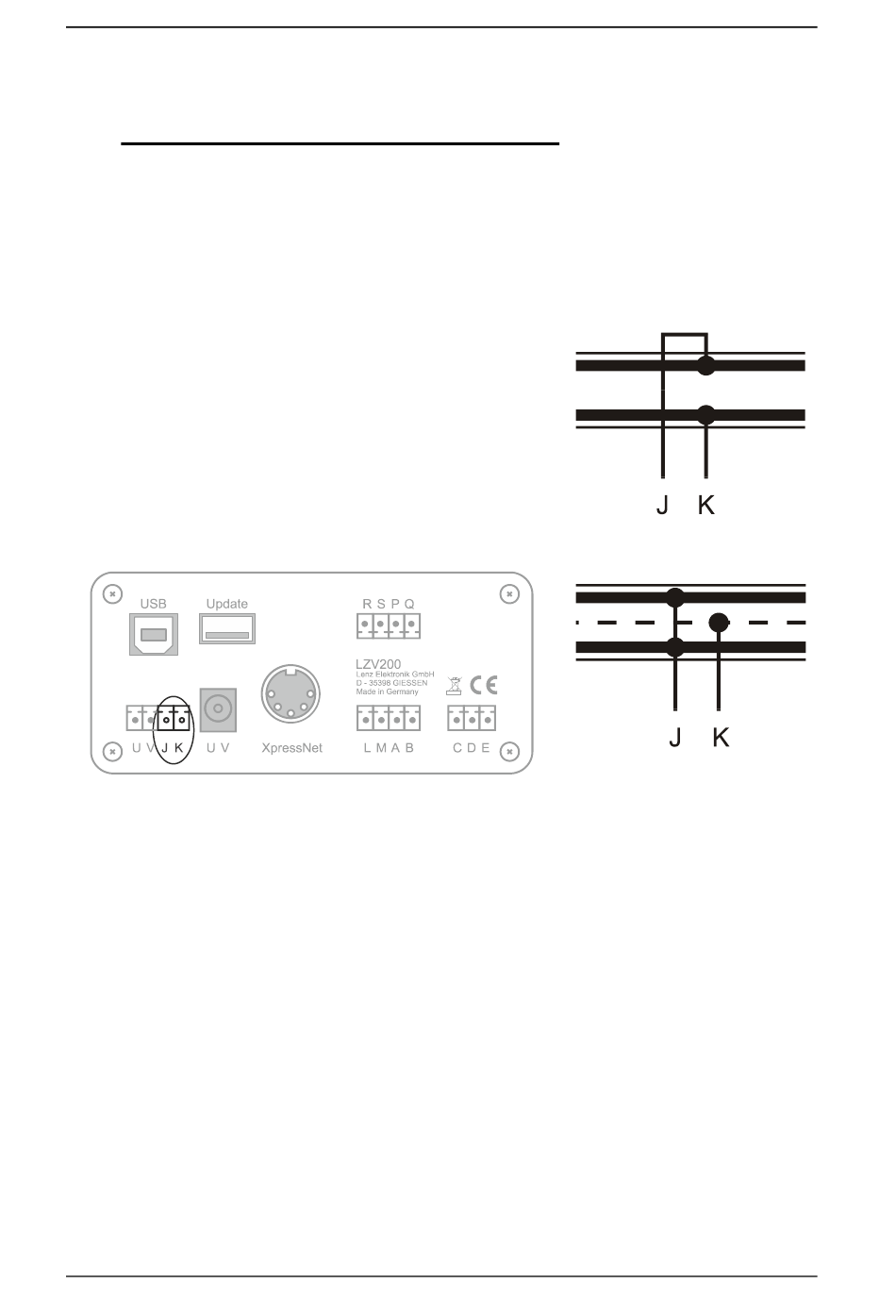

4.1 Connecting the LZV200 to the tracks
Connect terminals J and K of the LZV200 to
the siding track of your model railway:
Connection: 2-wire tracks
Connection: track with
neutral wire
The LZV200 track connection
No radio interference suppression capacitors may be installed in the
track system. These capacitors are necessary only for the interference
suppression in conventional operation. If used with the Digital plus
system, however, they would only distort the data format and interfere
with the fault-free transmission of data.
