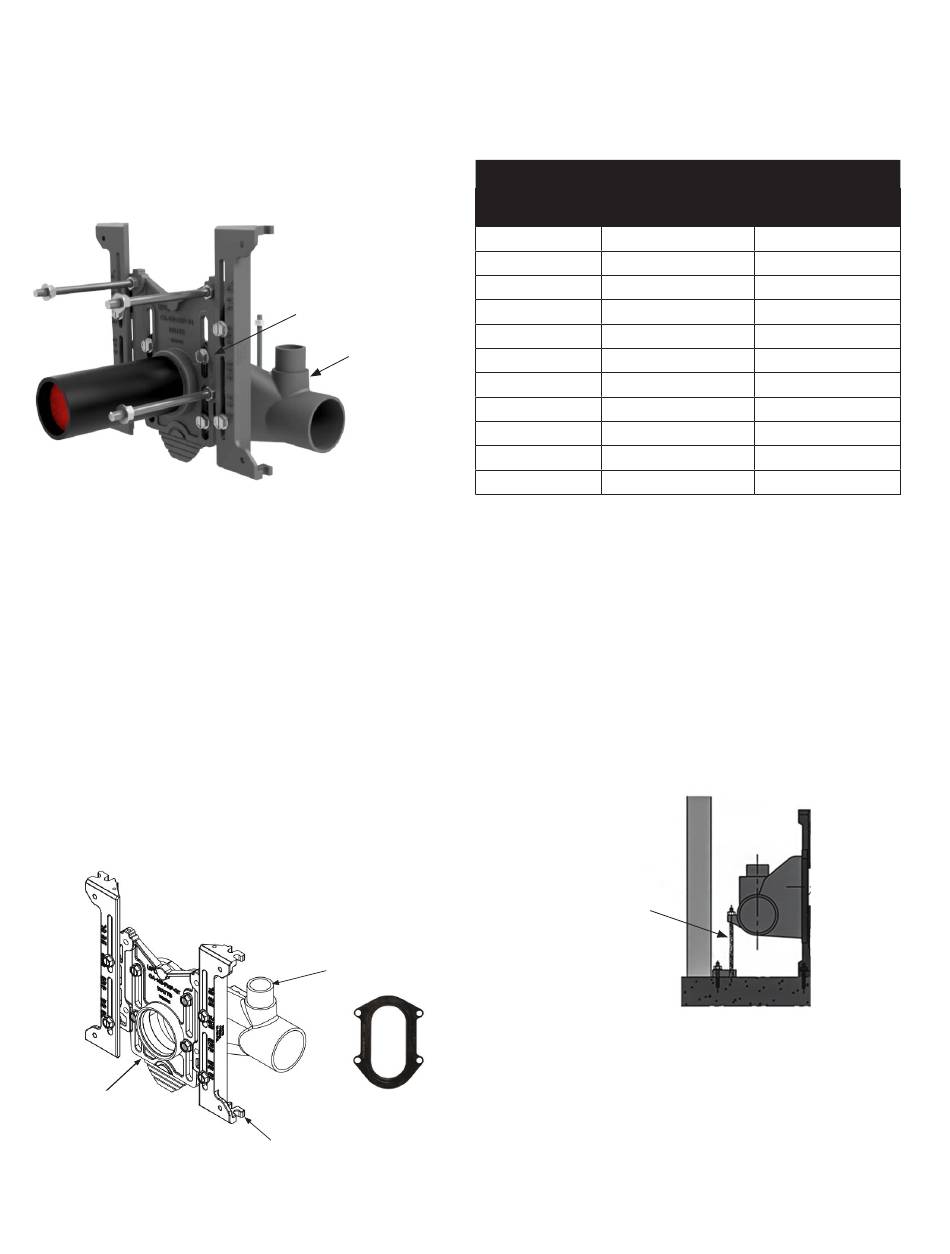

QT Threaded Water Closet Carriers typically ship in two
components. (1) Partially assembled Faceplate Assembly and
(1) Fitting (L/R or D). The carrier faceplate assembly anchors to
the floor and supports the bowl. The carrier fitting attaches to
the rear of the faceplate assembly, and connects to the sanitary
piping system.
Carrier Installation
1. After removing the faceplate assembly from it's packaging,
locate the rough-in dimensions for the fixture outlet centerline
from the floor on the bowl manufacturer's rough-in sheet. All
Watts carriers will be preset to 5-1/2". For low rough-ins, the
rounded bottom of the faceplate may need to be removed
along the scoring line.
2. Attach each carrier upright to a concrete floor with a
minimum of one 1/2" diameter anchor bolt (supplied by
others).
3. Position the oval fitting gasket between the faceplate and
the fitting, with the gasket lip facing back towards the fitting.
Making sure the oval gasket is properly seated, loosely
attach the faceplate assembly to the carrier fitting through the
gasket ears with four 1/2" flanged hex bolts (supplied).
Faceplate
Faceplate
Faceplate Assembly
Carrier Fitting
Fitting
Fitting
Fitting Gasket
Fitting Gasket
Upright
Upright
4. Adjust the carrier fitting to the desired height before tightening
the fitting to the faceplate. Reference Battery Pitch and
Rough-in Requirements to determine the minimum and
maximum fitting centerline heights to configure horizontal
carrier batteries.
BATTERY PITCH & ROUGH-IN REQUIREMENTS
C/BOWL OUTLET FROM
MIN. C/L HORIZ. WASTE FROM
FLOOR
4 1/2"(115)
5"(127)
5 1/2"(140)
6"(152)
6 1/2"(165)
7"(178)
7 1/2"(191)
8"(203)
8 1/2"(216)
9"(229)
9 3/8"(239)
5. Once the faceplate and fitting heights are set, ensure the four
upright bolts and four fitting bolts are securely tightened.
6. Secure the rear anchor support rod through the boss on
the back of the carrier fitting with two hex nuts and washers
(supplied) and adjust the height. Attach the fitting with two
hex nuts and washers (supplied) and adjust the height. Attach
the anchor foot to a concrete floor using a 1/2" dia. anchor
bolt (supplied by others).
Rear Anchor
Support
2
MAX. C/L HORIZ. WASTE
FLOOR
FROM FLOOR
3"(76)
4 1/2"(115)
3"(76)
5"(127)
3"(76)
5 1/2"(140)
3"(76)
6"(152)
3 1/4"(82)
6 1/2"(165)
3 5/8"(92)
7"(178)
4 1/8"(105)
7 1/2"(191)
4 5/8"(118)
8"(203)
5"(127)
8 1/2"(216)
5 3/8"(137)
9"(229)
5 3/4"(146)
9 3/8"(239)
Pipe Chase
