BO600RP/W/RH, BO900RP/W, P300RP/W, P600RP/W
EN
For 3-Maglock Handles Only

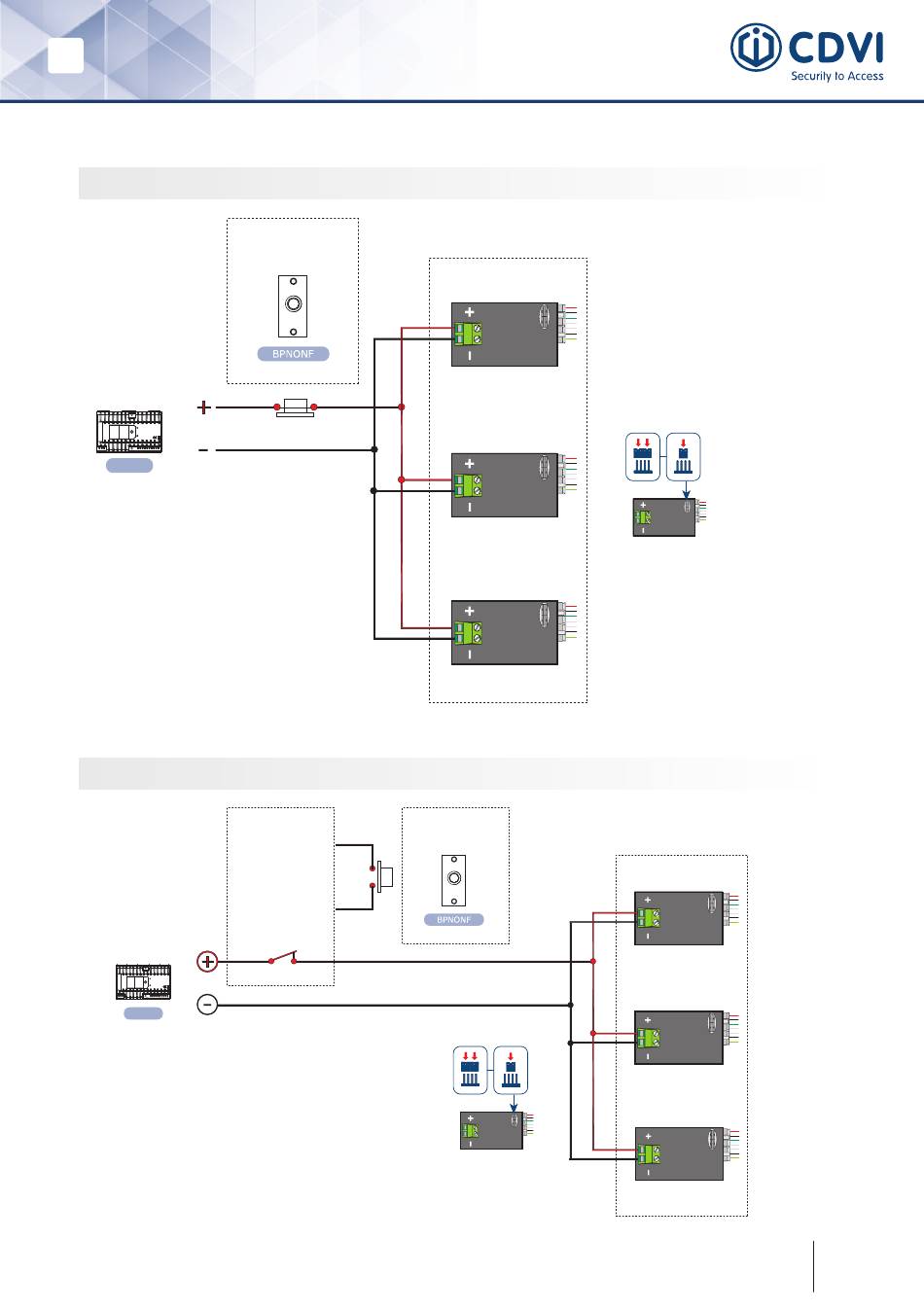

Example N°1: Exit button only (VHLD timer optional)
Voltage 12Vdc
or 24Vdc
ADC
BO900RP / BO900W RANGE
Example N°2: Access Control + Exit Button
Voltage 12Vdc
or 24Vdc
ADC
Vertical & horizontal architectural handles
Exit
Button
3 x 300KG magnetic locks
Access
Control
Unit
BO900RP / BO900W RANGE
MAGNETIC LOCK
N°1
MAGNETIC LOCK
N°2
MAGNETIC LOCK
N°3
Exit
Button
12Vdc 24Vdc
3 x 300KG magnetic locks
12Vdc 24Vdc
MAGNETIC LOCK
N°1
MAGNETIC LOCK
N°2
MAGNETIC LOCK
N°3
