BO600RP/W/RH, BO900RP/W, P300RP/W, P600RP/W
Vertical & horizontal architectural handles

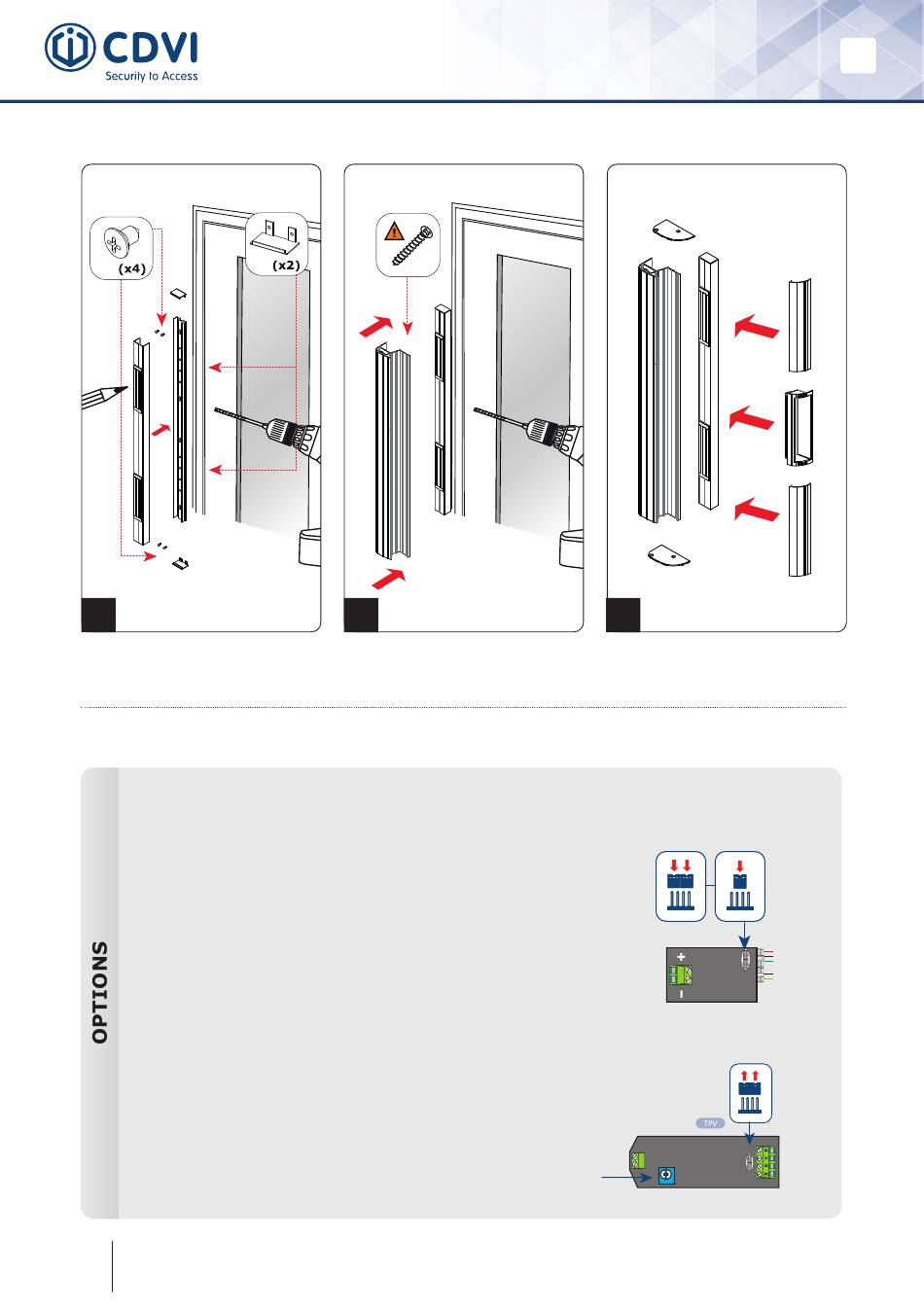

Example: Installation of a vertical 2-maglock handle
1
6] WIRING AND CONNECTIONS
Important: Position the voltage selection jumper according to your voltage.
5-WAY TERMINAL STRIP NON-MONITORED VERSION
+ 12Vdc or 24Vdc positive *
- 12Vdc or 24Vdc negative *
5-WAY TERMINAL STRIP MONITORED VERSION
+ 12Vdc or 24Vdc positive *
- 12Vdc or 24Vdc negative *
NC Contact «Normally Closed»
COM Common
NO Contact «Normally Open»
TIME RELAY FOR MAGNETIC LOCKS (REF: TPV)
Important: When using a timer in circuit, ensure that
the voltage used will operate at the same voltage.
* Depending on the jumper placement, the
maglock has a power supply of 12Vdc or 24Vdc.
6
2
Adjustable timer
(0 to 20 seconds)
3
12Vdc 24Vdc
EN
