BO600RP/W/RH, BO900RP/W, P300RP/W, P600RP/W
Vertical & horizontal architectural handles

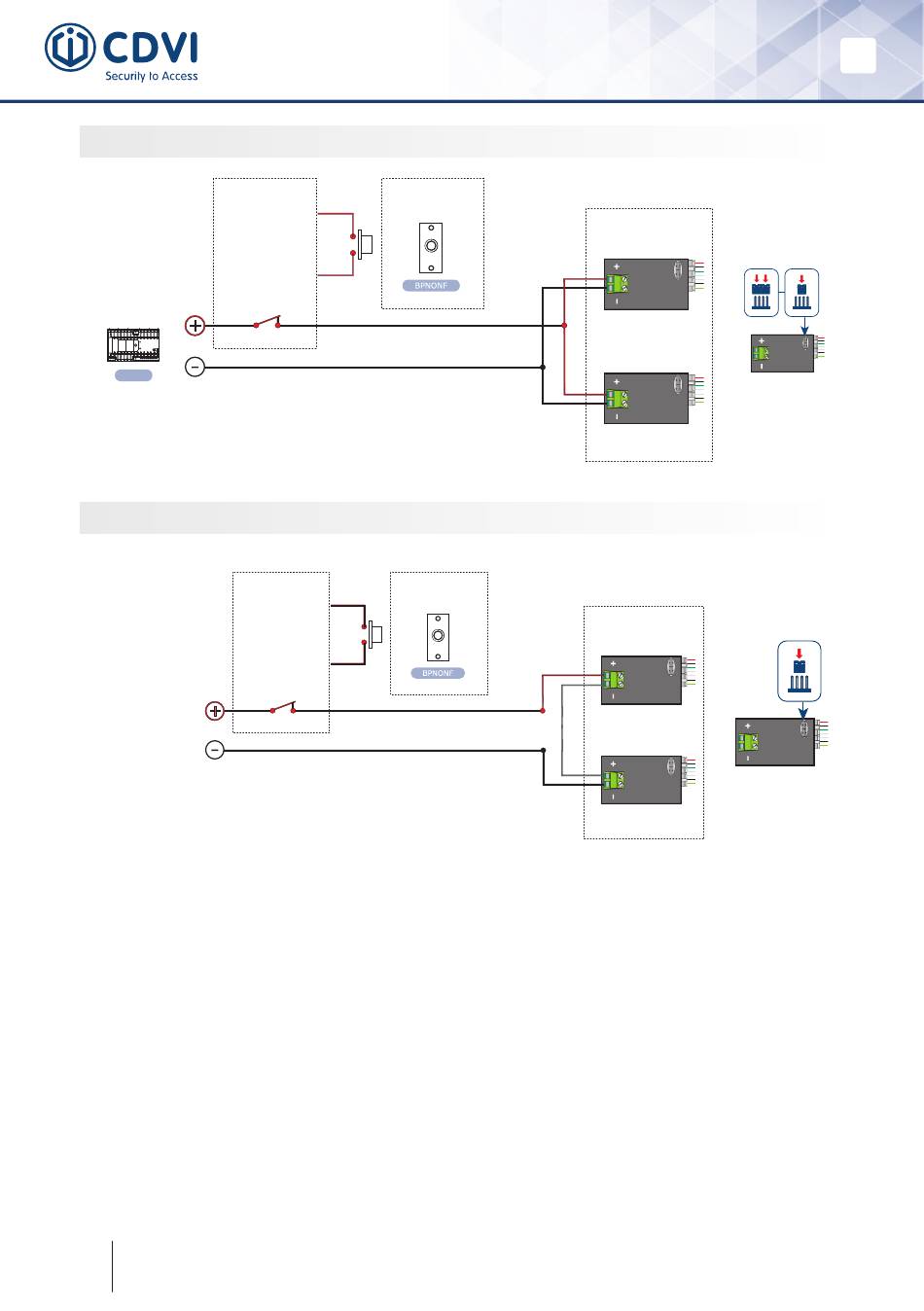

Example N°2: Access Control + Exit Button
Access
Control
Unit
Voltage 12Vdc
or 24Vdc
ADC
Example N°3: Access Control + Exit Button
Control
Input voltage:
48 V DC*
8
Exit
Button
BO600RP / BO600W RANGE
2 x 300KG magnetic locks
Exit Button
Access
Unit
BO600RP / BO600W RANGE
2 x 300KG magnetic locks
MAGNETIC LOCK
N°1
12Vdc
MAGNETIC LOCK
N°2
MAGNETIC LOCK
N°1
MAGNETIC LOCK
N°2
Input voltage: 48 Vdc.
Magnetic locks
connected in series.
EN
24Vdc
24 V DC
