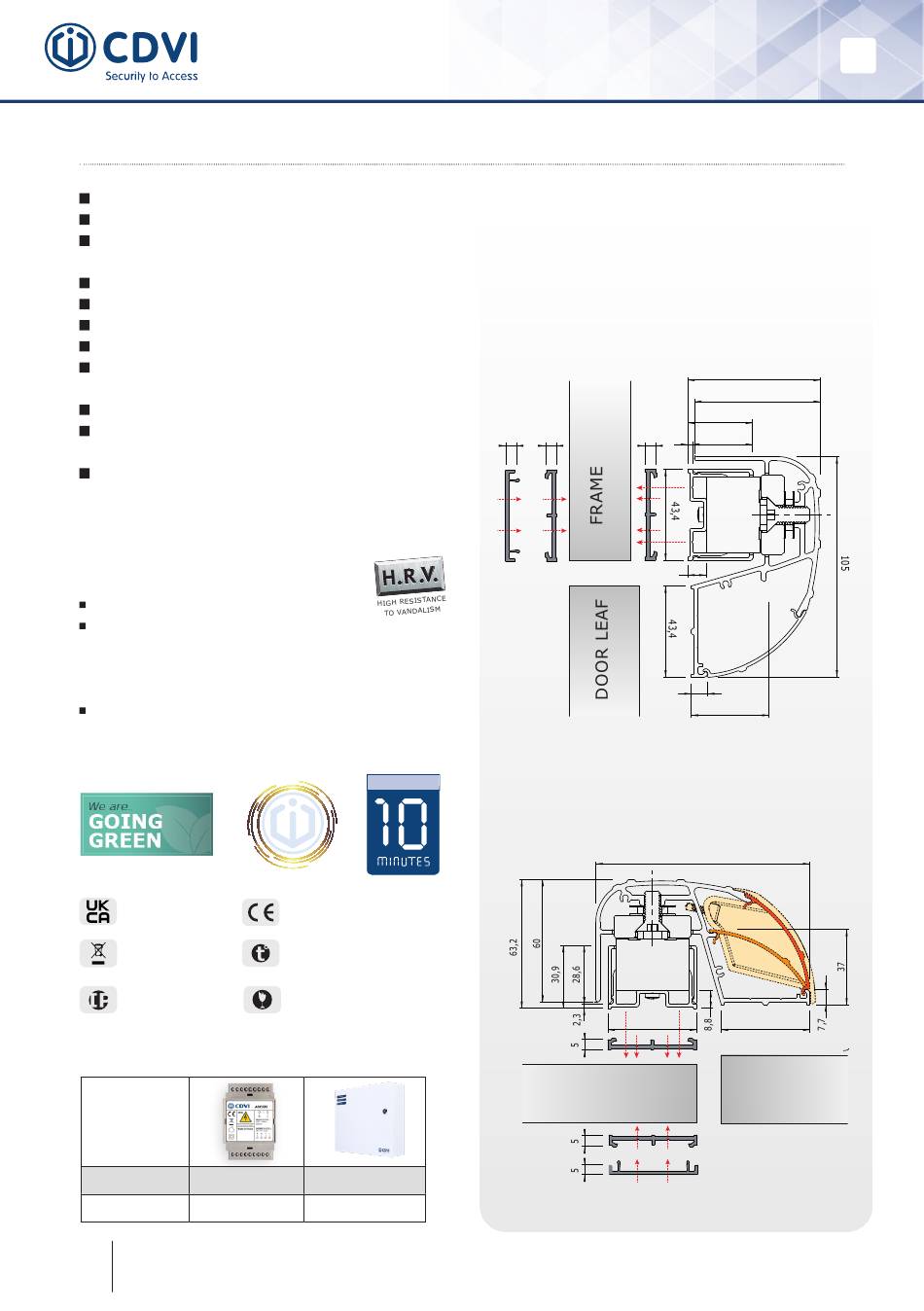

BO600RP/W/RH, BO900RP/W, P300RP/W, P600RP/W
Vertical & horizontal architectural handles
1] PRODUCT PRESENTATION
NFS 61-937, PV n° SD 20 00 25 B
Pre-assembled.
Covers previous installation
fixing holes.
Pre-drilled sections (adjustable).
Ergonomic design.
Satin Anodised Aluminium Finish.
Monitored, NO/NC
Suitable for metal, wood
and glass doors.
Ideal for retrofit applications.
Maglocks supplied with terminal
blocks.
Options: Aluminium rail spacers,
Aluminium cable tray, Installation on
glass door (UBKxx), RAL colour, Cutting.
(Contact us to determine the appropriate
options)
Input voltage: 12/24/48V dc.
Consumption:
- 12Vdc = 290mA (per maglock)/ 3.5W
- 24Vdc = 145mA (per maglock)/ 3.5W
- 48Vdc = 145mA (2 maglocks)/ 6.9W
Power of remote:
- 24Vdc = 0.4W
- 48Vdc = 0.4W
UKCA Certification
WEEE & RoHS
IP66
Recommended Power Supplies
Voltage Voltage
12V DC ADC335
24V DC 24V DC ADC324
2
MOUNTING
10
YEAR
WARRANTY
CE Certification
-40°C to +70°C
IK10
PSMB123
PSMB242
BO600RH, BO600RP,
BO900RP, P300RP, P600RP
Horizontal mounting
Left view
2,3
5 5 5
8,8
REO
ALMA
7,7
Vertical mounting
Top view
43,4
DOOR FRAME
FIXED LEAF
EN
63,2
60
30,9
28,6
37
105
43,4
REO
DOOR
OPENING
LEAF
ALMA
