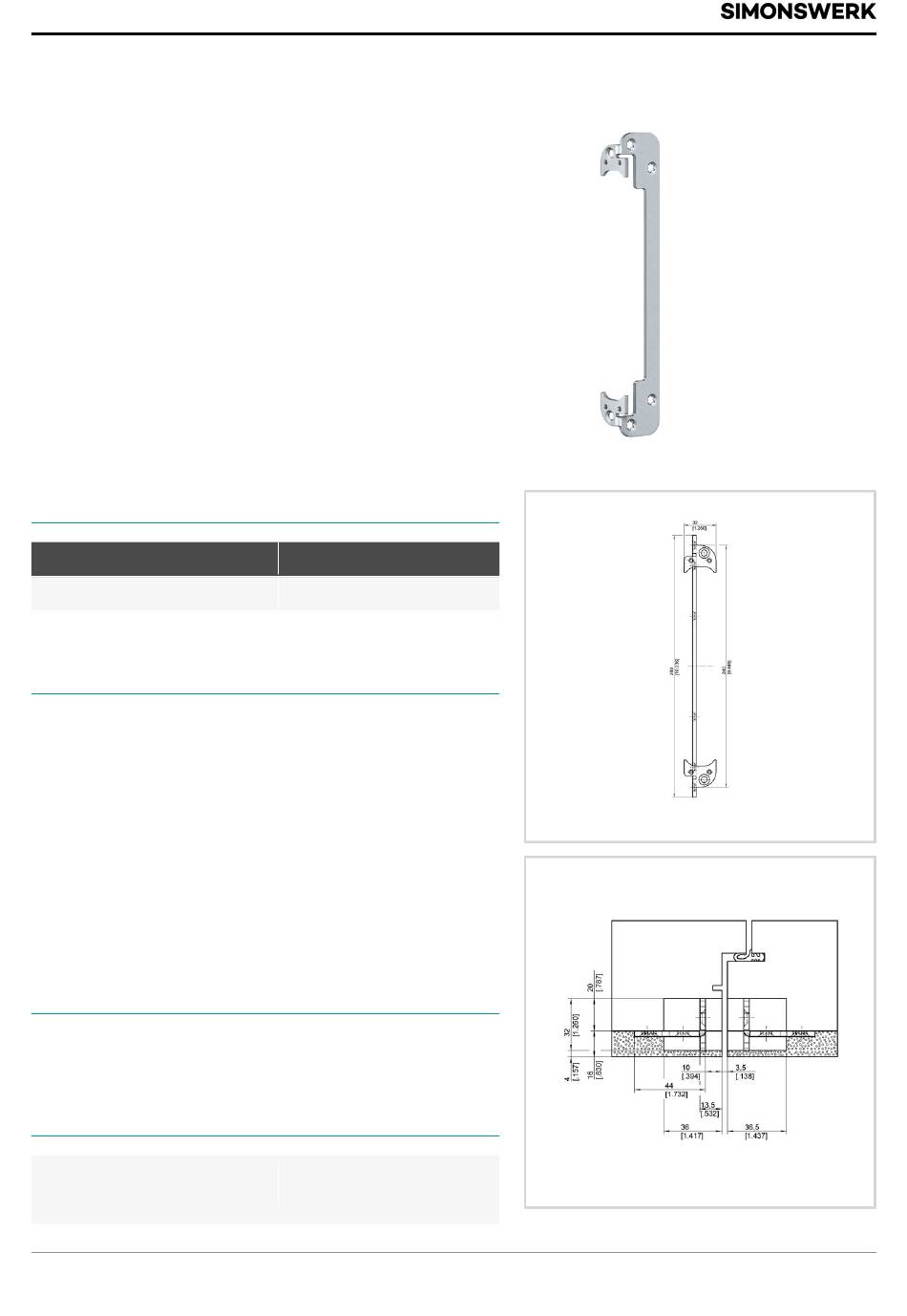

TECTUS - TE 640 3D BW/16
TE 640 3D BW/16
For heavy-duty doors with claddings up
to 16 mm (0.630") on both sides
Technical data
Property
Load capacity
Notes
The load capacity mentioned above refers to the use
of 2 hinges per door leaf with a height/width ratio of 2:1.
The cladding material where the hinge will be installed,
must be removed in order for the bracket to be
installed.
This bracket can be used for doors with standard
cladding thickness of 5/8" on both sides.
Combinations
TE 640 3D
Item versions
Finish
09.05.2025 © SIMONSWERK GmbH
Despite the utmost care taken in the preparation of this data sheet, we cannot accept any liability for printing errors
or mistakes.
Value
120.0 kg (264.0 lbs.)
blue galvanized (SW
010)
front view
cross section 1
