TECTUS - TE 640 3D
Notes
The load capacity mentioned above refers to the use
of 2 hinges per door leaf with a height/width ratio of 2:1.
For a minimum door panel thickness of 40 mm (1-5/8").
For fire rated doors: Check with door manufacturer
regarding the usage of additional required intumescent
material.
Square-corner cover plates are available upon request.
The load capacity shall be reduced by 20% when
installed in combination with a door closer.
Alternatively, the routing can be carried out with a
cutter diameter of 3/4" and a collar ring diameter of 1"
for imperial templates.
Installation tools
Universal milling frame
Template 5 250659 5
Template 5 250689 5
Template 5 251062 5
Template 5 251063 5
Combinations
TE 640 3D FZ
TE 640 3D BW/16
TE 640 3D BW/20
TE 640 3D SZ
TE 640 3D ST
Function range
Forced Entry
Fire Resistant
30.04.2025 © SIMONSWERK GmbH
Despite the utmost care taken in the preparation of this data sheet, we cannot accept any liability for printing errors
or mistakes.
24 mm router bit / 30 mm
collar ring (step 1)
24 mm router bit / 30 mm
collar ring (step 2)
3/4" router bit / 1" collar
ring (step 1)
3/4" router bit / 1" collar
ring (step 2)
Smoke Resistant

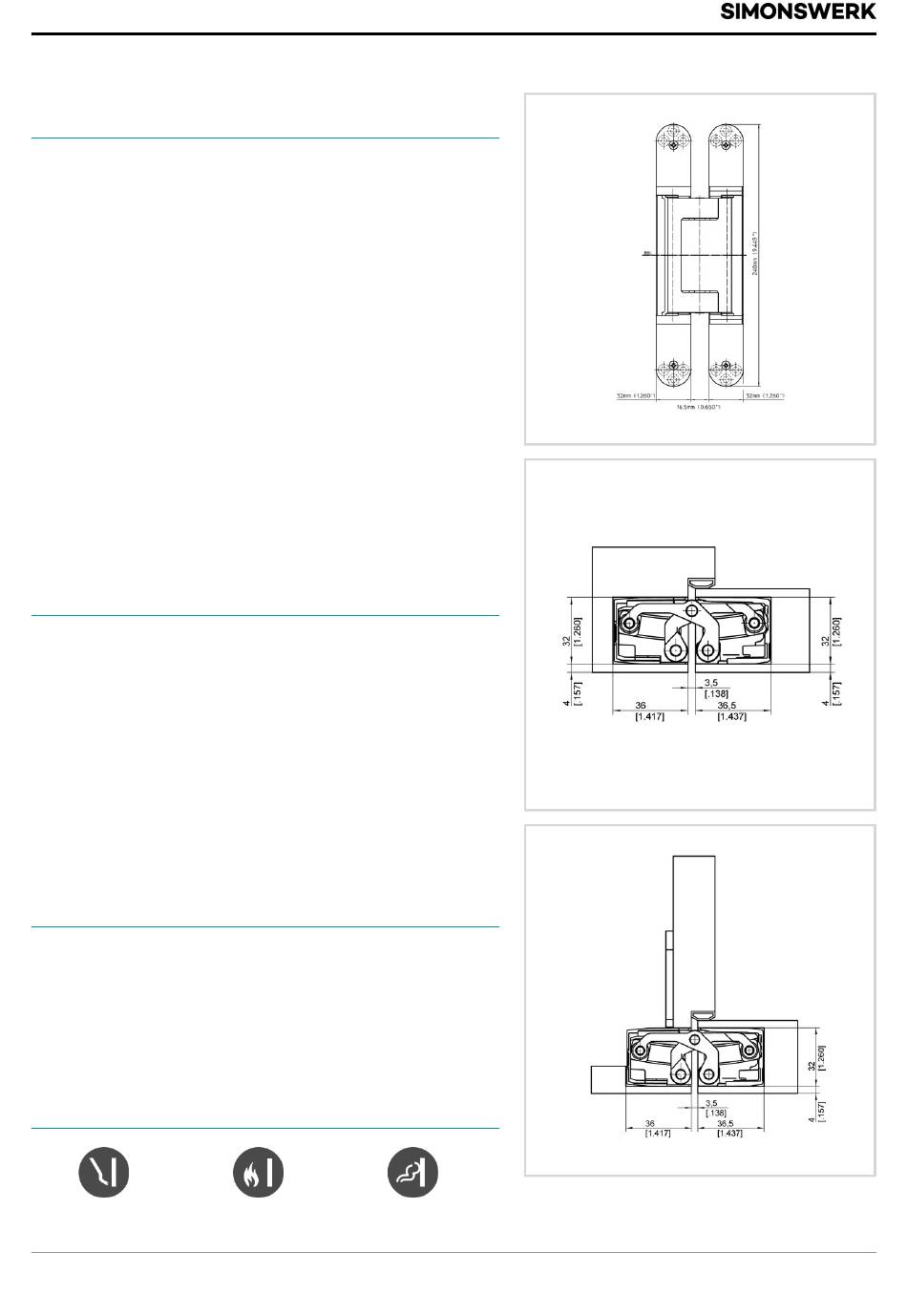

front view
commercial wood frame
casing wood frame
www.simonswerk.com
