TECTUS - TE 640 3D Energy Kit
No of wires
Max. current
Notes
The load capacity mentioned above refers to the use
of 2 hinges per door leaf with a height/width ratio of 2:1.
For a minimum door panel thickness of 40 mm (1-5/8").
For fire rated doors: Check with door manufacturer
regarding the usage of additional required intumescent
material.
Square-corner cover plates are available upon request.
Kit includes two 3 m (118.110") round cables.
Alternatively, the routing can be carried out with a
cutter diameter of 3/4" and a collar ring diameter of 1"
for imperial templates.
Installation tools
Universal milling frame
Template 5 250659 5
Template 5 250689 5
Template 5 250939 5
Template 5 251062 5
Template 5 251063 5
Template 5 251082 5
Combinations
TE 640 3D FZ
TE 640 3D SZ
TE 640 3D ST
Adapter 1 TECTUS Energy
08.05.2025 © SIMONSWERK GmbH
Despite the utmost care taken in the preparation of this data sheet, we cannot accept any liability for printing errors
or mistakes.
16
0.8 A
24 mm router bit / 30 mm
collar ring (step 1)
24 mm router bit / 30 mm
collar ring (step 2)
flat line routing Energy
3/4" router bit / 1" collar
ring (step 1)
3/4" router bit / 1" collar
ring (step 2)
3/4" router bit / 1" collar
ring (flat line routing
Energy)

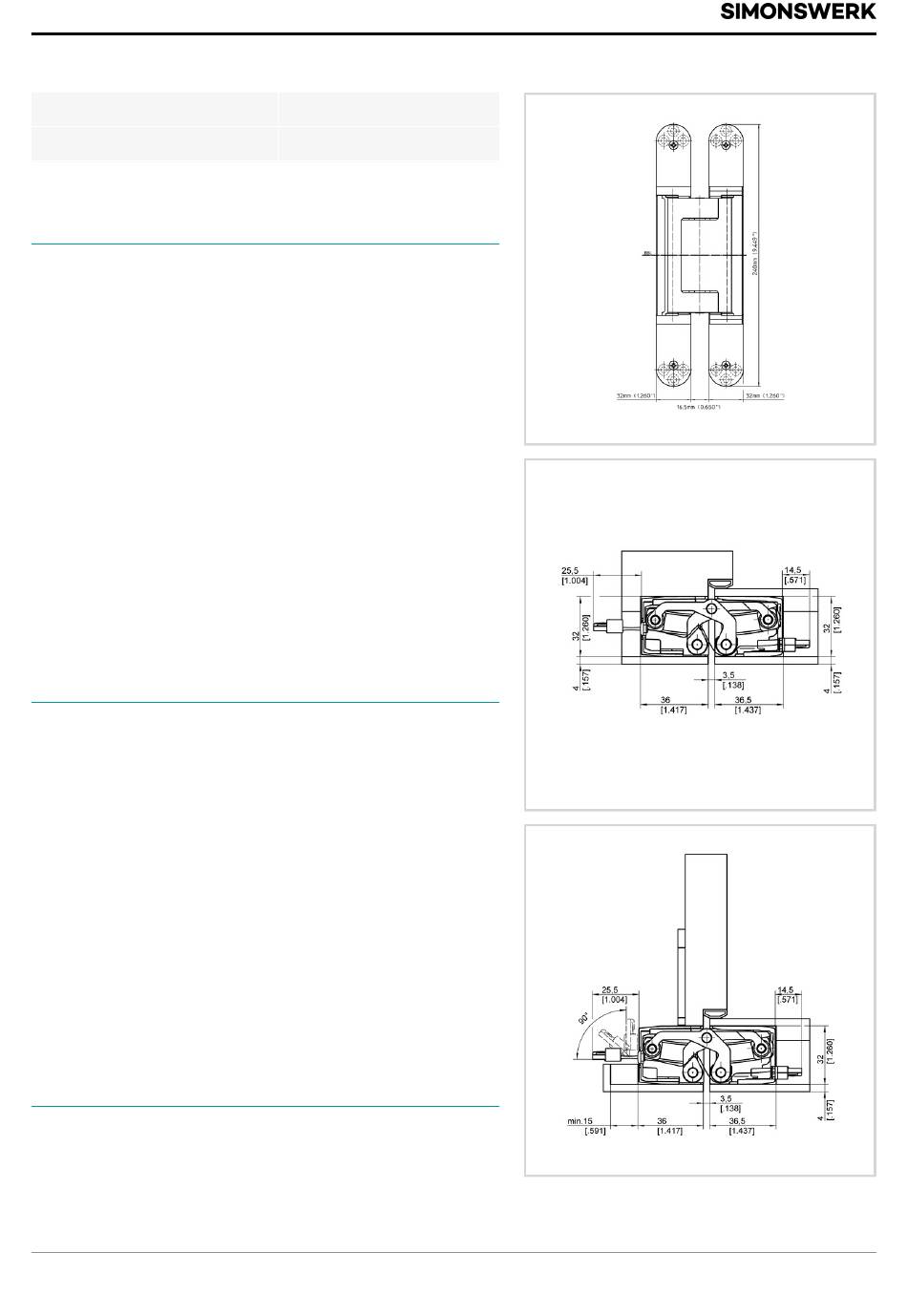

front view
commercial wood frame
casing wood frame
www.simonswerk.com
