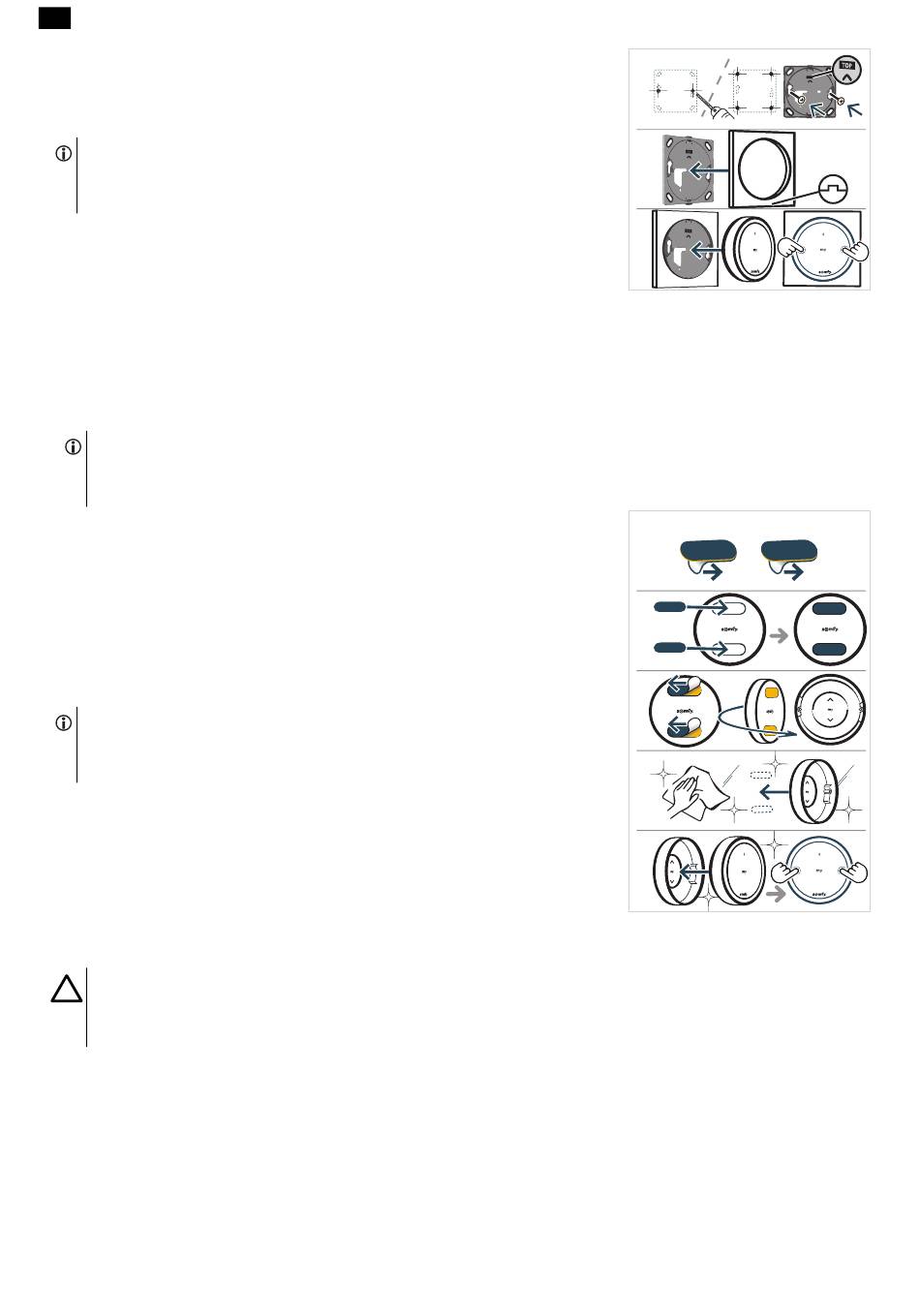

1] Fix the black mounting plate using screws appropriate for hole size and wall

type, following the orientation shown on the front panel.

2] First clip the square frame onto the black mounting plate.

NOTICE

Make sure Amy 1 io is switched on before clipping the module (refer to Switching

on Amy 1 io).

3] Clip the Amy 1 io module onto the black mounting plate through square

frame. Press firmly on the front of the module, on the right and left near the

my button as close as possible to the translucent circle without pressing on

the edges of the module (to avoid unwanted radio transmission), until it clicks

into place.

2.5.2.Wall mounting with circular back cover

2.5.2.1. Using double-sided tapes

NOTICE

The product is designed to be fixed to most wall surfaces, such as paint, wallpaper, earthenware, wood, varnished

wood, primer/coating. However the walls must be flat and clean.

1] Remove the protective films from the double-sided tapes.

2] Take the provided circular back cover and stick the double-sided tapes on its

back.

3] Remove the second protective films from the double-sided tapes already

sticked.

4] Following the orientation indicated inside the circular back cover, press it on a

flat, clean, and dry surface. Make sure it is firmly fastened to the surface.

NOTICE

Make sure Amy 1 io is switched on before clipping the module (refer to Switching

on Amy 1 io).

5] Clip the Amy 1 io module onto the circular back cover. Press firmly on the

front of the module, on the right and left near the my button as close as

possible to the translucent circle without pressing on the edges of the module

(to avoid unwanted radio transmission), until it clicks into place.

2.5.2.2. Using screws

CAUTION

• Do not use an electric screwdriver.

• The order of assembly must be followed to ensure that the parts fit together correctly and don't get damaged.
