IKAR ASS-1 Manuel D'instructions page 30

1
2.
Similar to illustration

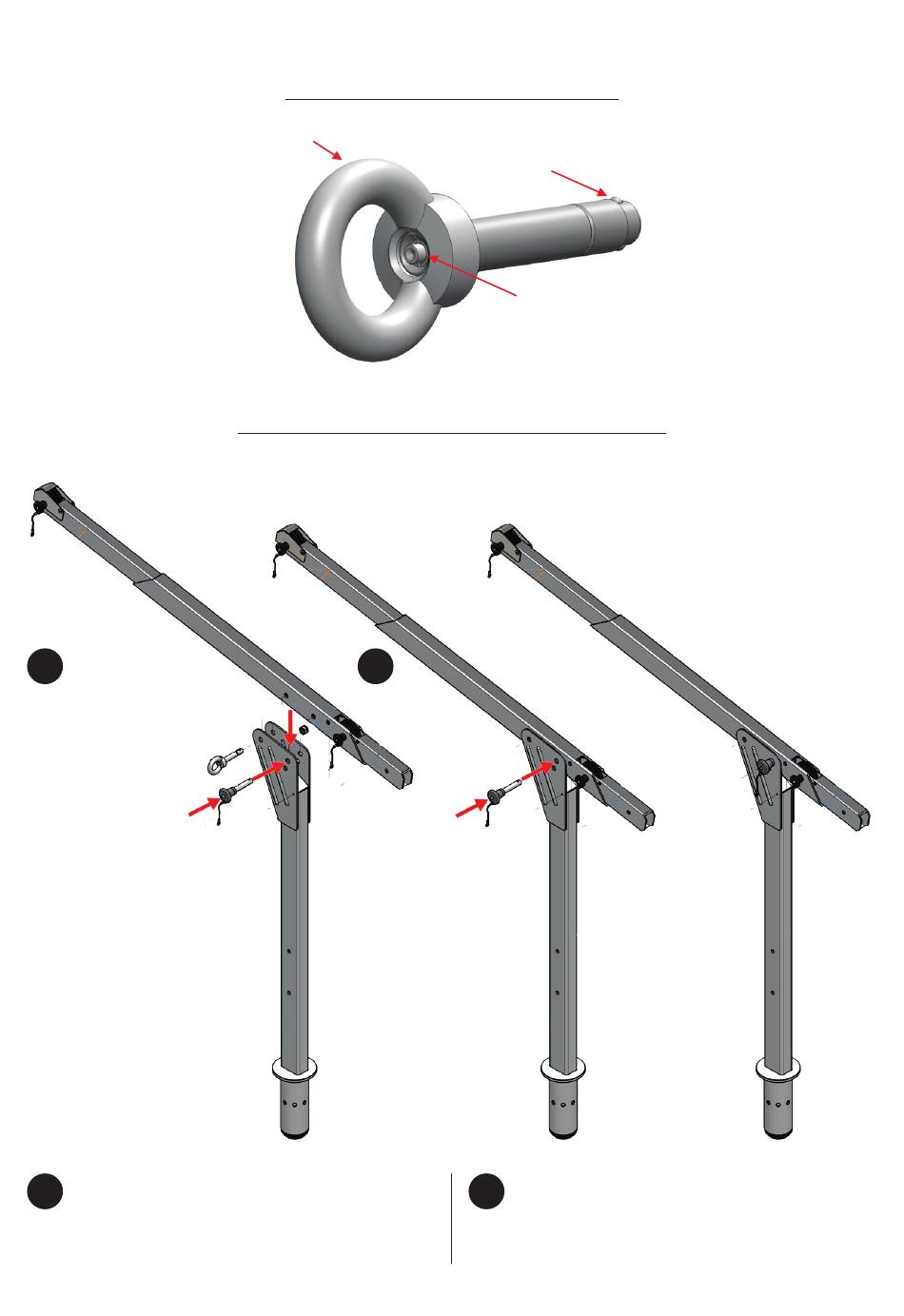

Place the upper arm of the boom between the joint plates
1
of the lower arm and secure it by inserting the locking pin
into the rear row of holes. To do this, release the locking pin by
pressing it.
ENGLISH
Components of the Anchorage Point
Anschlagpunkt
Anchorage Point
Assembly Upper Arm - Preparing for Operation
2
1.
1.
3.
Locking Mechanism Arretiermechanismus
Locking Pin Arretierbolzen
2.
1.
Press in the locking pin of the anchorage point and slide
2
the anchorage point into the front row of holes up to the
start of the thread of the locking pin nut.
