processes, in the premises.
The permitted limiting values for noise
levels may also vary between different
countries. It is incumbent on the user to
assess any risks.

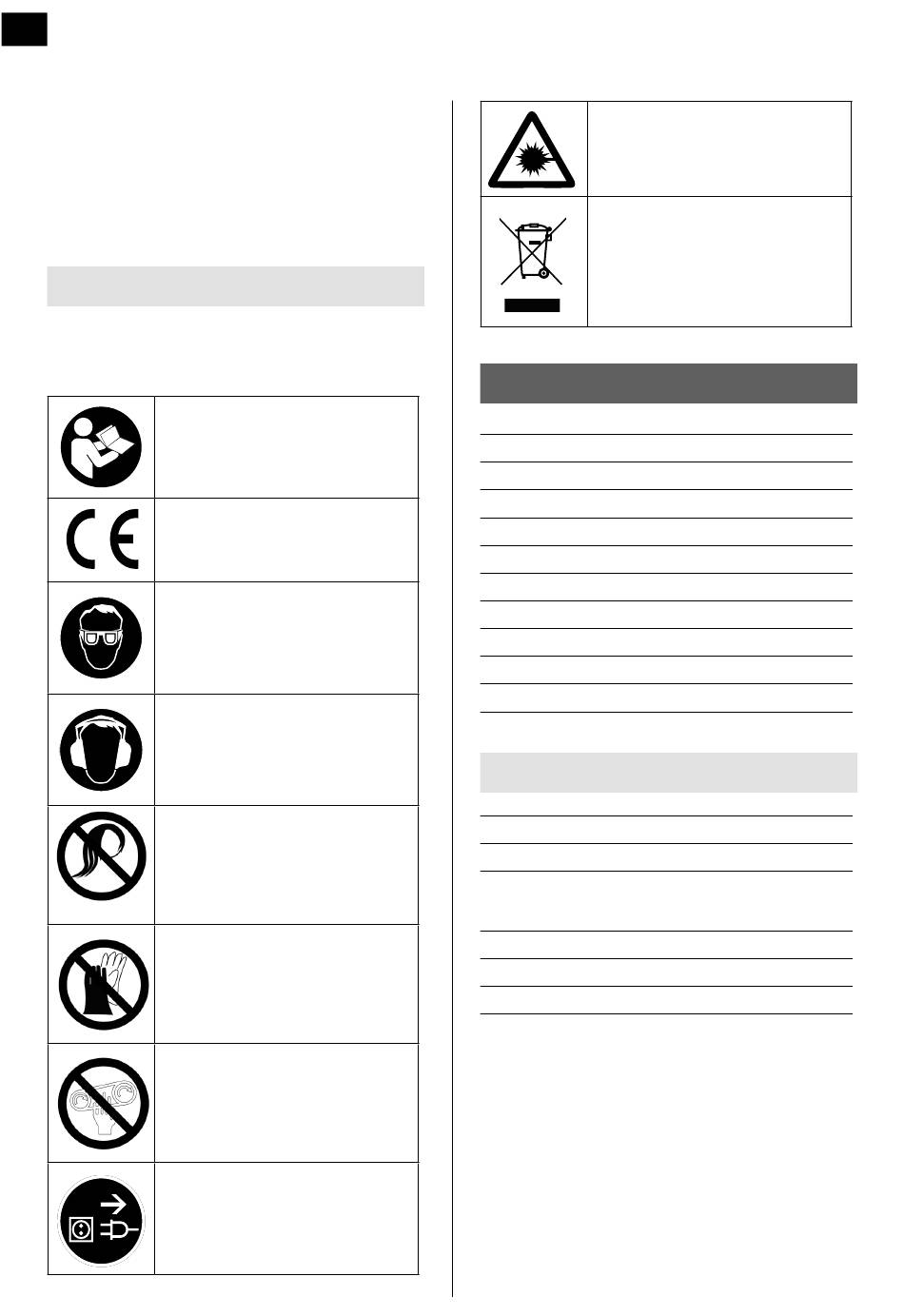

Symbols
The symbols below provide information on how
the power tool should be used. Make sure you
understand the symbols and their significance.
Read the instructions.
Approved in accordance with
the relevant EU directives.
Wear safety glasses.
Wear ear protection.
Wear a hair net if
you have long hair.
Do NOT wear gloves.
Risk of personal injury –
rotating parts.
Disconnect immediately from
the mains if the power cord is
damaged or cut.
56
WARNING: Laser. Do not look
into the laser beam – risk of
permanent eye damage.
Recycle as electrical waste.
TECHNICAL DATA
Rated voltage
Motor capacity
Motor speed
Mode
Spindle speed (5 stage)*
Sound pressure level, L P A
Sound power level, L w A
Chuck mount
Chuck, shank diameter
Max. drill depth
Column diameter
Table
Size
Pendulum angle
Turning angle
Max gap between:
Chuck and table
Chuck and base plate
Size (L x W x H)
Weight
* 520/950/1220/1650/2500 rpm.
Always wear ear protection.
The declared values for vibration and noise,
which have been measured by a standardised
test method, can be used to compare different
tools with each other and for a preliminary
assessment of exposure. The measurement
values have been determined in accordance
with EN ISO 3746, EN ISO 11202.
230 V ~ 50 Hz
500 W
1490 rpm
S2 15 min
520 – 2500 rpm
62 dB(A), K=3 dB
75 dB(A), K=3 dB
B16
1.5 – 16.0 mm
50 mm
46 mm
162 x 158 mm
– 45° / 0° / 45°
360°
175 mm
260 mm
445 x 225 x 590 mm
15.5 kg
