Installation Space Dimensions
2

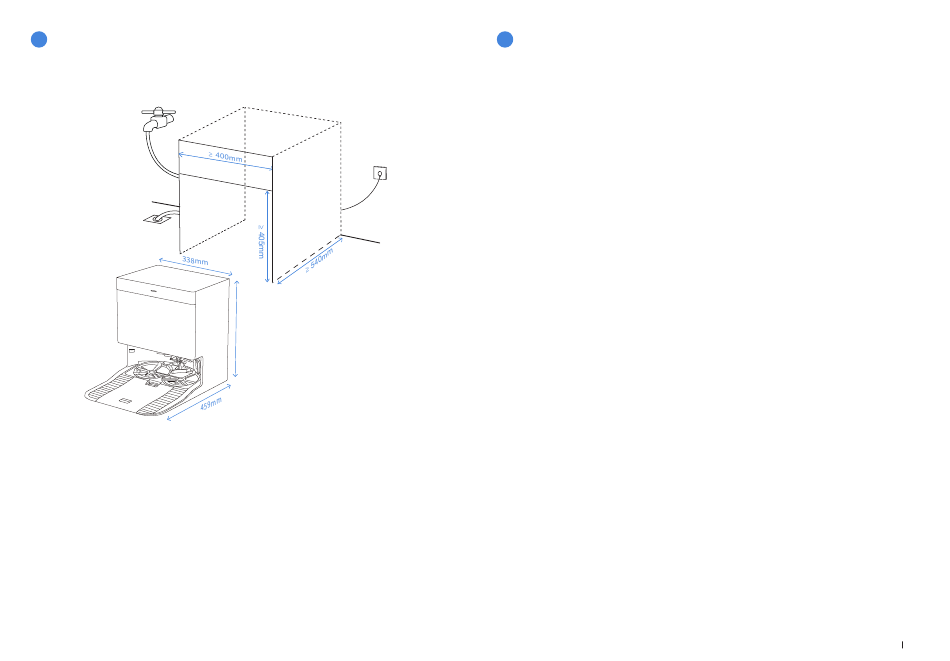

Width ≥ 400 mm, Height ≥ 405 mm, Depth ≥ 540 mm
Note:
• Please purchase and use 3/8'' pipe that fits for the drain outlet of the Station to avoid leaks
caused by drainage pressure shifting the drainage pipe.
• If a floor drain is used, make sure it is located on either side of the Station, instead of directly
under it or behind it.
390mm
Quick Start
3
Before using, please remove all protective materials from the robot and OMNI
Station.
1. Scan the QR code on the Water Refill/ Drain installation kit
accessory list card that comes along in the packaging to watch
the video of installation guide.
2. Installation Guide
(1) Preparation before Installation
① Tools Required
Before you start, make sure you have the following tools prepared: an
adjustable wrench, a utility knife, a tape measure, a screwdriver, and a
towel to wipe off water that may come from a leak or spill.
② Prerequisites for Installation
Also, please confirm that a three-hole socket, a drainage outlet, and a
3/8 water supply pipe outlet are available at the installation location.
(2) Components Inspection
① Unpack the Kit
Open the kit and take out all components from the packaging.
② Check the Components
Cross-verify with the manual and the installation kit accessory list that
comes along in the packaging to ensure all parts are present before you
proceed.
(3) T-joint Connector Installation
Note: Installation depth of the quick connection of the T-joint connector
is 20 mm. Please make sure it is connected properly.
Installation of Clean Water T-joint Connector to 3/8 Inch Water
Supply Pipe
Exclusive Water Supply to the Station
13 EN
