This range hood is equipped standard with a 8" round vertical duct option. To convert from 8" round vertical to 8"
round horizontal ducting or 3-1/4" x 10" rectangular horizontal ducting please following the instructions below.
NOTE: Horizontal ducting is only available for the single internal blower.
NOTE: If horizontally ducting via 3 1/4" x 10" rectangular ducting, the maximum airfl ow of 650 CFM will
be reduced to 550 CFM. Other CFM levels will not be affected.

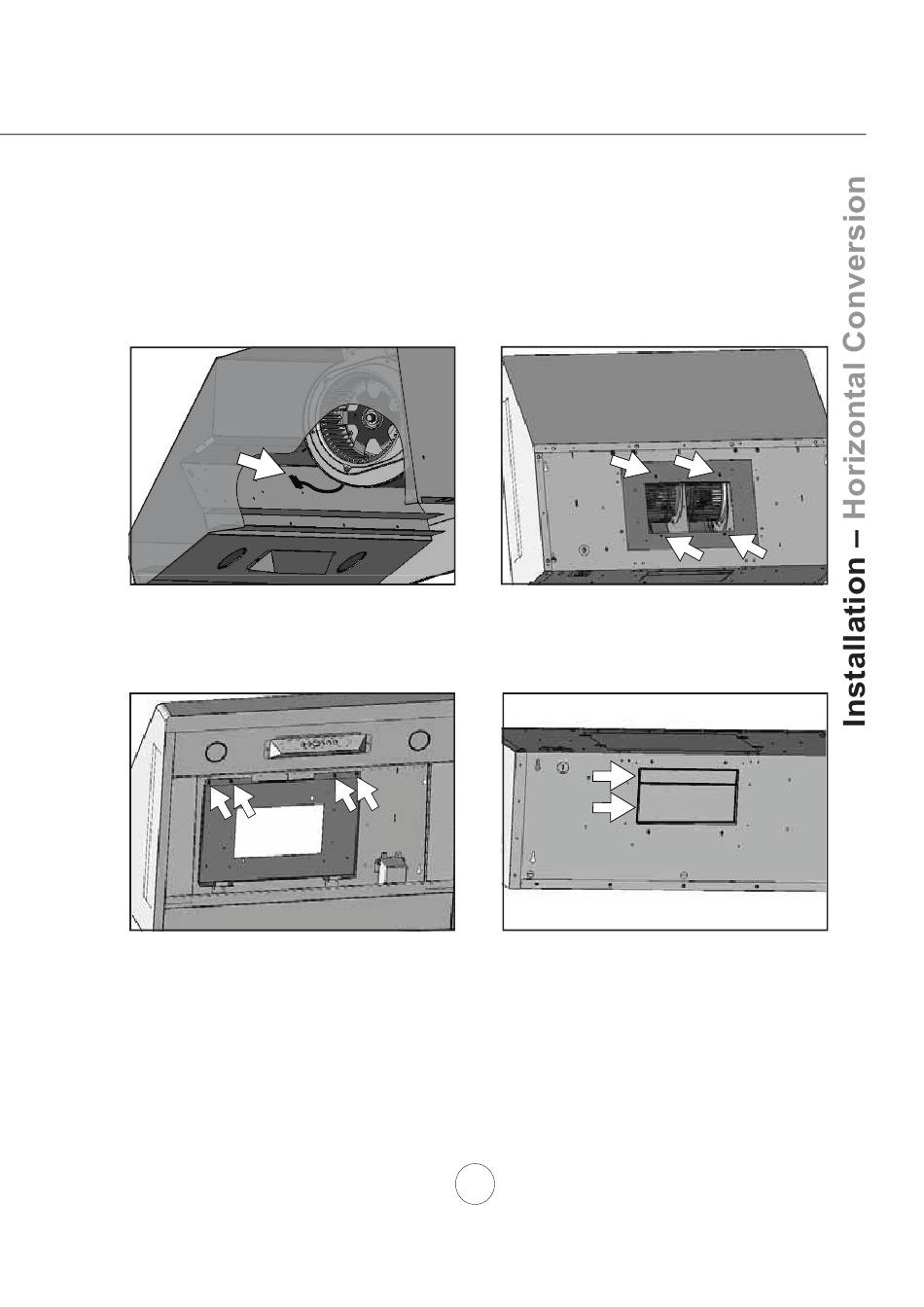

VERTICAL TO HORIZONTAL DUCTING CONVERSION
1. Disconnect blower plug.
3. Remove (4) screws from interior of hood body
attaching blower plate to hood body. Remove
blower plate.
All manuals and user guides at all-guides.com
11
2. Remove (4) screws at top of hood body attaching
blower to blower plate. Remove blower from
interior of hood body.
A
B
4. Knock out rear plates A & B for 8" round
rear ducting or plate B only for 3 1/4" x 10"
rectangular rear ducting.
